The updated led strip of APA102/APA107–HD107S

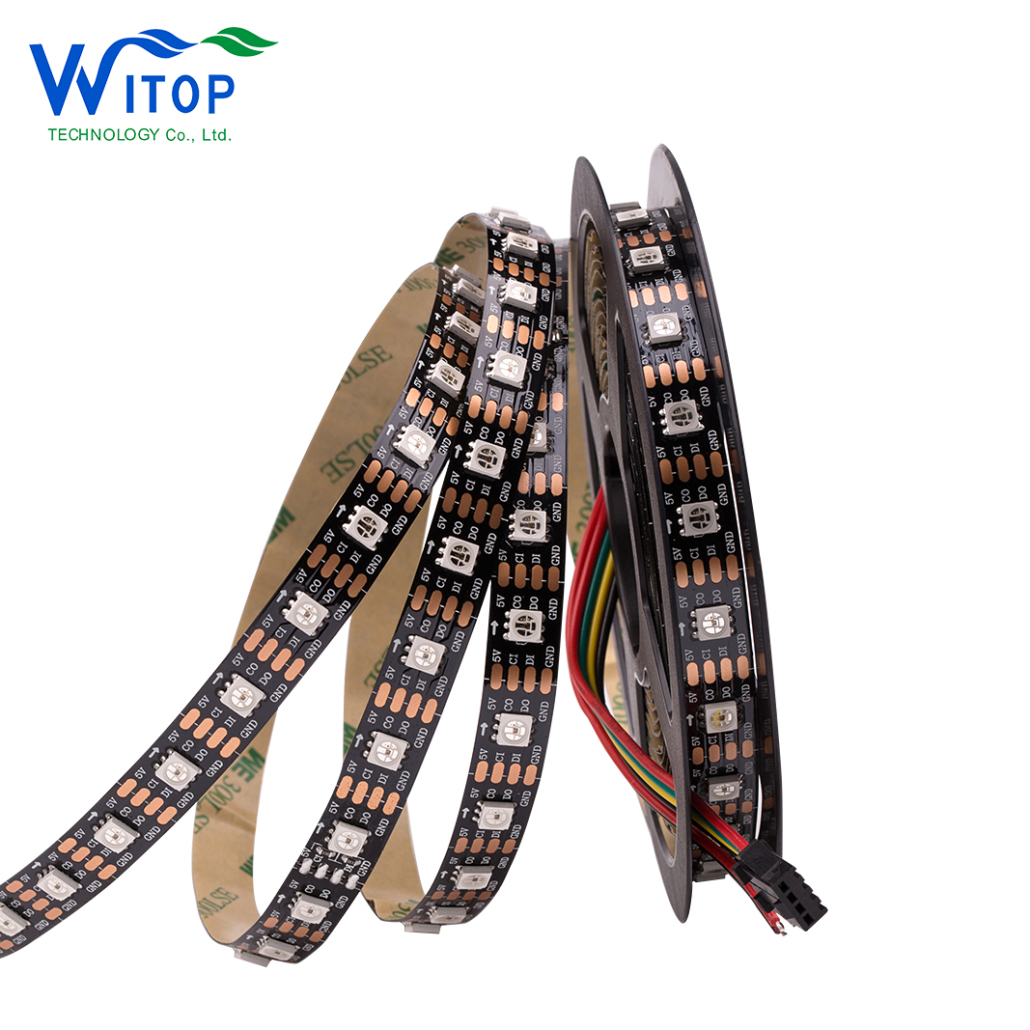

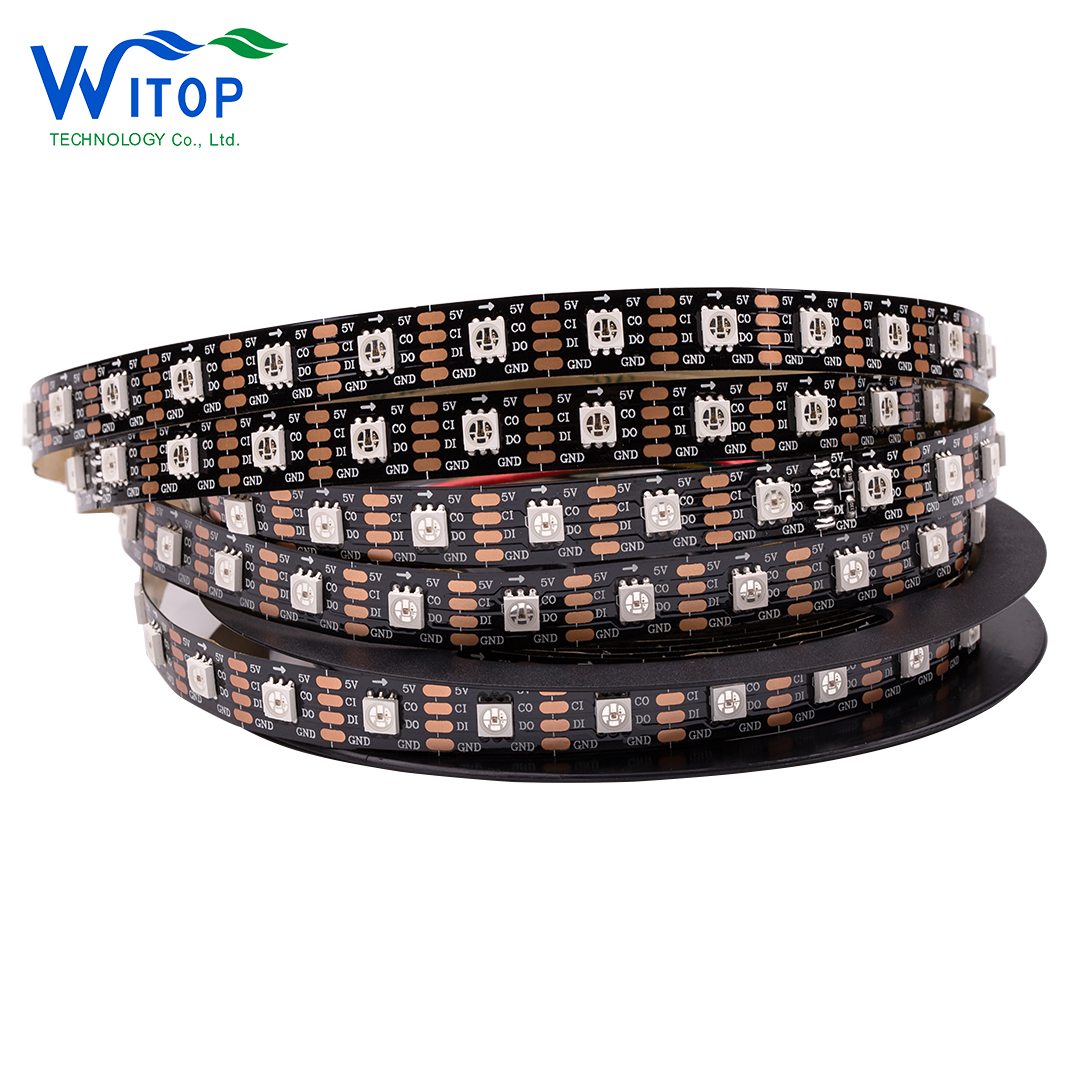

HD107/HD107S LED STRIP
- HD107S is the updated and replacement of APA107 and APA102.
- The fastest digital RGB pixel led chip HD107S with PWM refresh rate 27kHZ and transmission rate 40MHZ.
Product Details
Features
- PWM refresh rate:27kHz, (apa102 with PWM frequency20KHZ,apa107with9KHz,sk9822 with 4.7kHZ,sk6812/ws2811 with 800HZ only)
- HD107s with 40M bps transmission speeed(apa102 has 20M bps, sk9822 has 2M bps ,sk6812/ws2812B has 800K bps only)
- HD107S with Date Rate 40MHZ( Oscillator Frequency)
- HD107S LED with less voltage drop and one roll(5meters)can be powered with one power input without color difference, so the 5m long voltage drop problem is solved
- The HD107s LED is low consumptionand high energy saving ,(with Built-in dormancy Mode inside)
- The HD107sled lights up looks like linear lighting ,large lighting beam
- CLK+Data double wire transfer.
Dimension
Specifications
1 meter led strip Specifications
| Model | HD107S | Led Type | 5050 RGB Full Color |
| Led QTY | 60leds/M | Pixel Type | HD107S,the upgrade of APA107 |
| IC QTY | 60pcs/M | Voltage | DC5V |
| Power | 14.4W/M | PCB Width | 10mm |
| PCB Color | White/Black | Package | Standard 5M as a roll |
| Waterproof | IP20/IP65/IP67/IP68 | Installation | 3M Glue tape |
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
