Digital Full color LED Panel

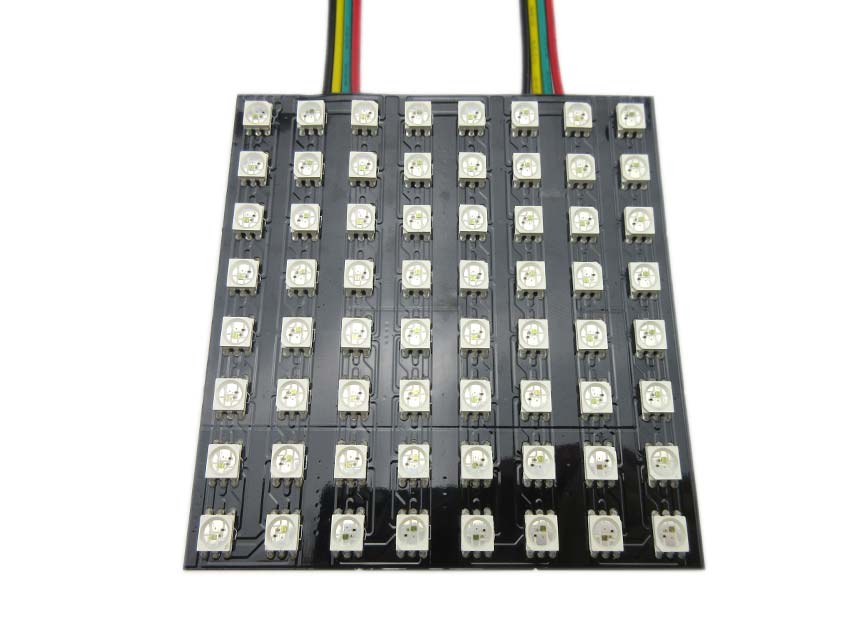

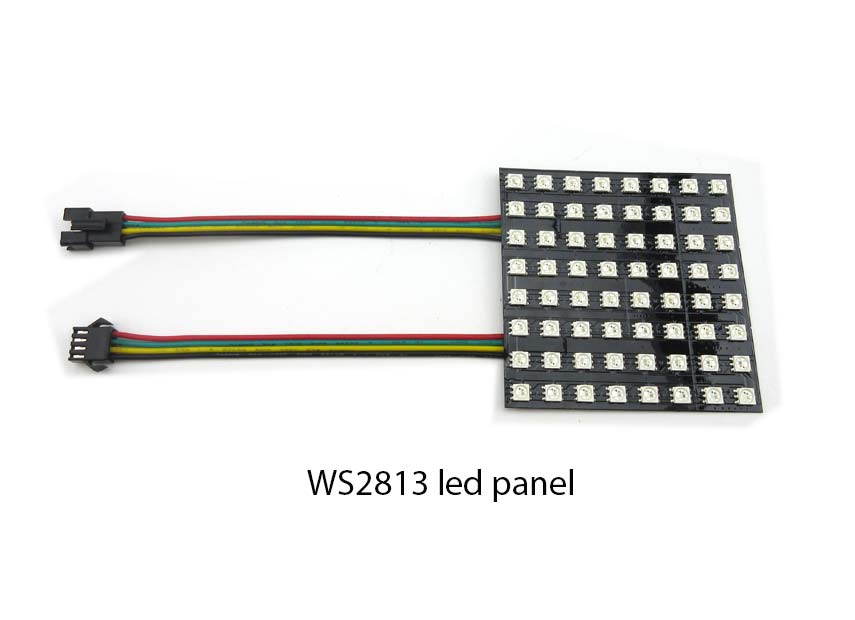

WS2813 Addressable 8*8 LED Panel
- Features

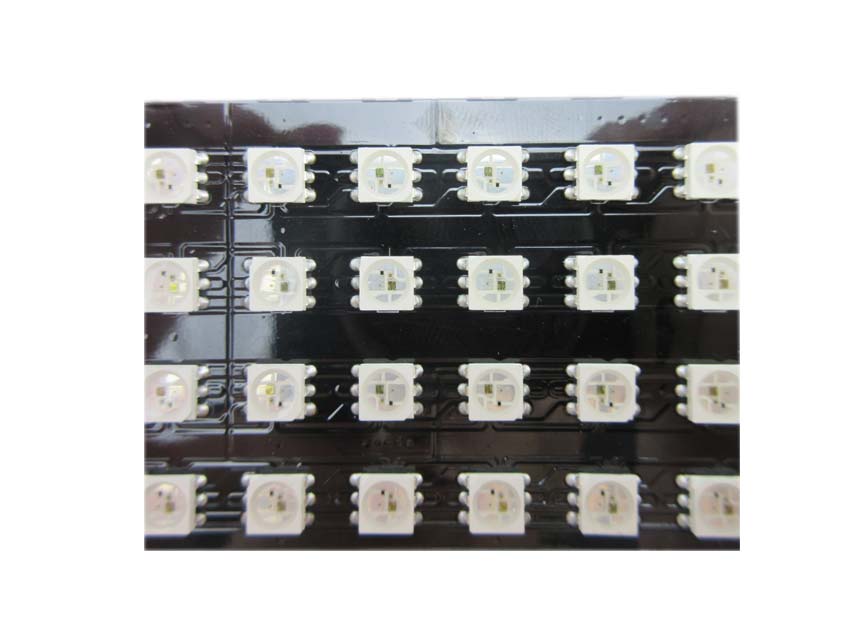

1-WS2813 4 Pin LED installed .8*8Pixel.
2-Only Black PCB Color,flexible PCB that can be gently bent and curred afound surface.
3-DC5V inputted, donnot exceed DC6V or short circuit,nopolarity prodect.

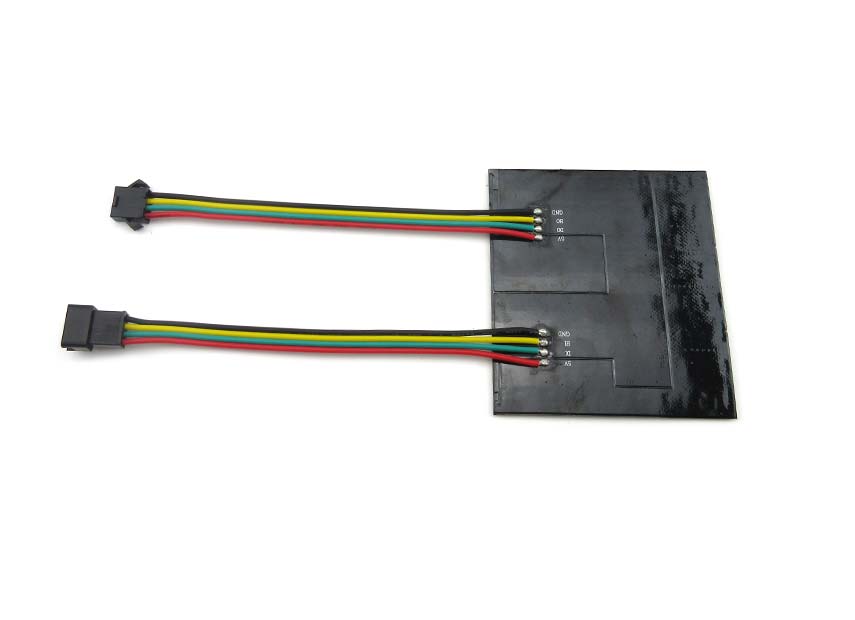

4-4Pin JST sm connector soldered 2 extra wire for powering
5-Nowaterproof IP62
6-Controller:SD controller,micro controller such as Arduino
7- being able to individually control each LED.
Share This Product
Product Details
Features
1. ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.
2. One WS2813 IC control ONE LED Chip;
3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
4. With 4pin LED lamps for the digital strip
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
6. This is the highest resolution for the moment
7. Controller, Power supply are available
8. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
9. Low voltage DC power supply safety, Convenience.
Specifications
The LED Matrix are placed 32 Pixels each line, and there are 8 lines on each panel. The space between each pixel is 1cm.
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
