All White Printing CS6816–Customized

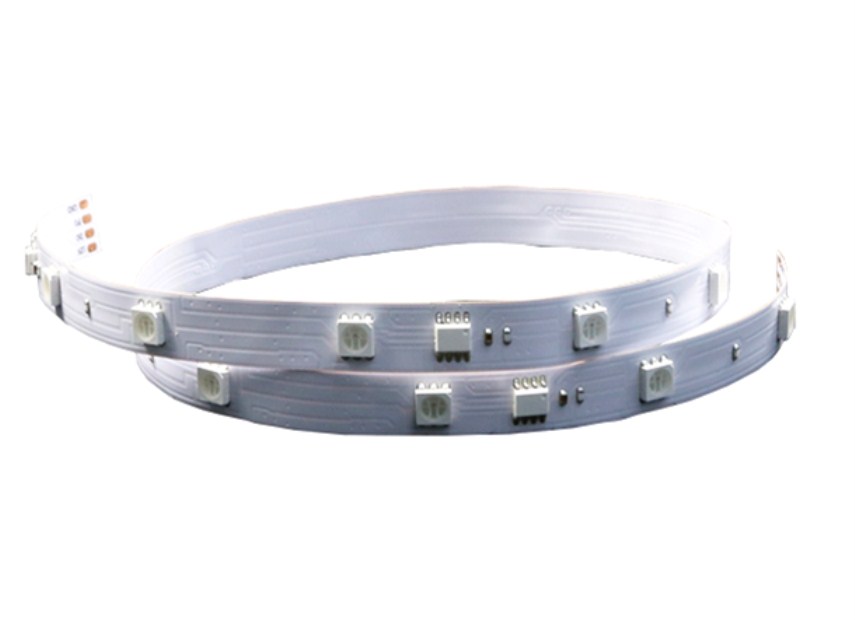

CS6816 All White LED STRIP
- CS6816 use high brightness SMD5050 RGB chip and CS6816 IC driver outside,which is the breakpiont IC driver and can reach addressable and digital programme effect.
- CS6816 all white printing,SMD5050 White face chip+White Color CS6816 IC driver.
- CS6816 use the flexible PCB,can make the shape you want,3leds per cutting.
- CS6816 can use the controller to achieve the running,flash ect, effect.
- CS6816 use the DC12V low power supply,more safe.
Share This Product
Product Details
Features
- Customized All White Printing strip and all printing in the backside.
- White color CS6816 IC driver built-out+White color SMD5050 RGB.
- Addressable digital programme,Breakpiont CS6816,no chip broken other chips can still work.
- Use DC12V to power supply, more safe on using.
- Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.

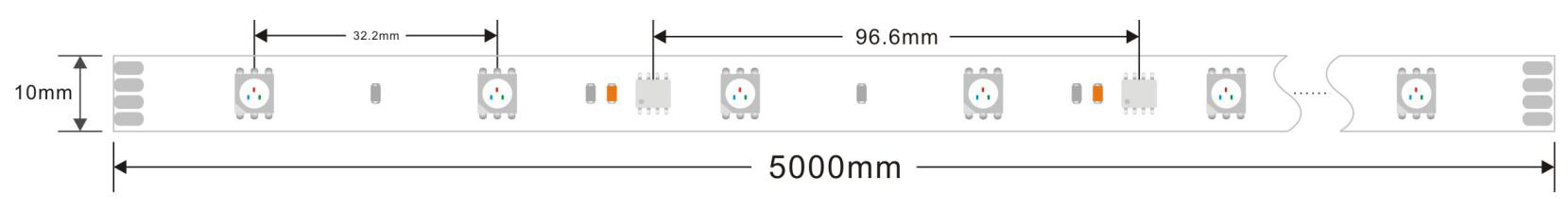

Dimension
CS6816 all white strip–30leds/M,10mm PCB width.
Specifications
1 meter led strip Specifications
| Model | CS6816-30leds/M |
| LED QTY | 30LEDs/M |
| LED Type | SMD5050 |
| Voltage | DC12V |
| Power | 7.2W/M |
| Feature | All White Printing,customized. |
| PCB Color | White |
| PCB Width | 10mm |
| Lumen | 420lm/m |
| Waterproof | IP20(No waterproof),IP65(Silicone Glue waterproof),IP67(Tube waterproof),IP68(Silicone Glue+Tube waterproof) |
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
