DC12V Addressable High Brightness SMD5050 LED Chip – CS8812B

DC12V Built-In IC LED Chip – CS8812B

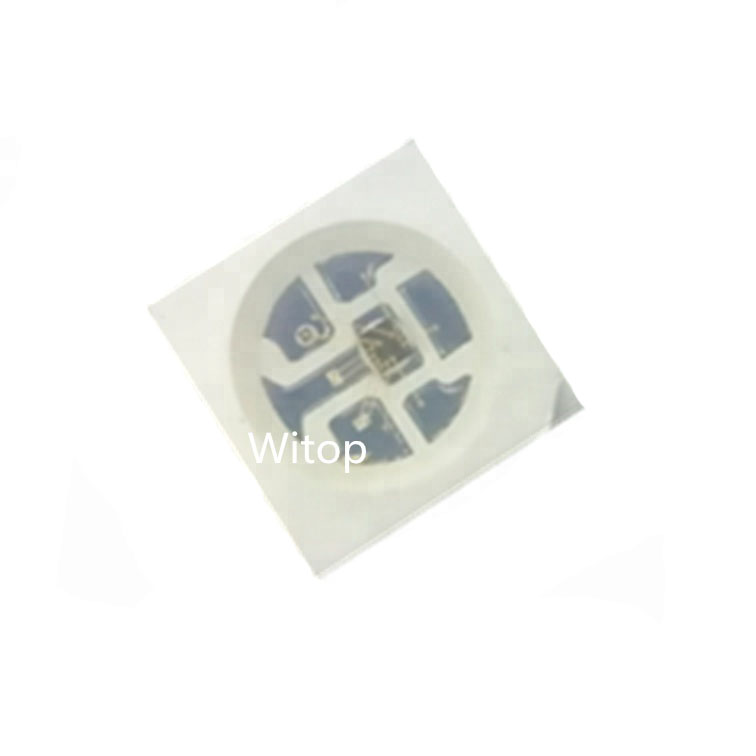

CS8812B led chip

CS8812 led chip can replace WS2815 led chip,1IC&1LED
1.CS8812 led chip have two version:version A is have itself original programme but version B not.
It is meaning,Version can run the programme when it connect power no need controller,but it only have 33 kinds simply effects.Version B need to connect the controller.
2.CS8812 is DC12V led chip,3 channel constant current led driver

Share This Product

Product Details

Features

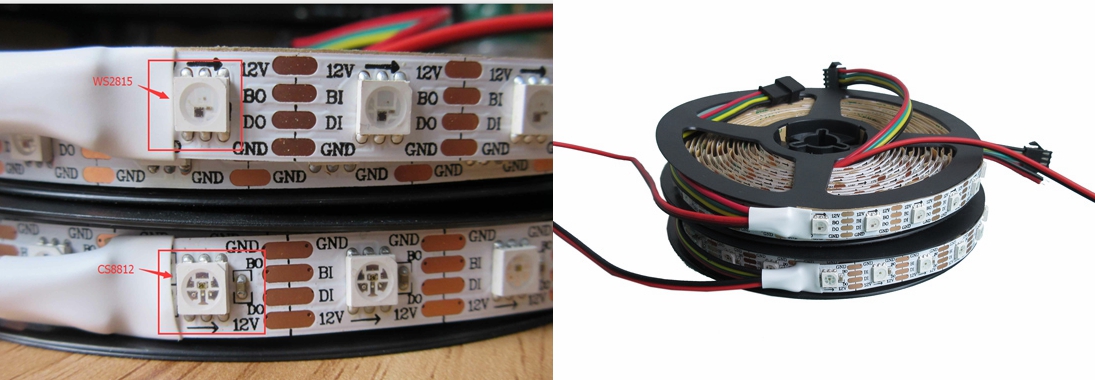

CS8812 WS2815

CS8812 led chip can replace WS2815 led chip,1IC&1LED
1.CS8812 led chip have two version:version A is have itself original programme but version B not.
It is meaning,Version can run the programme when it connect power no need controller,but it only have 33 kinds simply effects.Version B need to connect the controller.
2.CS8812 is DC12V led chip,3 channel constant current led driver

Specifications

1 meter led strip Specifications

Model	WTP-CS8812
Chip Type	SMD5050-RGB,Built-in IC
Voltage	DC12V
Power	0.24W
Current	18mA
Package	1000pcs/reel

Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.

Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time	light fades rate
500H	0%
1000H	0%
2000H	0.5%
4000H	1.2%
6000H	2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Applications

application

City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

Notes

Please read the specifications and precautions carefully before installation
Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
correct or not , so that avoid the product been burned
This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
