DMX Inside IC 12V Addressable LED Strip
CS512A1 Individually Addressable LED Strip
- In the market,we only know that the DMX512 is the IC Outside,and it can not individually addressable.But now Witop can make the DMX512 built-in IC,it is mean the same led have more pixels,and reach individually addressable,1 IC controller 1 led.
- DMX512 have 4 pins and 5 pins lines,and CS512A1 IC only have 4 pins:one Data line,one PI line and two power lines.CS512A1 is 16bit, 65536 high gray scale,high brightness ect.,with the controller, you can achieve monochrome, gradient, water , horse racing, text, numbers, chase, English, pictures, animations, video, any effection, and so on.
- CS512A1 is DC12V power supply,not the DC5V.
- CS512A1 LED Strip use the FPCB (flexible printed circuit board) to be assembly circuit boards, use SMD LED lights and components to be assembled, so that the thickness of the product only just like,Ocuppy a small space, and can be arbitrarily cut, FPC is soft material, can random winding, and wound freely movable in three-dimensional space without breaking, suitable for irregular place and narrow space of places to install, but also as any possible bending, suitable for advertising, decorative lighting, any combination of the kinds of patterns,LED Chip is built-in IC, then the components is less , pixels can be high, can make attractive appearance, and so on.
Share This Product
Product Details
Features
- New product:CS512A1 Individually Addressable led strip and full color,digital programme.
- CS512A1 LED Driver is 16 bit,65536 high gray scale.
- CS512A1 have more pixels than DMX512.Also,Individually Control–1IC & 1LED.
- Use DC12V to power supply, more safe on usin.
- Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.
Dimension

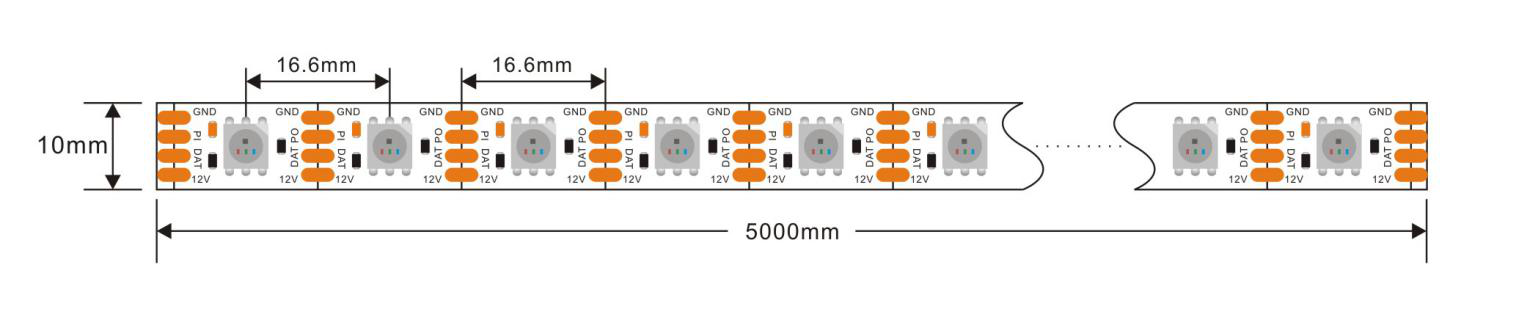

PCB Width is 10mm,60leds/M.
Specifications
1 meter led strip Specifications
|
Model number
|
WTP-CS512A1RGB-60leds/M
|
||
|
LED TYPE
|
SMD5050 | ||
|
LM
|
840lm/M
|
||
|
LED QTY
|
60LEDS/M
|
||
|
PCB Color
|
White
|
||
|
PCB Width
|
12mm
|
||
|
POWER
|
14.4W/M
|
||
|
Voltage
|
DC12V
|
||
|
Installation
|
With 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20:non-waterproof/IP65(Silicon Glue/IP67:Silicon Tube/IP68:Silicon Glue+Tube
|
||
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
