HDMI Sync Box And Ambient Light Kits
Ambient Light TV/Game
The HDMI sync box and Ambient Light Kits renders you a thoroughly immersive experience in watching movies or playing games, bringing you into fabulous vision and sound feast. A must for movie, music and games enthusiasm people.
Normally,as the TV backside led strip is RGB or RGBIC,control by mini controller with remote OR the WIFI/Bluetooth controller via phone,but it is only running the effects inside the controller, but our product can sync the TV/Screen color to change.
Product Details
Features

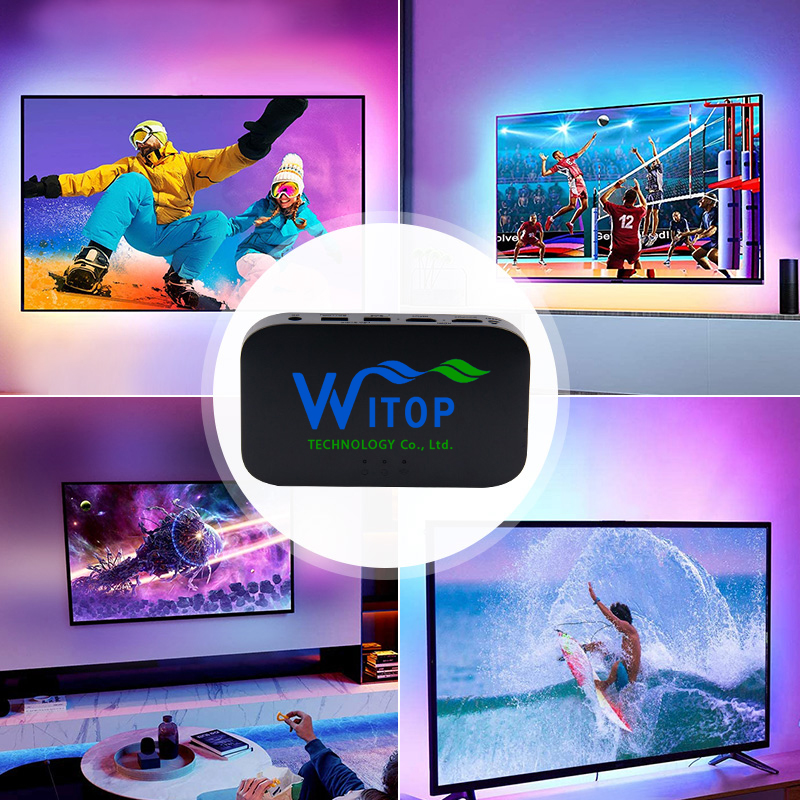

- Immersive Viewing Experience:HDMI sync control box can sync your TV color to your led strip,and automatically applies to your TV back lights.
- Smart Voice and phone Control:Manage your smart lights with simple voice commands, via Alexa and Google Assistant, or with the Tuya app. Enjoy access to more colors and features like Timer, and Music mode, helping you create the ambiance you need.
- Dynamic Light Effects:Sync screen mode and music mode,the full color changeable and 12kinds of interesting modes:like Rainbow,breathe effects.
- Enhanced Music Mode:The control box of the smart TV LED Lights strip is equipped with a built-in mic, helping you sync them to music. Choose from 3 modes (Rhythm, Spectrum, Electronic music) and jazz up your parties with vibrantly dancing colors.
- Install Easily and suitable for all size HDMI devices:Tear off the adhesive and follow the specification to install,and it is suitable for big size device,like 120inches TV screen.
Specifications
Specifications

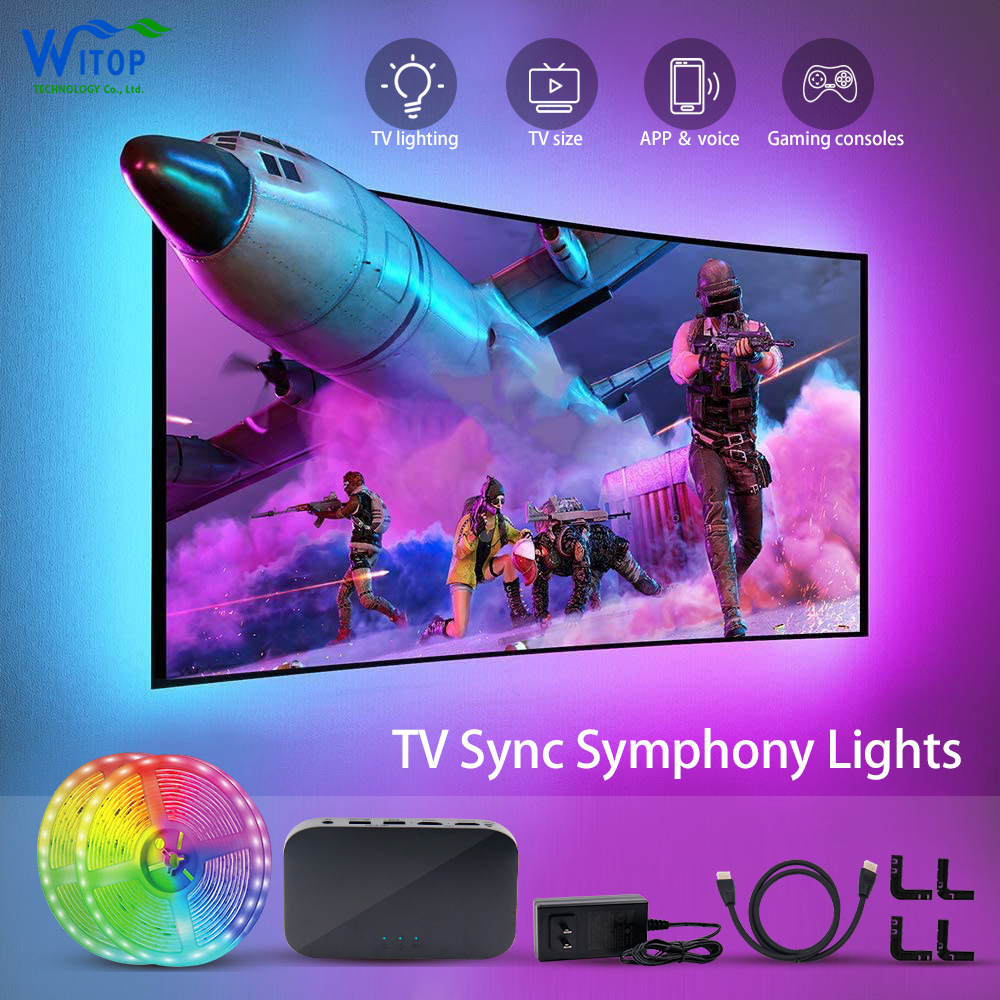

| TV Size | Item List*Quantity | Specification |

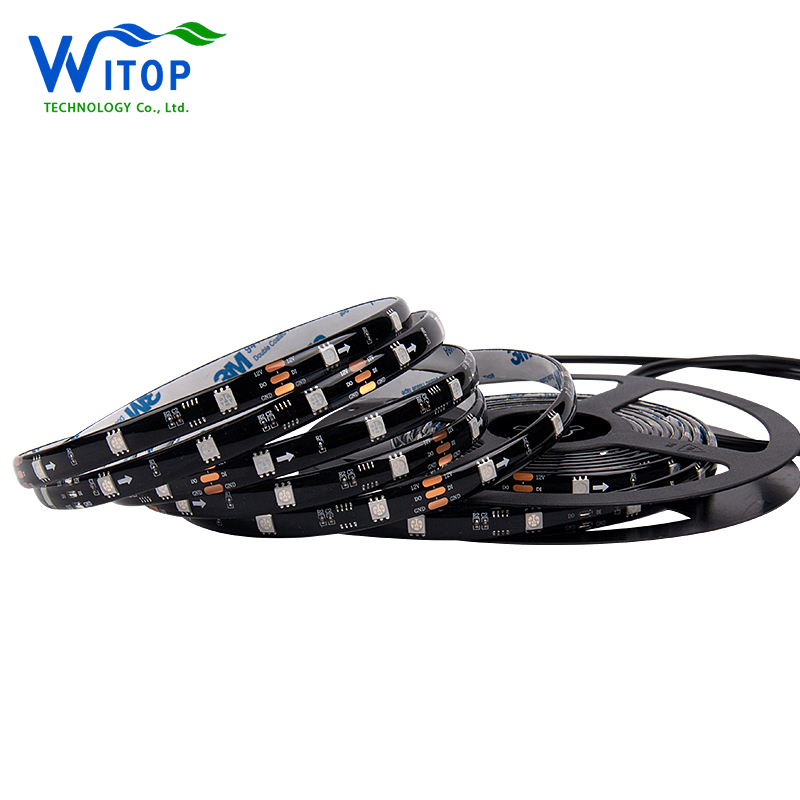

| For 90-120” TV | Full color RGB led strip*2rolls | 30leds/M,4M as a roll DC12V Input 10mm Black PCB Free-Lead solder IP65 PU Glue waterproof 9448A Black adhesive glue tape One side outlet-1M length USB connector |
| For 65-90″ TV | Full color RGB led strip*2rolls | 48leds/M,3.0625M as a roll DC12V Input 10mm Black PCB Free-Lead solder IP65 PU Glue waterproof 9448A Black adhesive glue tape One side outlet-1M length USB connector |
| For < 65" TV | Full color RGB led strip*2rolls | 60leds/M,2.35M as a roll DC12V Input 10mm Black PCB Free-Lead solder IP65 PU Glue waterproof 9448A Black adhesive glue tape One side outlet-1M length USB connector |
| For 65-120″ TV | Synchronous lighting control box*1pc | DC12V Input Input signal:HDMI Output signal:USB SPI Size:5.51*3.23*0.39 inch(L*W*H) Pixel Quantity:150pixels/output,Total 300pixels |
| HDMI Cable*1pc | 1M length Rate:4K*2K/60Hz Audio channel:32 CH Compatible version:2.0 Version |
|
| AC Power Adapter*1pc | 12V*4A | |
| Fixing Brackets for led strip corner*4pcs | ||
| Fixing Brackets for led strip corner*4pcs |
Applications
Immersive experience in watching movies or playing games:Living room/Bathroom/Game room
Simple QA
Q: There is no connection or any response after plugging in.
A:
Please check your sources resolution is within or equal to 4K/30P,if not, it won’t support.
Check the HDMI cable and connection with the input port.
Try resetting the item, there is reset mark on the Sync box.
Please contact us immediately, we’d address it for you.
Q: How to attach the light strip when going to the two corners?
A: Just let it go along the edge, it won’t matter much though it gets inclined or unstraight.
Q: The light strips fail to light on or the light won’t pace up with the screen.
A: Please check led strips connection to SIDE and BOTTOM USP port in the L and R type. Meanwhile just contact us, we’d address this and offer you solutions.
Q: No indicator on for the sync box when plugging with the power supply.
A: Go check the power supply cable and plug in with different plugs. Meanwhile just contact us, we’d address this and offer you solutions.
