DMX512 Built-in IC High Grey Scale SMD5050 LED Chip – CS512A1

DMX512 IC Inside High Grey Scale LED Chip-CS512A1

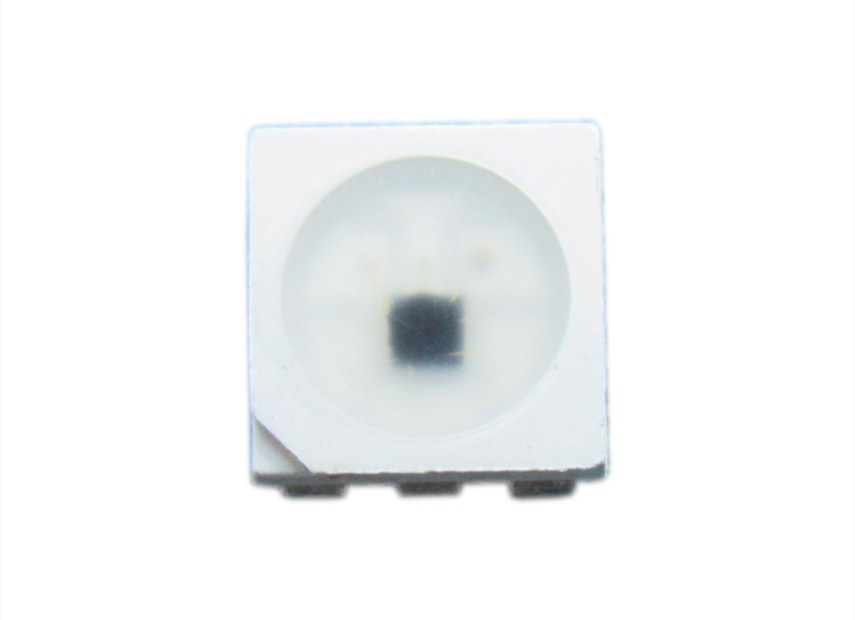

CS512A1 IC Driver LED Chip

CS512A1-DMX512 IC inside,1IC&1LED
1.Normally in the market DMX512 is IC outside,this time CS512A1 is built-in IC,will have more pixels and can reach individually addressable and address programme.
2.After WS2815 and CS8812 12V individually addressable IC,CS512A1 is other DC12V individually control IC,also own DMX512 feature.
3.CS512A1 LED chip is 16bits and 65536 high grey scale.
4.Data transfer is 250K-500K.

Share This Product

Product Details

Features

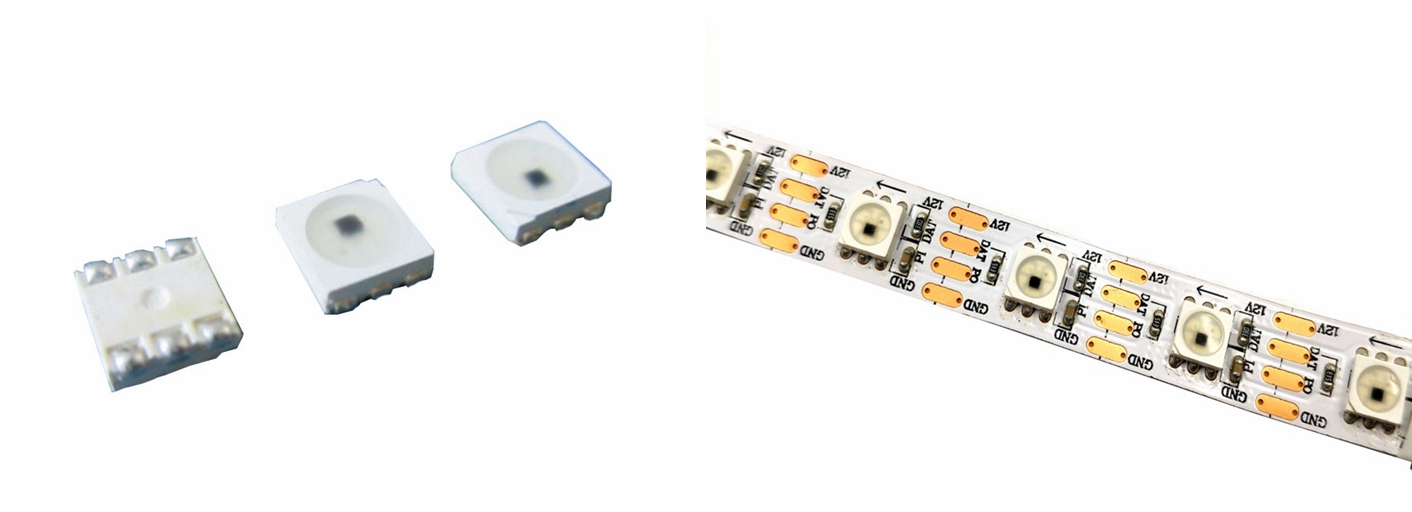

CS512A1 Chip 002

CS512A1-DMX512 IC inside,1IC&1LED

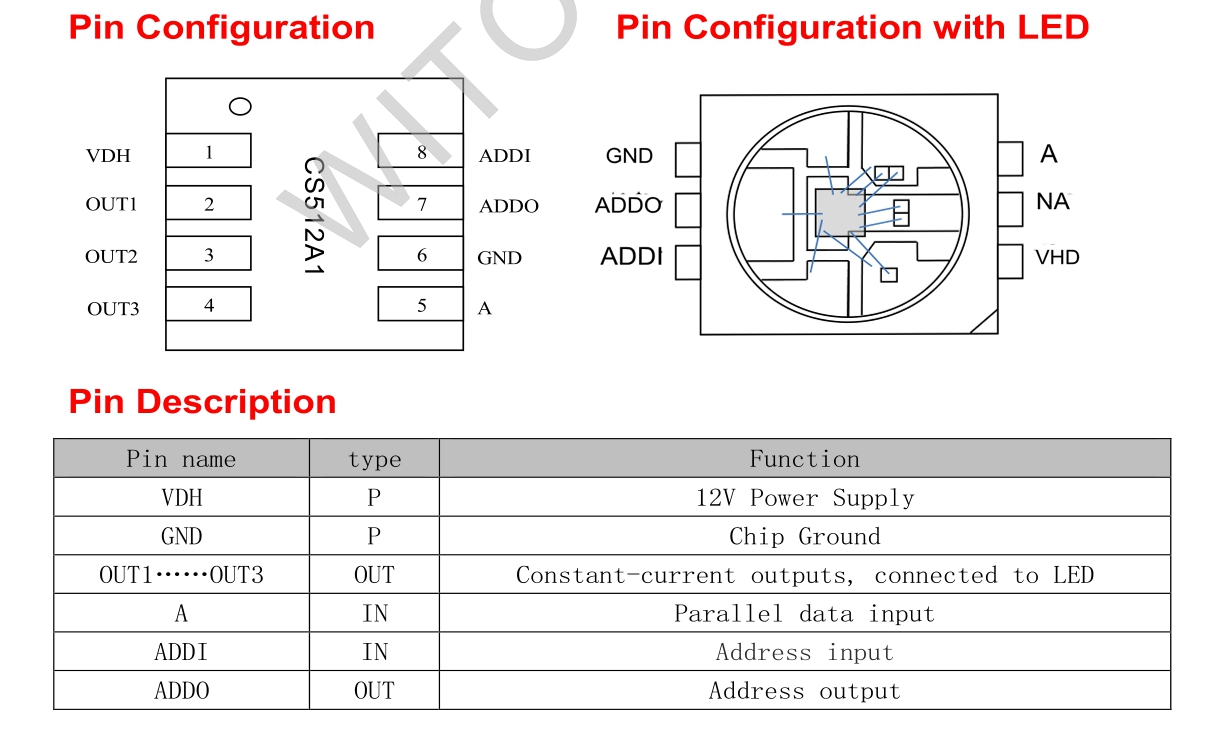

1.The CS512A1 is a 3-channel constant current LED drive with parallel DMX512 transmission protocol

2.Normally in the market DMX512 is IC outside,this time CS512A1 is built-in IC,will have more pixels and can reach individually addressable and address programme.

3.After WS2815 and CS8812 12V individually addressable IC,CS512A1 is other DC12V individually control IC,also own DMX512 feature.

4.CS512A1 LED chip is 16bits and 65536 high grey scale.

5.Data transfer is 250K-500K.

Specifications

1 meter led strip Specifications

Model	WTP-CS512A1
Chip Type	SMD5050-RGB,Built-in IC
Voltage	DC12V
Power	0.24W
Grey Scale	65536
Package	1000pcs/reel

Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.

CS512A1

Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time	light fades rate
500H	0%
1000H	0%
2000H	0.5%
4000H	1.2%
6000H	2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Applications

application

City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

Notes

Please read the specifications and precautions carefully before installation
Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
correct or not , so that avoid the product been burned
This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
