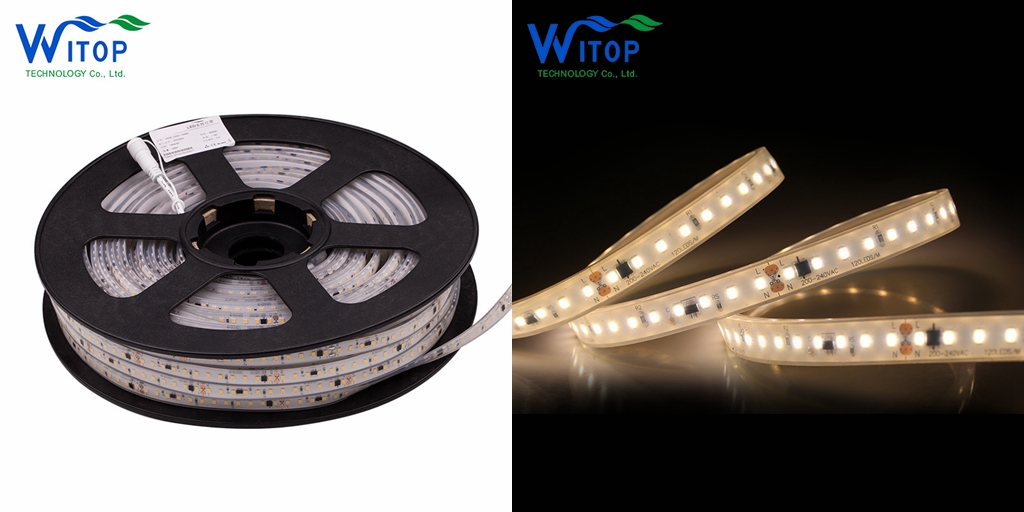

HIGH VOLTAGE 220v 2835 LED STRIP LIGHT
2835 LED STRIP
1.Each segment with built in high voltage constant current IC to ensure every LEDs still can receive constant current under the ripple voltage
2.With the built in bridge rectifier design, each segment can work individually. rectifier bridge be dispersed to each segment to ensure strips with lower temperature, higher reliability and stronger anti-surge capability
3.2OZ FPC board Can be cut at the printed marks;12LEDs per group/cuttable 10cm
4.High luminous efficacy with 2835 SMD LED mounted
5.Higher safety performance, all of our such series of products be made by extrusion technology with food grade silicone, no yellowing, no cracking, protection grade up to IP67
6.CE certificated, RoHS compliant
7.3 years or 35000 hours, according to the first arrived parameter
Product Details
Features
1.Each segment with built in high voltage constant current IC to ensure every LEDs still can receive constant current under the ripple voltage
2.With the built in bridge rectifier design, each segment can work individually. rectifier bridge be dispersed to each segment to ensure strips with lower temperature, higher reliability and stronger anti-surge capability
3.2OZ FPC board Can be cut at the printed marks;12LEDs per group/cuttable 10cm
4.High luminous efficacy with 2835 SMD LED mounted
5.Higher safety performance, all of our such series of products be made by extrusion technology with food grade silicone, no yellowing, no cracking, protection grade up to IP67
6.CE certificated, RoHS compliant
7.3 years or 35000 hours, according to the first arrived parameter
Specifications
1 meter led strip Specifications
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

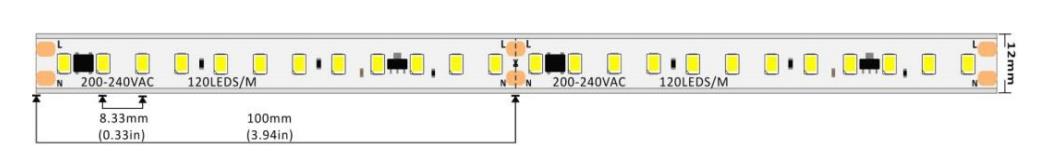

Dimension

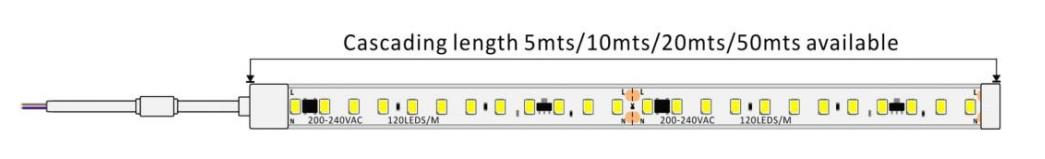

Installation Diagram
You can cut it as 5M/10M/20M is ok,and even 10CM.

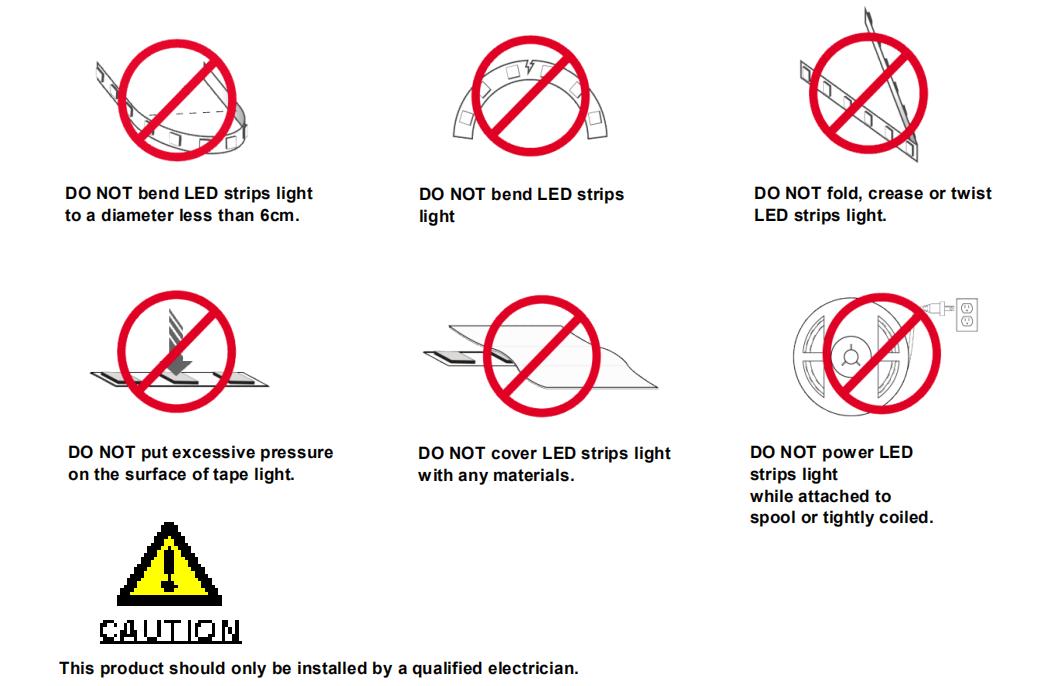

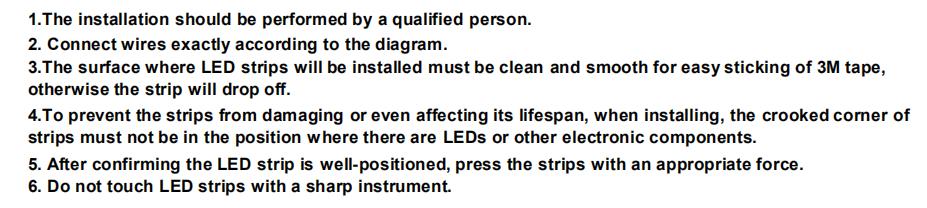

Installation Instruction
