5630 Plant Grow Lighting
5630 led plant grow lighting
Normally,plant grow lighting is blue and red color,we use the dual white SMD5630 chip to reach nature light.
1.Use the samsung SMD5630 led chip,each led have 180lm/W,288pcs* 2 CCT,3000K and 5000K
2.DC48V power supply,CRI90-92.
3.No resistor and capacitor,can dimmer BY dimmer controller.
4.Aluminum Board have better cooling not BY fan.

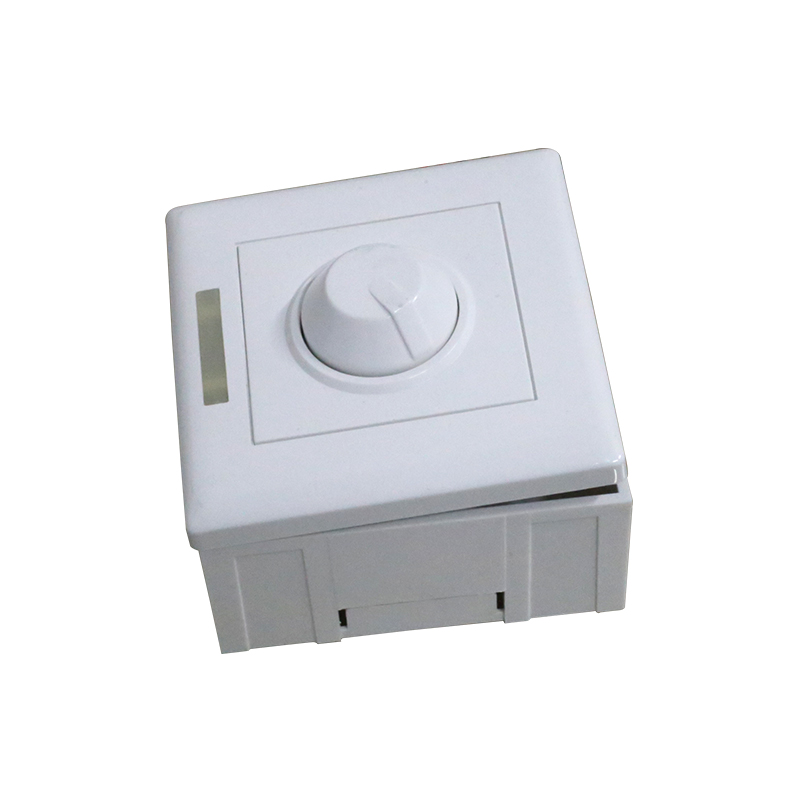

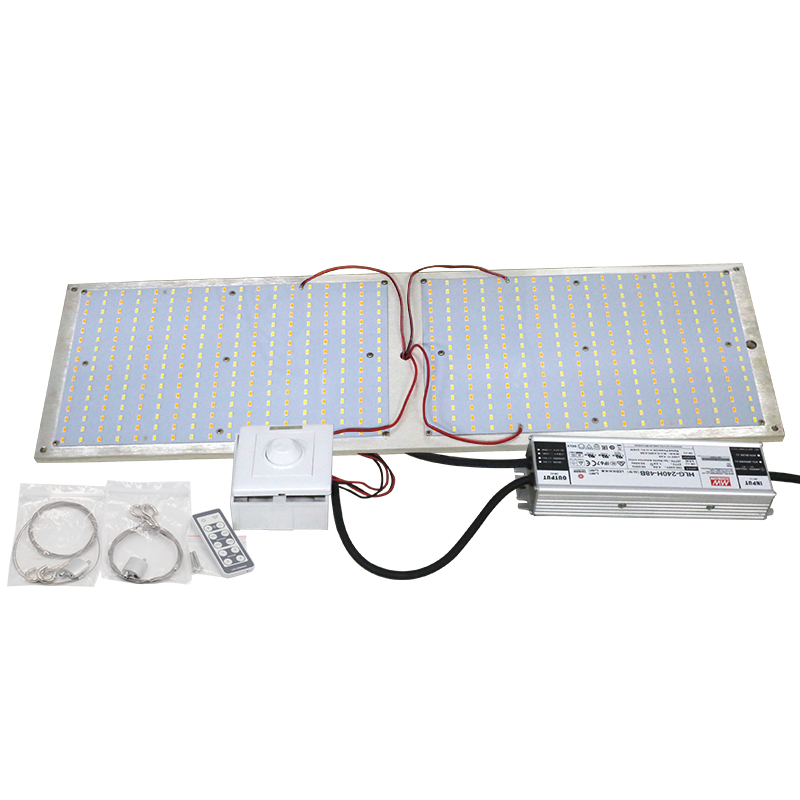

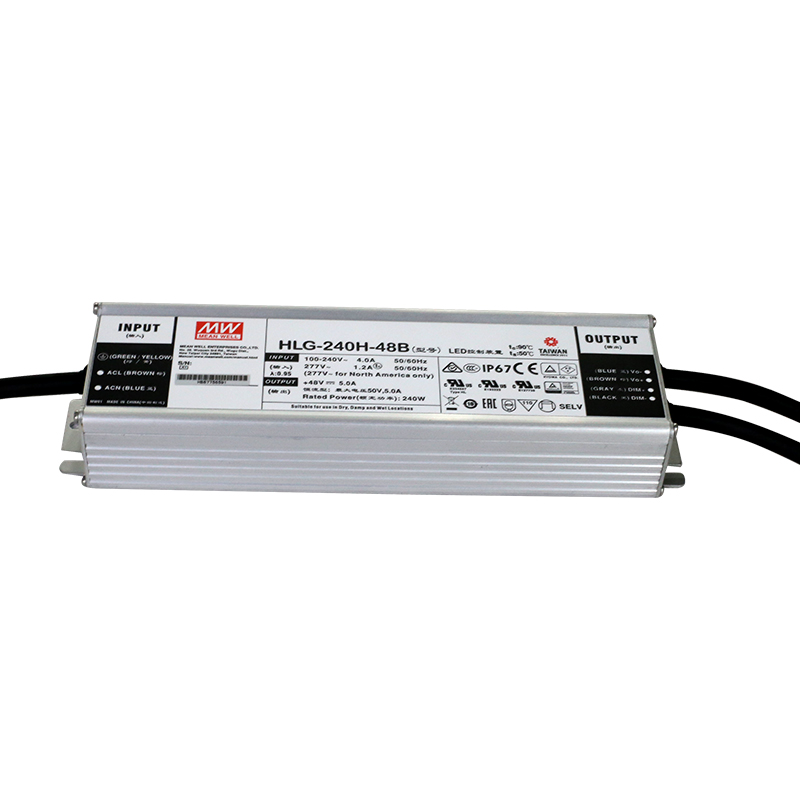

5.Asseccories:Led plant grow light 576leds/pc+Dimmer switch controller with Remote+Power supply+Hanging wire.
6.Application:Plants grow,home garden light.
Share This Product
Product Details
Features
5630 led plant grow lighting
Normally,plant grow lighting is blue and red color,we use the dual white SMD5630 chip to reach nature light.
1.Use the samsung SMD5630 led chip,each led have 180lm/W,288pcs* 2 CCT,3000K and 5000K
2.DC48V power supply,CRI90-92.
3.No resistor and capacitor,can dimmer BY dimmer controller.

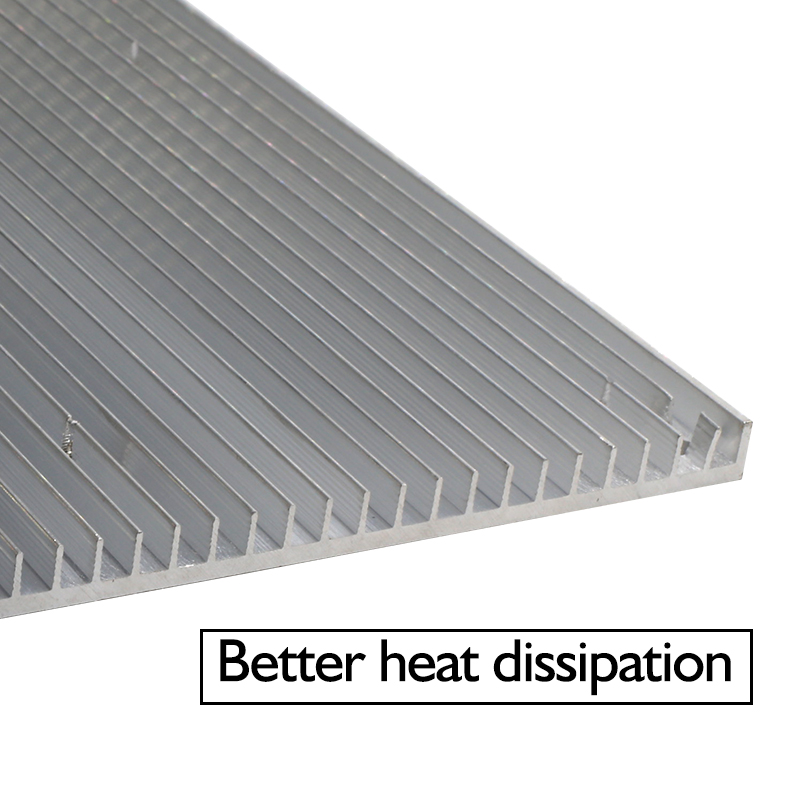

4.Aluminum Board have better cooling not BY fan.
5.Asseccories:Led plant grow light 576leds/pc+Dimmer switch controller with Remote+Power supply+Hanging wire.
6.Application:Plants grow,home garden light.
Specifications
Specification
| Model | 5630 Plant Grow Lighting | Led Type | SMD5630 |
| Led Color | Dual White(Warm white&Nature white) | CCT | 3000K/5000K |
| Led QTY | 288leds*2 | Voltage | DC48V |
| Power | 144W | Current | 83mA |
| Lumen | 25000lm | Efficiency | 190lm/W |
| PCB Size | W286*H174 | PCB Material | Aluminum |
| PCB Thickness | 1.6mm | PCB Surface | HASL |
| Copper | 1oz | Effective exposure Area | 1- 8 square meters |
| Effective exposure distance | 0.5-3Meters | Exposure time | 8-16 Hours |
| Accessories:
1.Led Panel 288leds*2pcs with 1 pc heatsink 2.Dimmer Switch:1pc 3.Led Power Supply:1pc with 1pc plug(Plugs can be choose) 4.Hanging wire:2pcs |
|||
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Application

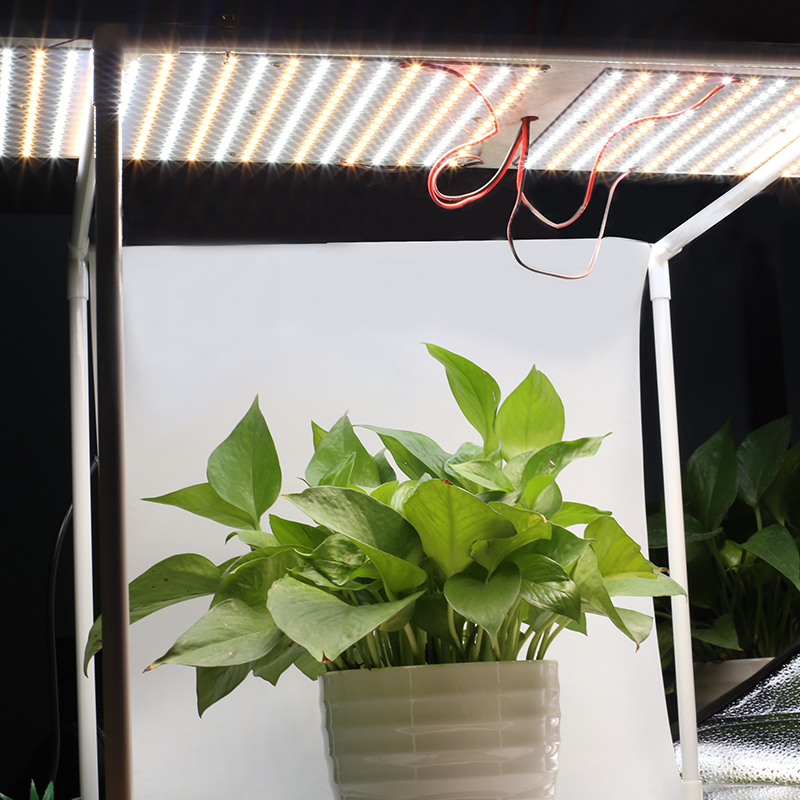

The application principle is to fully simulate the photosynthesis of sunlight to plants, select the spectral collocation that is most favorable to plant growth, and provide targeted energy to plants.Applicable to horticulture, family veranda sowing / seedling/breeding, farm, flower show, garden, potting, etc.The distance between lamp and plant is between 0.5 meters –3 meters, below the environment that does not have the sun to illuminate completely, depend on the plant, open lamp time is in commonly 8-16 hours.The product is suitable for the area of 1-8 square meters, such as balconies, greenhouses, dark rooms and so on.Suitable for greenhouse planting or more demanding planting environment.
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
Contact Us
NORMAL ADDRESSABLE LED STRIP LIGHT

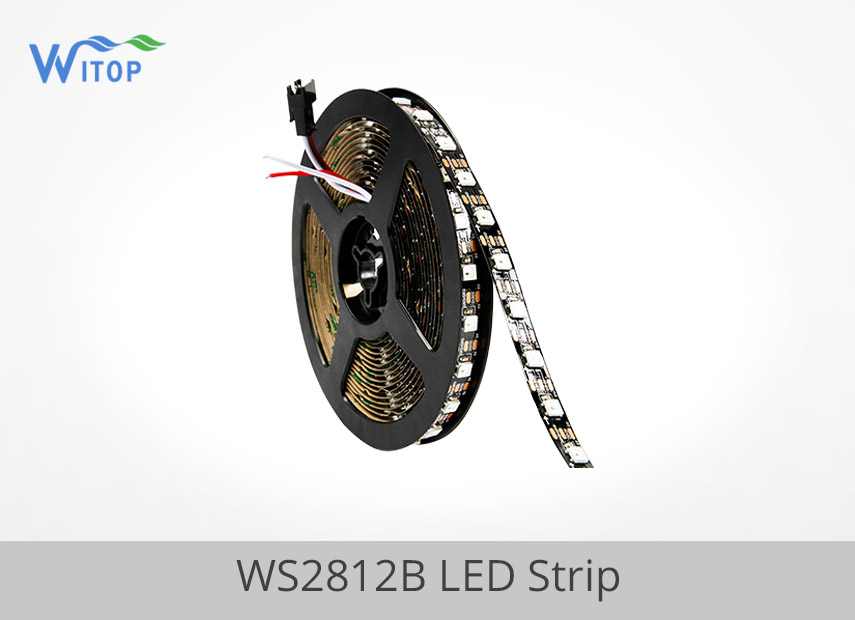

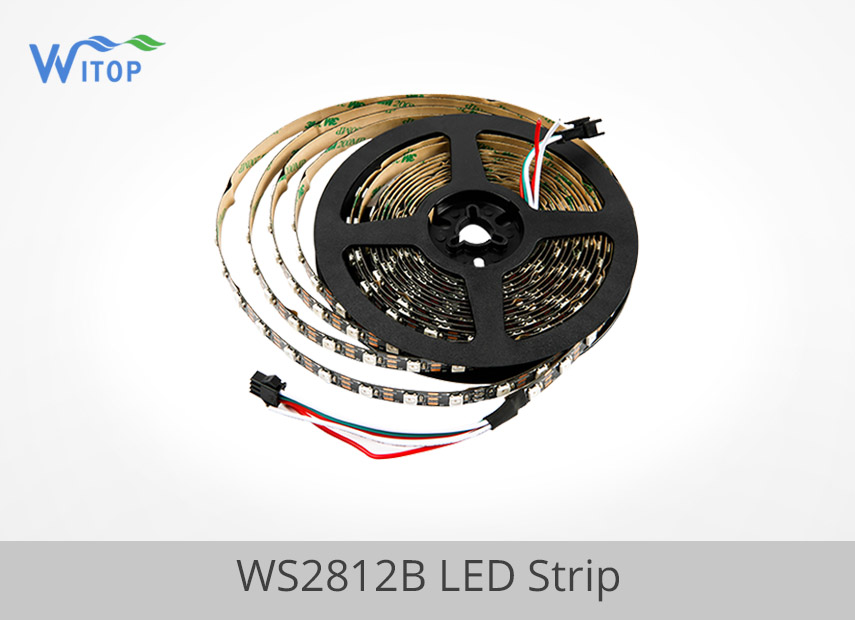

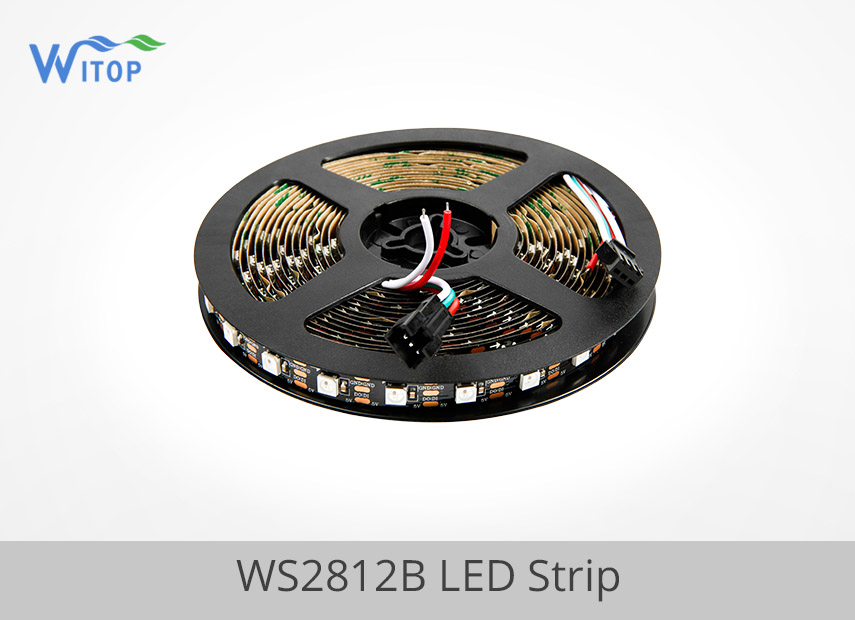

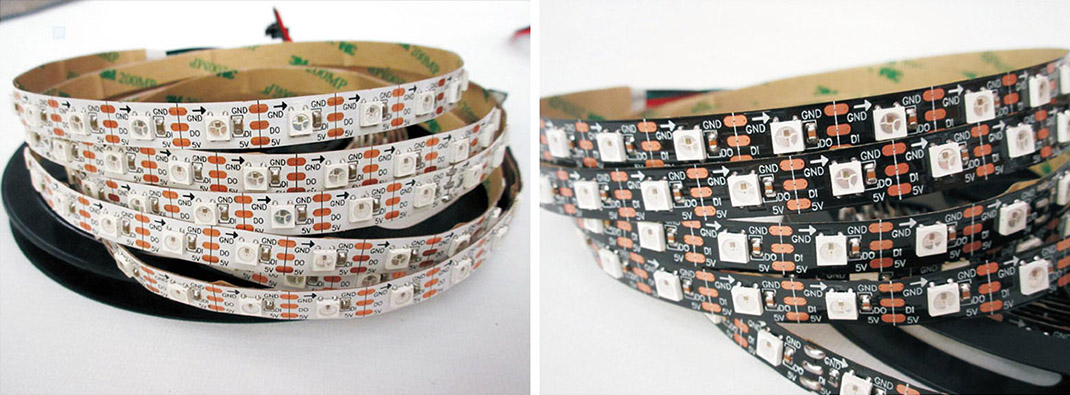

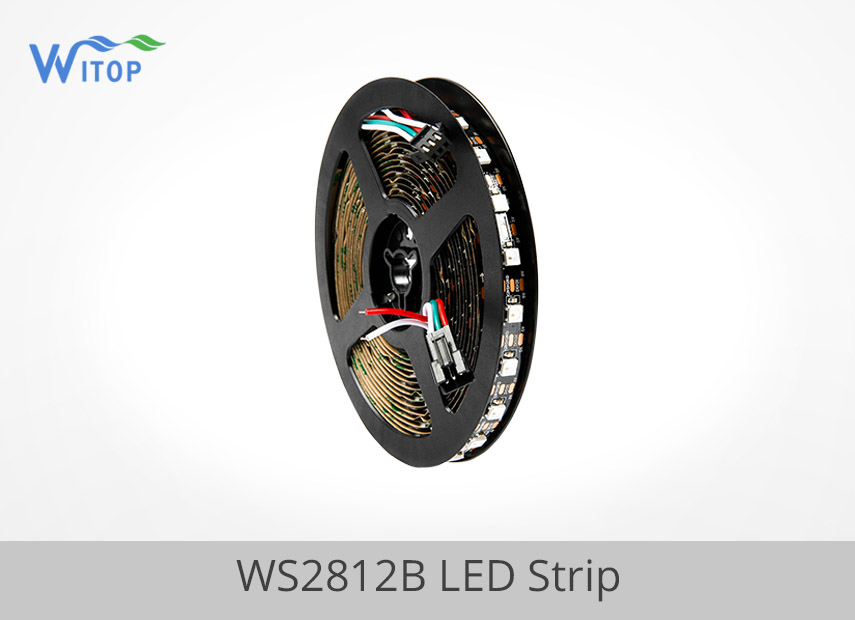

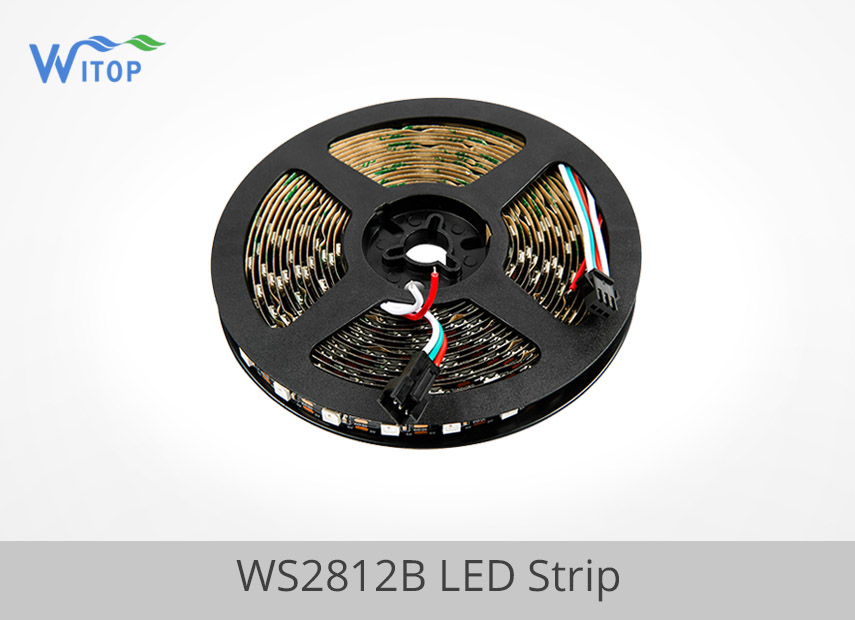

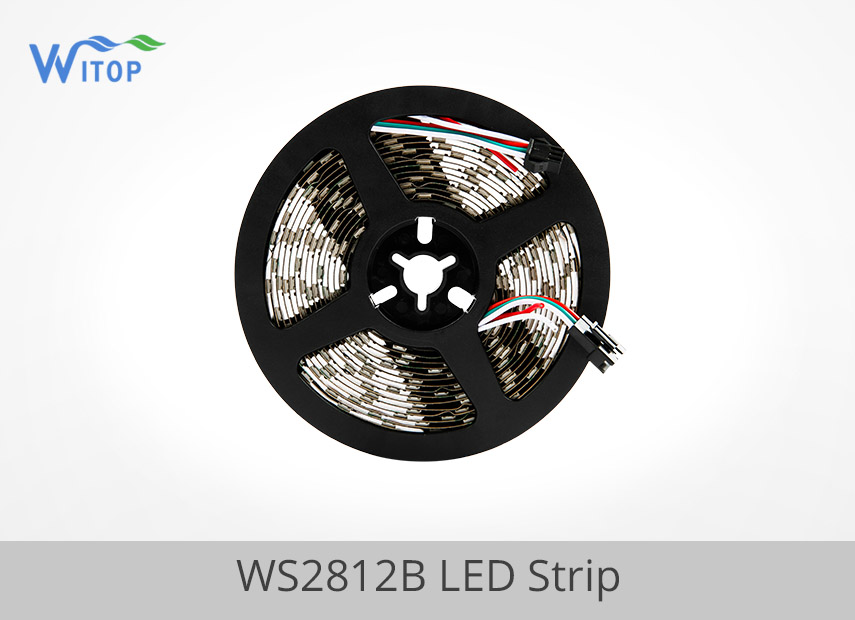

WS2812B LED STRIP
- WS2812B LED Strip use the FPCB (flexible printed circuit board) to be assembly circuit boards, use SMD LED lights and components to be assembled, so that the thickness of the product only just like, Ocuppy a small space, and can be arbitrarily cut, FPC is soft material, can random winding, and wound freely movable in three-dimensional space without breaking, suitable for irregular place and narrow space of places to install, but also as any possible bending, suitable for advertising, decorative lighting, any combination of the kinds of patterns,LED Chip is built-in IC, then the components is less , pixels can be high, can make attractive appearance, and so on.
- IC is designed with one data line, two power lines, 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc., with the controller, you can achieve monochrome, gradient, water , horse racing, text, numbers, chase, English, pictures, animations, video, any effection, and so on.
- Products using DC5V voltage to power supply, high safety factor, using the import led chip to be the light source , high brightness, light fade is small, maintenance-free, long lifespan , energy-saving and environmental protection, based on the above characteristics,More and more peopel choose led strip as lighting ,decoration product.
Share This Product
Product Details
Features
- Adopt international leading manufacturer ’s chips high brightness width angle , color consistency, and stable performance.
- Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
- Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.

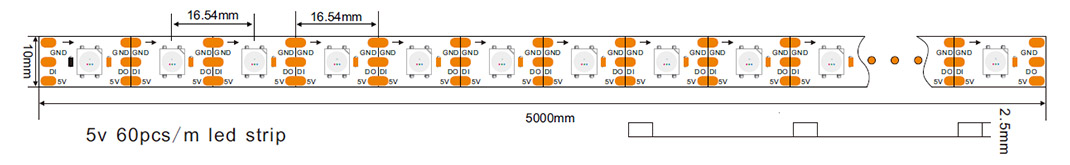

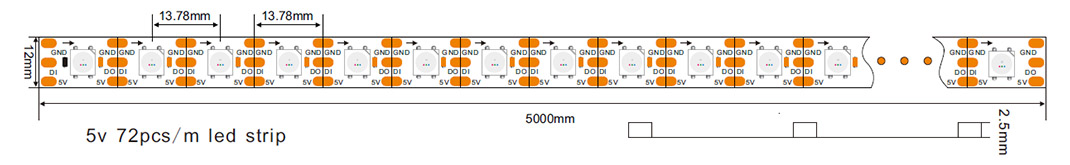

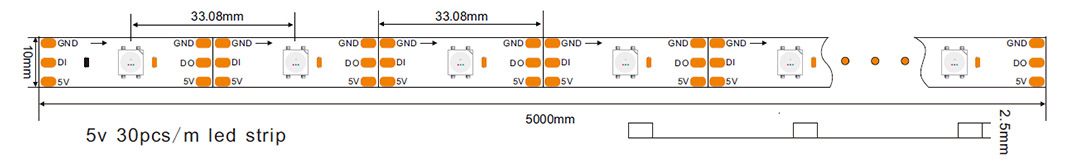

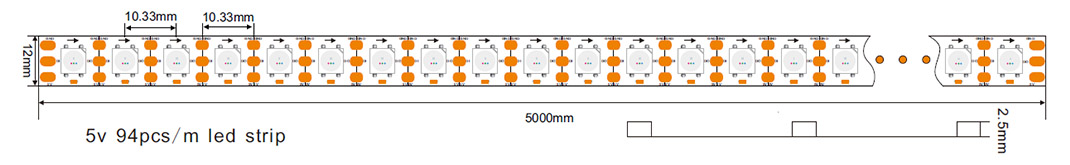

Dimension
Specifications
1 meter led strip Specifications
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
