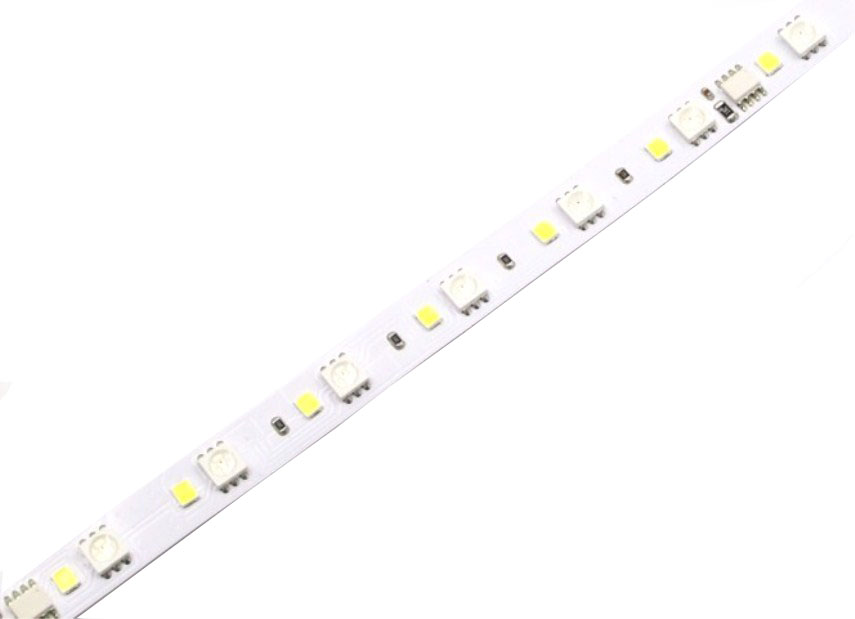

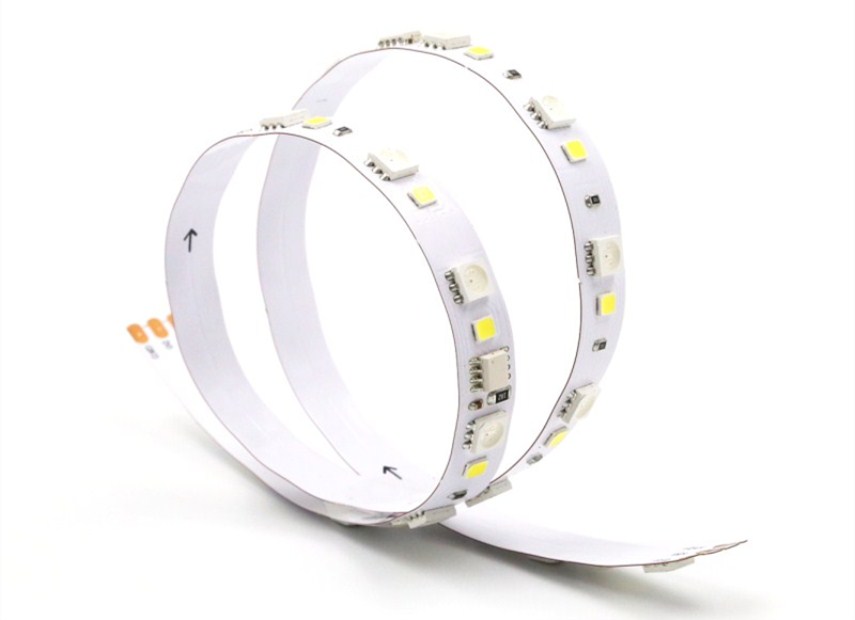

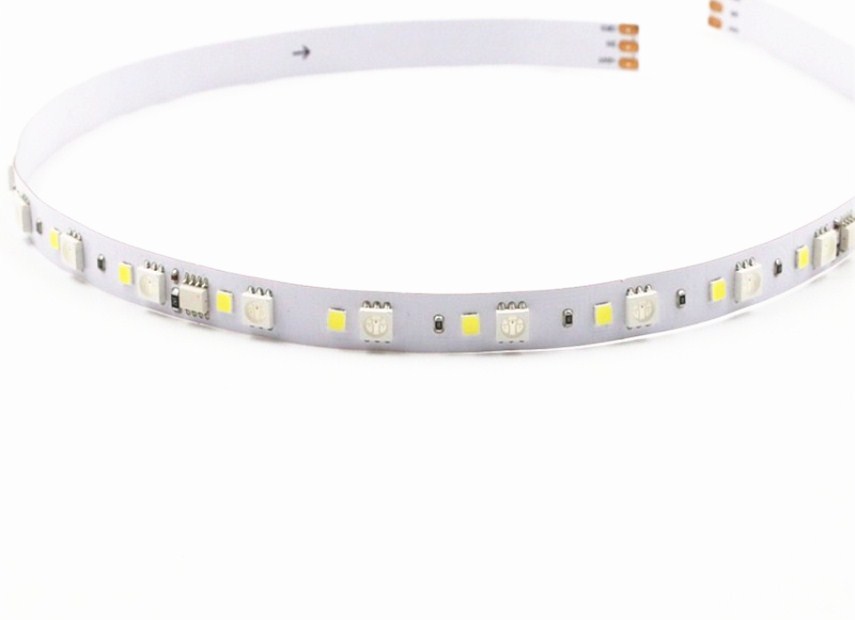

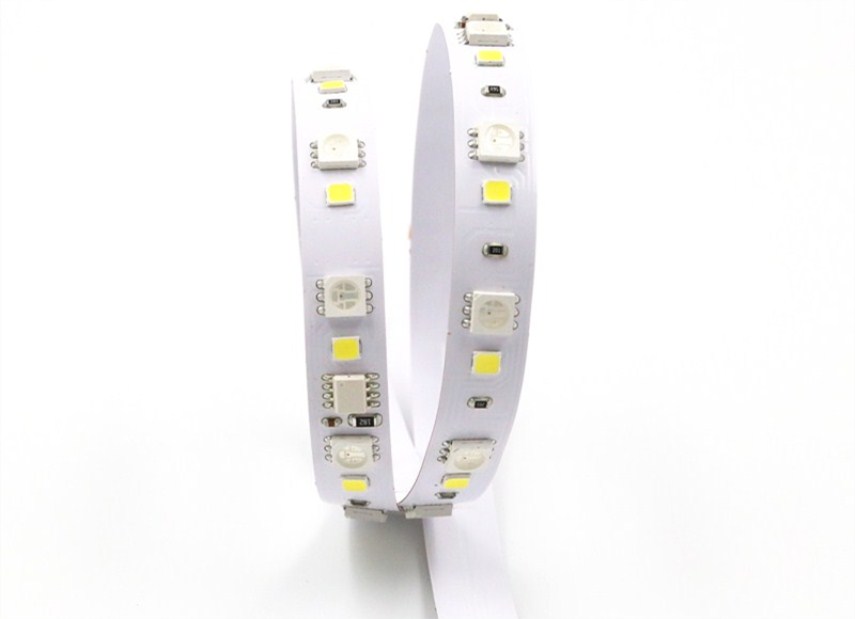

CS6816RGBW LED Strip
5050RGB+2835 White color=RGBW
In the Market,we have the RGBW 4 in 1 led chip,one chip have 4 colors.But now we have the CS6814RGBW:
- CS6814RGBW=SMD5050RGB+SMD2835 White Color Chip,two type chip
- White color CS6816 IC Outside.So,the led tape no printing in the front.

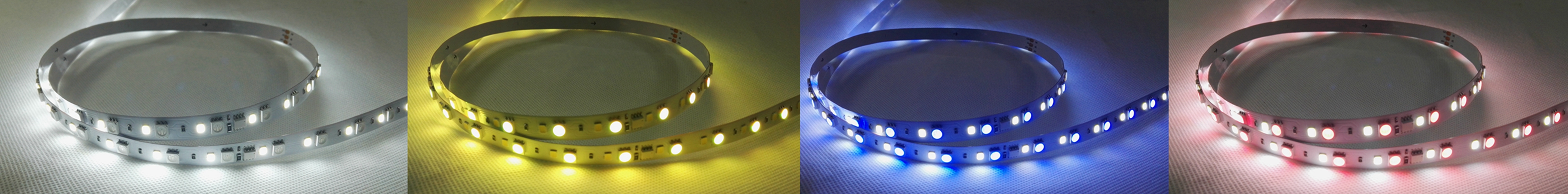

- Can only light white color OR RGB,also can BY controller to achieve digital effect.
- When CS6816RGBW do not connect controller will show itself programme,red,yellow,blue,single color ect.
Share This Product
Product Details
Features
- 48leds/M,48pcs 5050 RGB chips+48pcs 2835 white color chip=RGBW
- Voltage:DC24V,Power:15.36W/M,Lm:1056lm/W.
- White color CS6816 IC Outside.So,the led tape no printing in the front.
- Can only light white color OR RGB,also can BY controller to achieve digital effect.
- When CS6816RGBW do not connect controller will show itself programme,red,yellow,blue,single color ect.
Dimension

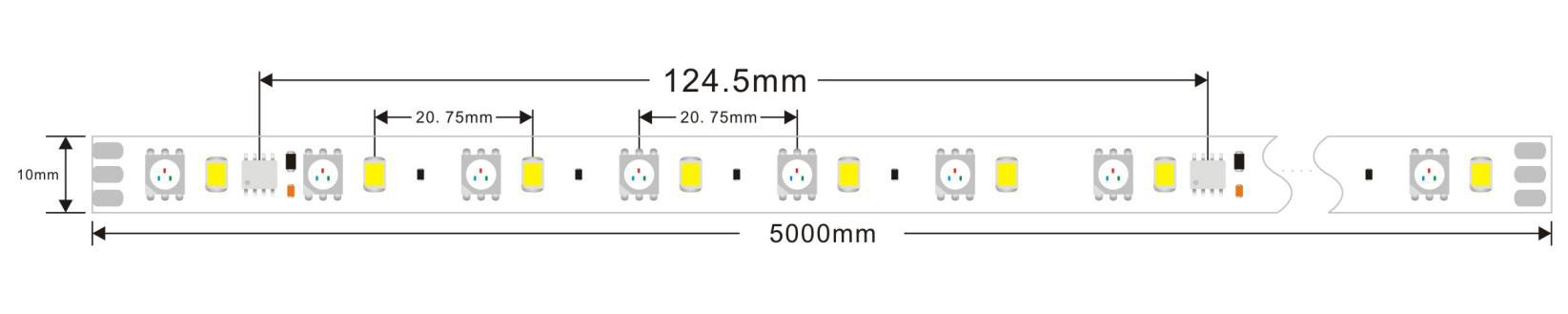

CS6816RGBW,48leds/M,PCB Width 10mm
Specifications
1 meter led strip Specifications
| Model | CS6814RGBW-48leds |
| LED QTY | 48LEDs/M |
| LED Type | SMD5050RGB+SMD2835 White Color |
| Voltage | DC24V |
| Power | 15.36W/M |
| IC Type | CS6814 IC outside |
| PCB Color | White |
| PCB Width | 10mm |
| Other size | Can be customized |
| Waterproof | IP20(No waterproof),IP65(Silicone Glue waterproof),IP67(Tube waterproof),IP68(Silicone Glue+Tube waterproof) |
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
