SK6812 Addressable LED Strip

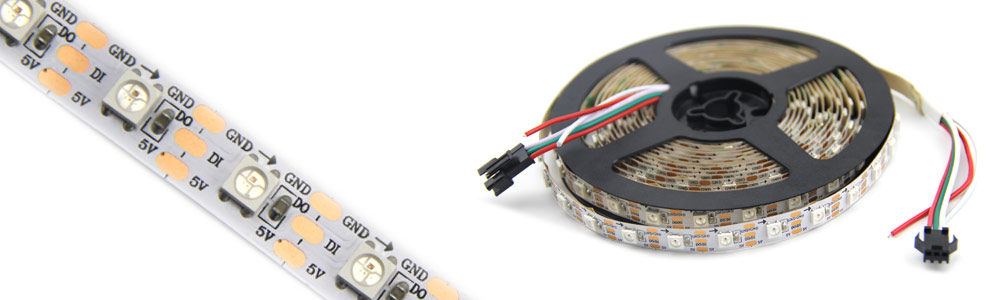

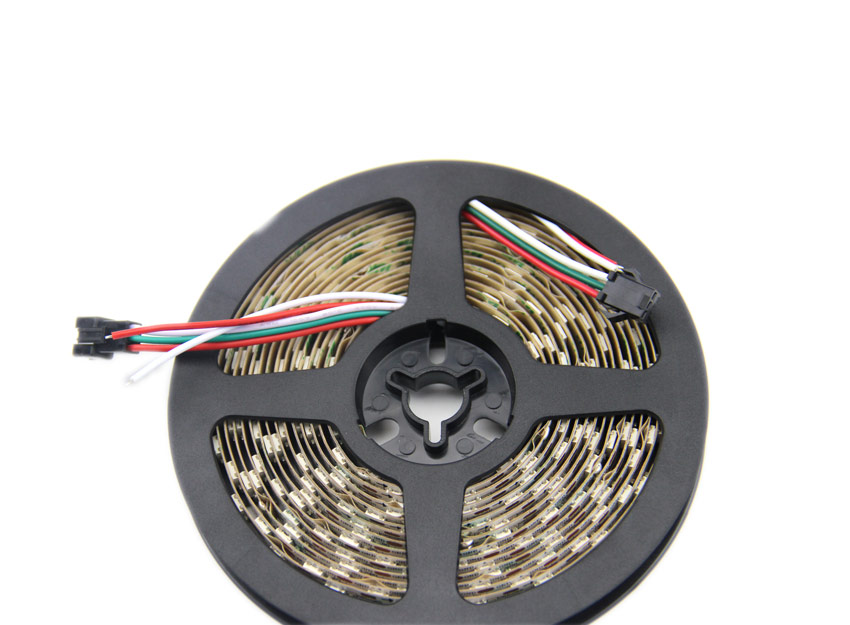

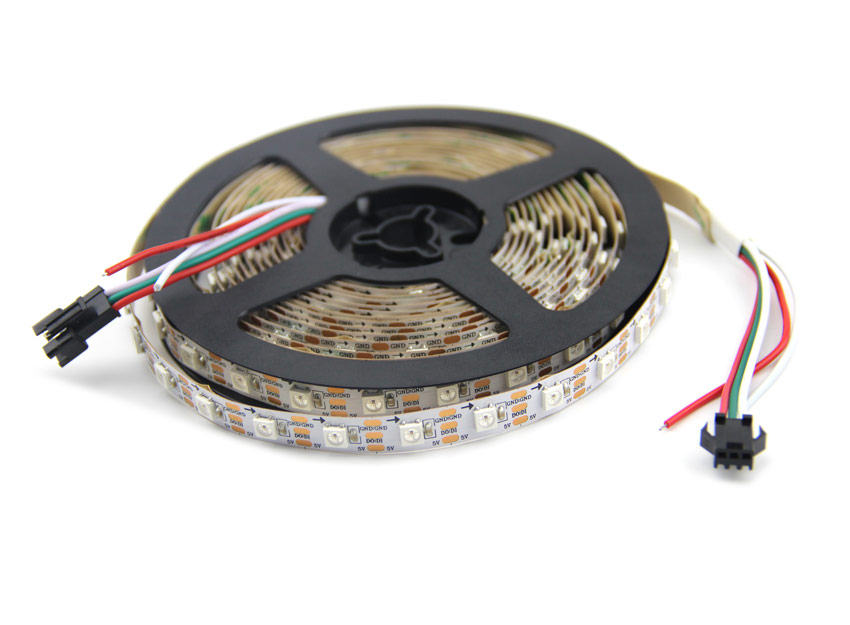

SK6812 60led Digital LED Strip
- 1, Top SMD internal integrated high quality external control line serial cascade constant current IC;
2,Control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
3,Built-in data shaping circuit
4,Gray level adjusting circuit (256 level gray scale adjustable);
5,Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per second
6, The transmission distance between two points over 10M;
7, 5 meter per roll,Cut-able of each single LED/Pixel
Share This Product
Product Details
Features
- There is one more member coming to SK6812 strip family,It’s 60leds LED strip.-We developed 30 Pixel,60 Pixel 144Pixel per meter!
-PCB width 10mm due to request reduce heat.

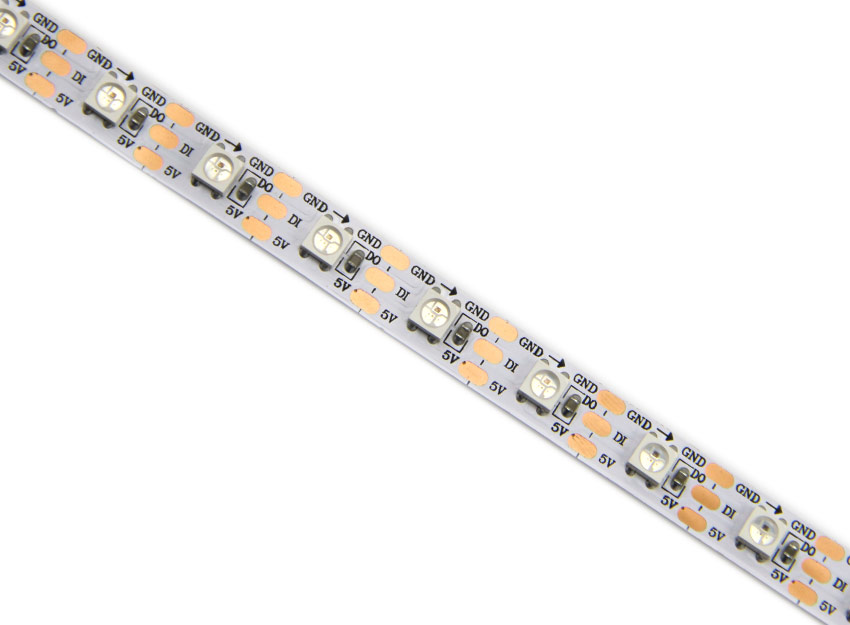

-Each LED per unit can be cut down.
-Requested to power from start and end of roll by DC5V as the Voltage drop.
-Brown 3M adhesive tape stick on back side.
-Both white & warm white color PCB board available.
Dimension
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
Specification
HIGH lumen RGB brightness SK6812 LED Lighting Strips Flexible DC 5V 5050
|
Model number
|
WTP-RGB-60led
|
||
|
LED TYPEE
|
SMD5050 RGB LED chip
|
||
|
PCB color
|
white /black PCB
|
||
|
PCB Width
|
10mm
|
||
|
Pcb Length
|
5meter/roll, also can be customized
|
||
|
View angle
|
120 degree
|
||
|
LED QTY
|
60LEDS/M
|
||
|
POWER
|
18W/M
|
||
|
Voltage
|
DC5V
|
||
|
Installation
|
wiht 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20(non-waterproof), IP65(Silicon-tube waterproof), IP66:Soft tube waterproof, IP68:Soft tube+Glue filled waterproof | ||
|
Operate temperature
|
-20 ~ +40°C
|
||
|
IP rate
|
IP20(non -waterproof /IP65(Silicon tube waterproof )
|
||
|
Package
|
5M/reel .with anti-static bag ,or customized
|
||
|
Application
|
indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc.
|
||
