ws2813 programmable white color led strip

Ws2813 Addressable Programmable Digital white color Led Strip Light

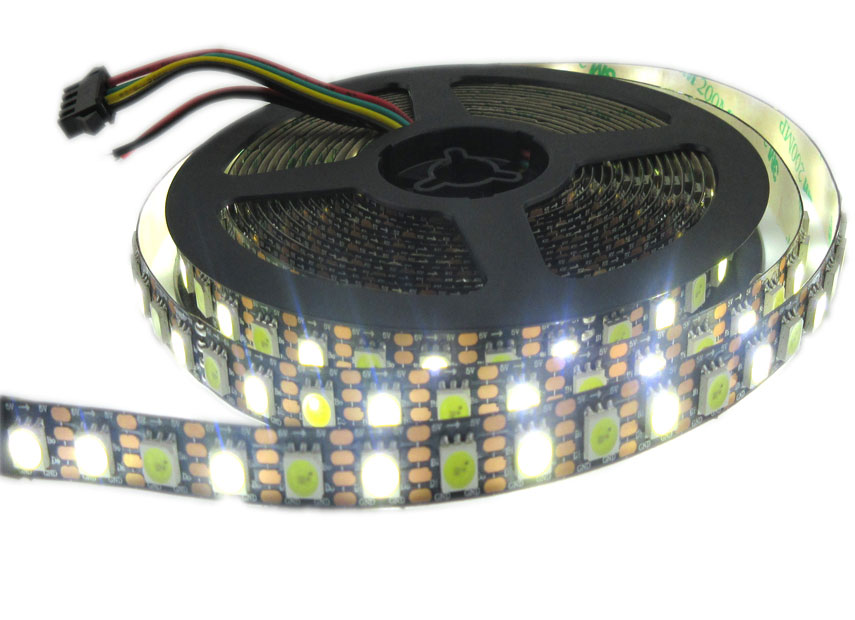

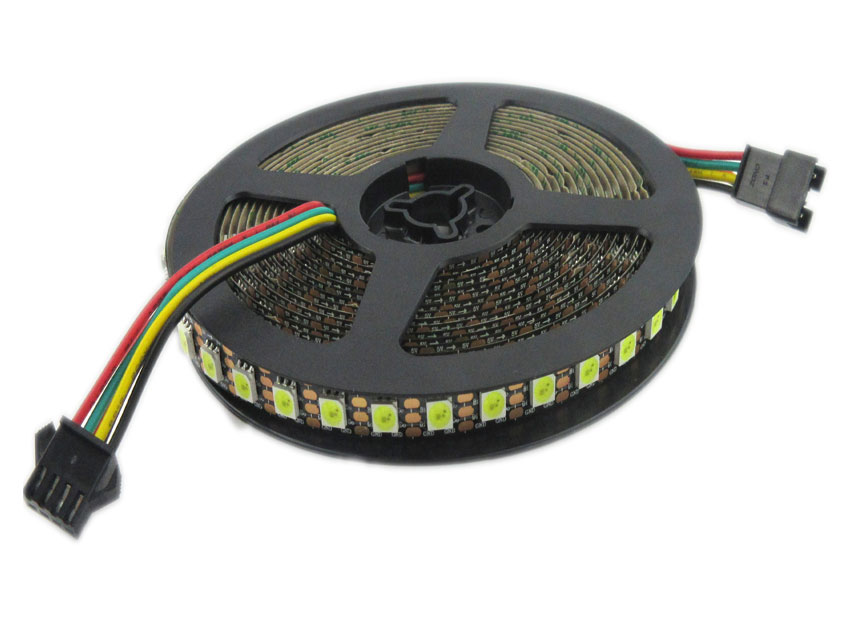

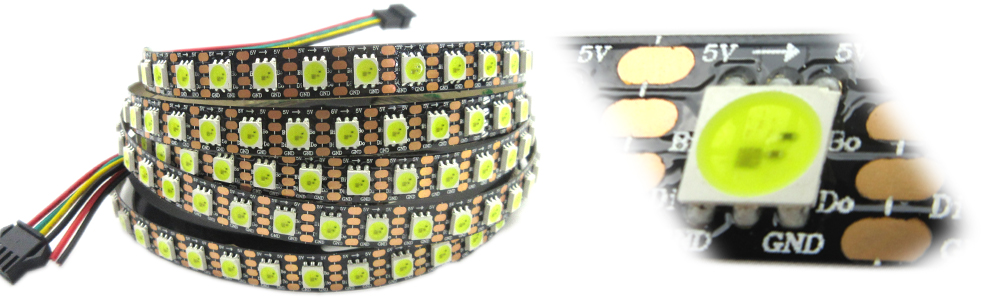

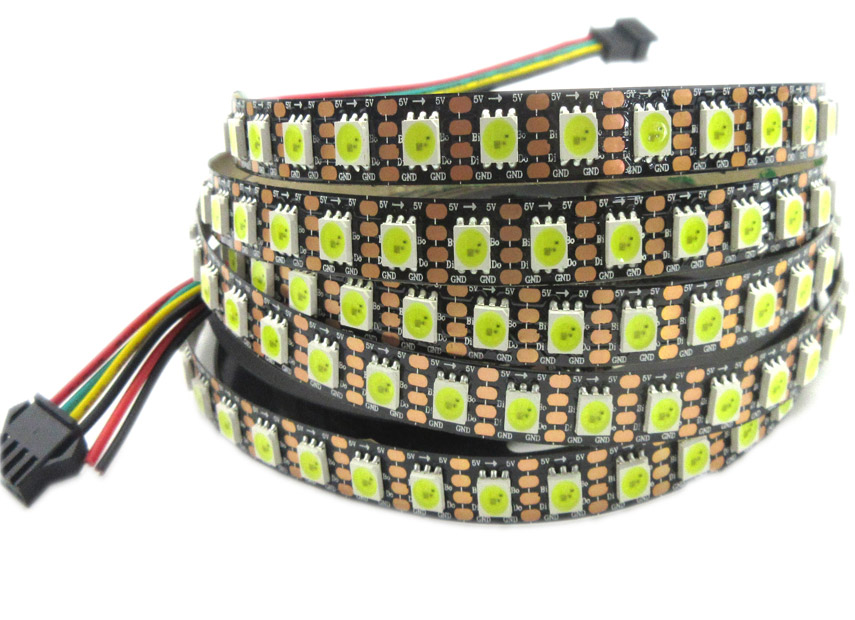

WS2813 White color led strip

WS2813B/WS2813 LED Strip:

1,RGB Pixel Strip Light—IC Built-in WS2813 Dual Signal Digital LED Strip ,more reliable than ws2812b/sk6812

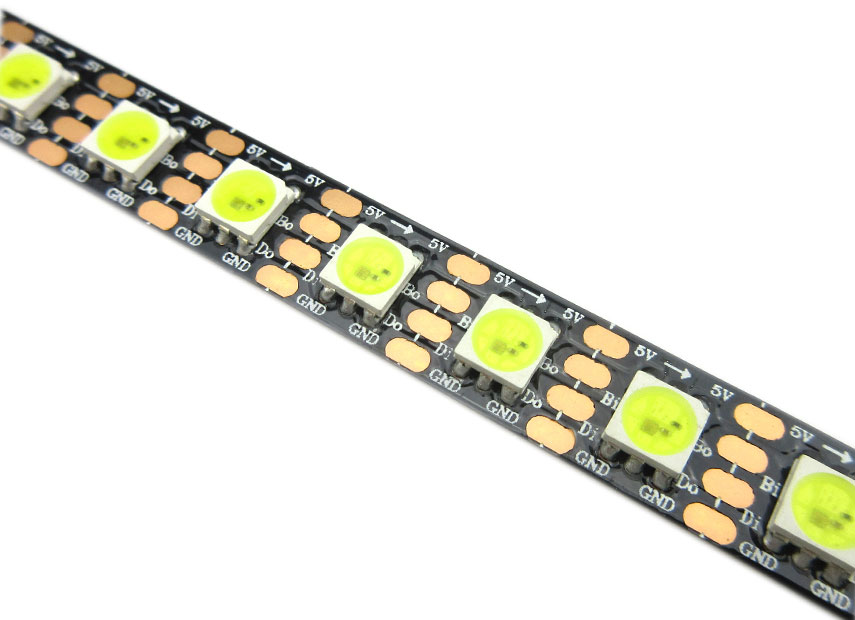

2.Each SMD 5050 has an IC(WS2813) inserted in ,each LED individually address controlled

ws2813 led strip

Share This Product

Product Details

Features

ws2813 white led strip

  • Adopt international leading manufacturer ’s chips high brightness width angle  , color consistency, and stable performance.
  • Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
  • Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.
Specification

and White pcb. By the way, WS2813 LED Strip support Arduino , Raspberry Pi and so on .

Work voltage DC5V
LEDs 60LED/M
IC WS2813
Power / M 18W/M
Grey Grade 256
Image Pixel 60Pixels/M
Size 5000*10*2.5mm
PCB color black/white
color white(5500-6500k)
Standard length 5meters/roll
Waterproof IP20/IP65/IP67/IP68
Dimension

programmable led strip

addressable rgb led strip

Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
