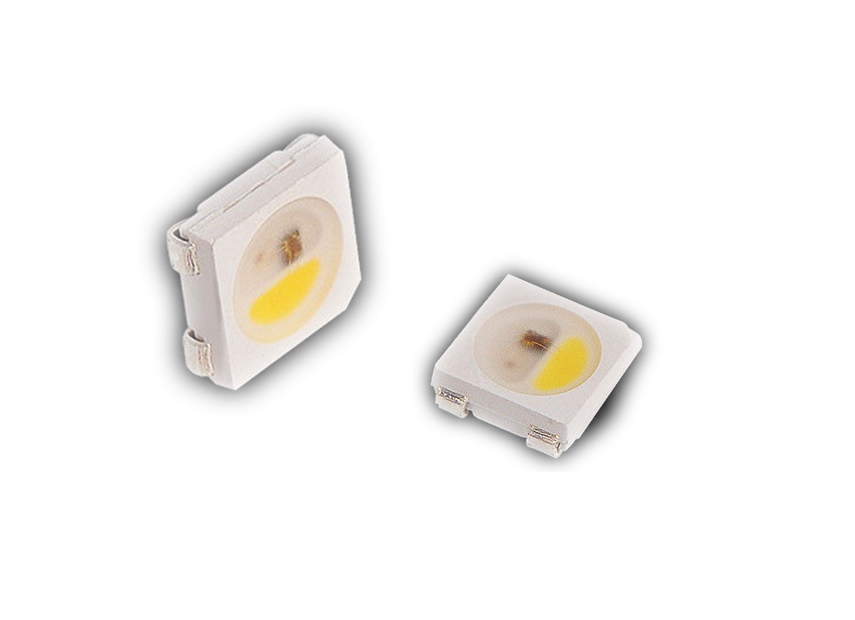

SK6812 5050 Addressable Led Chip
SK6812 5050 RGBW individually Led Chip
-

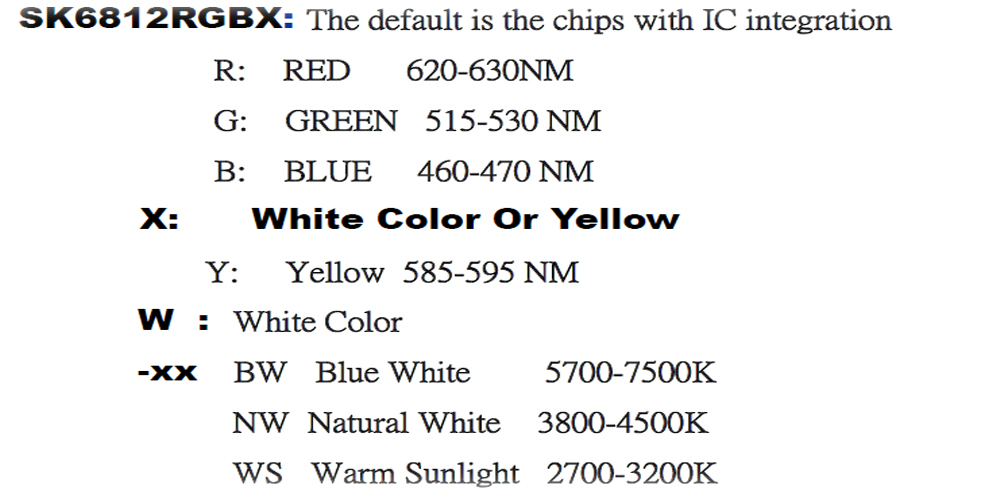

RGBWW= RGB + Warm White (2700-3200k),RGBNW= RGB + Natural White (4000-4500k),RGBCW = RGB + Cold White (above 7000k),White (5500-6500k),WWA = White + Warm White + AmberLED source :5050SMD RGBW/WW/WWA built-in SK6812 chip
Share This Product
Product Details
Features
- SK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
Specifications
1 meter led strip Specifications
Applications
- ● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
equipment etc..
Company profile
Shenzhen WITOP TECHNOLOGY Co.,Ltd is a product R & D, manufacturing, sales and service LED lighting enterprises.
We has experienced in product development by our design team, the company has successfully developed various kinds of lights and lighting products,
1,Built-in IC led package ,ws2815 led,ws2812b led,apa102 2020 led,ws2813,sk9822,apa102…
2,Led strip:APA102, WS2813 ,SK6812, WS2801, LPD6803, LPD8806, WS2811, WS2812B, TM1809, DMX512 smart led strip and LED module , and 5050 ,3528 ,2835,335,5630 normal led strip etc .
3, Led project design,custom the length,the led type,led panel,music party,dance party and so on.
led products widely used in home decoration, garden landscape, stadiums, exhibition hall, exhibition hall, hotel, high-grade office buildings, upscale clubs etc.. Products are exported to America, Europe, Asia, Oceania, and other market.
