Ws2811 Smd315 Double Color Side Emitting Led Strip Light
Ws2811 Smd315 LED Strip

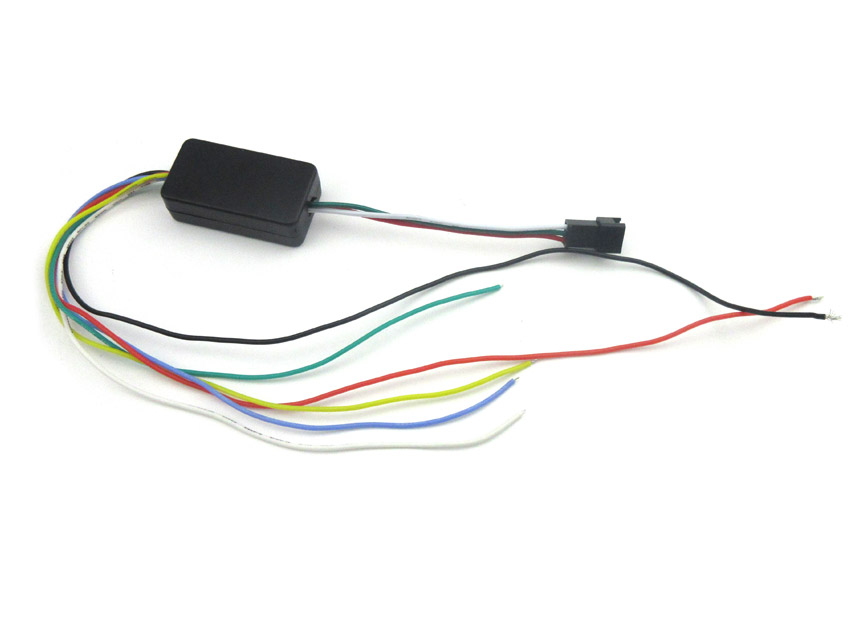

- Product name：Smd315 Side Emitting Led Strip For The Car Tail Streamer LampFunction specification：red line conenct acc，black line conenct GND.
1.Green：when conenct acc,the led strip will ice blue clor2.White line for break：when break,the led strip will show red color.
3.Yello line for turn：when turn right，red color 25%brightness flow from left to right,when turn left,red 25%brightness from right to left.
4.Double flash ，red light will from midle flow two side with same speed,and in the middle will show red color long time.
5.break+turn：break and turn both have the signal,the red color flow and all bright,flow mode as 3 ,4.
Share This Product
Product Details
Features
- Adopt international leading manufacturer ’s chips high brightness width angle , color consistency, and stable performance.
- Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
- Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.
Dimension
Specifications
1 meter led strip Specifications
| Red,Ice blue | |||
Production Description:

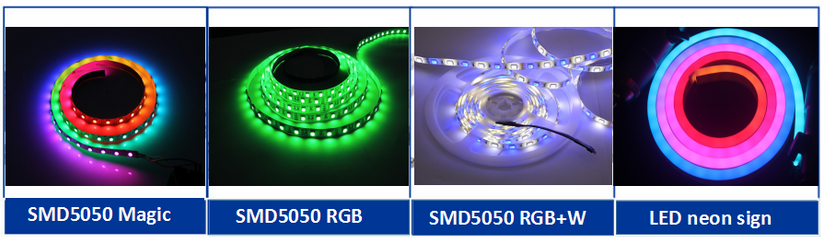

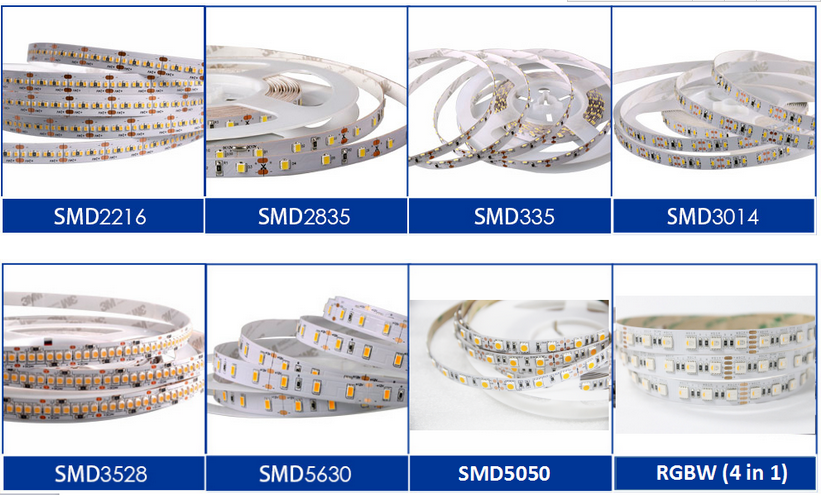

Related products
Applications
- 1.315 side emitting led strip light, nightclubs, shops, KTV, home, shopping mall, supermarket, building and any decorative lighting are etc.
2.Built-in SMD315 led chip, LED circuit easier to install and safety.
3.Flexibility PCB, even the place is curves or in the tight corners still easy to install.
4.Convenient installation: 3M adhesive tape in the PCB back, just paste as you want.
5.Different waterproof level, IP22 for indoor application; IP65 / IP66 for outdoor or rain place; IP68 can use for underwater ≤3m area.
6.Long working life with more than 2 years warranty.
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
Company Profile
Shenzhen WITOP TECHNOLOGY Co.,Ltd is a product R & D, manufacturing, sales and service LED lighting enterprises.
We has experienced in product development by our design team, the company has successfully developed various kinds of lights and lighting products,
1,Built-in IC led package ,ws2815 led,ws2812b led,apa102 2020 led,ws2813,sk9822,apa102…
2,Led strip:APA102, WS2813 ,SK6812, WS2801, LPD6803, LPD8806, WS2811, WS2812B, TM1809, DMX512 smart led strip and LED module , and 5050 ,3528 ,2835,335,5630 normal led strip etc .
3, Led project design,custom the length,the led type,led panel,music party,dance party and so on.
led products widely used in home decoration, garden landscape, stadiums, exhibition hall, exhibition hall, hotel, high-grade office buildings, upscale clubs etc.. Products are exported to America, Europe, Asia, Oceania, and other market.
