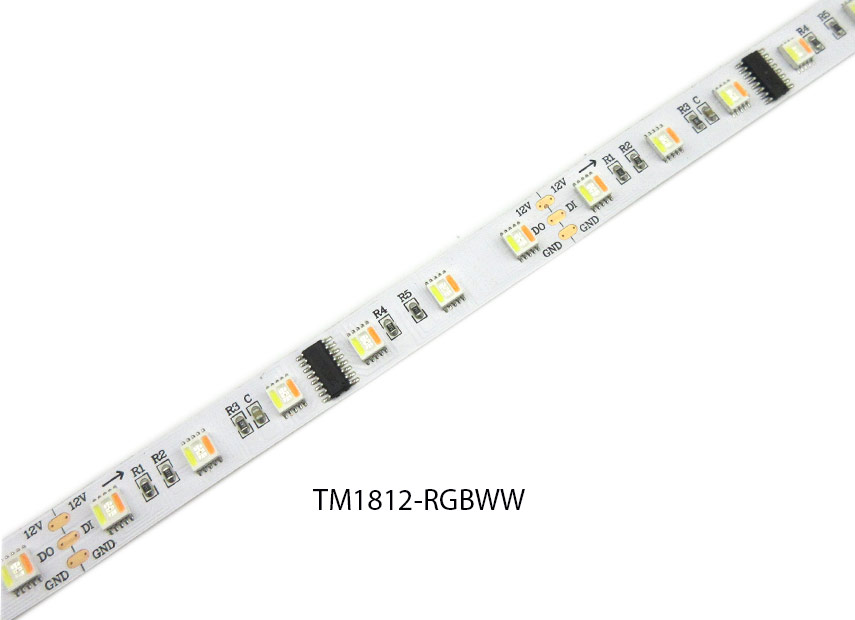

TM1812 RGBW-CCT LED Strip
RGBWW 12v 60LED/M 12MM Width
DC12V 5050 SMD TM1812 RGBWW can replace 5050 RGB Rgbw Cct led strip light
1,RGBWW = RGB + Cold White (6000-6500k)+Warm white(2800-3200k)
2, Superbright 5050 RGBWW LED Strip Light, high intensity and reliability,one 5050 led have 5 color,
rgb and white and wram white!
3, Continuous length, packed with 5 meter normally!
4, Back with a self-adhesive.
5,Cuttable every 3 LEDs along the cutting marks for 24v , according to your requirement.
6, Long life span 500,000+ hours
Share This Product
Product Details
Features
- DC12V 5050 SMD TM1812 RGBWW can replace 5050 RGB Rgbw Cct led strip light
1,RGBWW = RGB + Cold White (6000-6500k)+Warm white(2800-3200k)
2, Superbright 5050 RGBWW LED Strip Light, high intensity and reliability,one 5050 led have 5 color,rgb and white and wram white! - Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source.
- Use DC12V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.

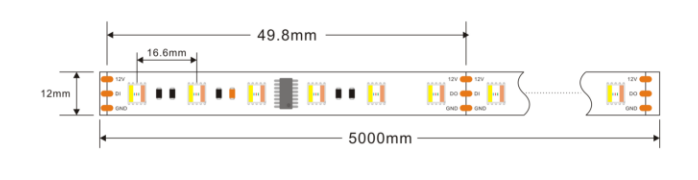

Dimension
Specifications
12v 60 led/m Black /white PCB digital full color TM1812 IC RGBW led strip
|
Model number
|
WTP-TM1812-RGB-CCT
|
||
|
LED TYPEE
|
TM1812 5050SMD LEDS
|
||
|
PCB color
|
white/black PCB
|
||
|
PCB Width
|
12mm
|
||
|
View angle
|
120 degree
|
||
|
Color
|
CCT RGB Full color | ||
|
POWER
|
24W/M
|
||
|
Voltage
|
DC12V
|
||
|
Installation
|
wiht 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20(non -waterproof /IP65(Silicon tube waterproof )
|
||
|
Package
|
5M/reel .with anti-static bag ,or customized
|
||
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
