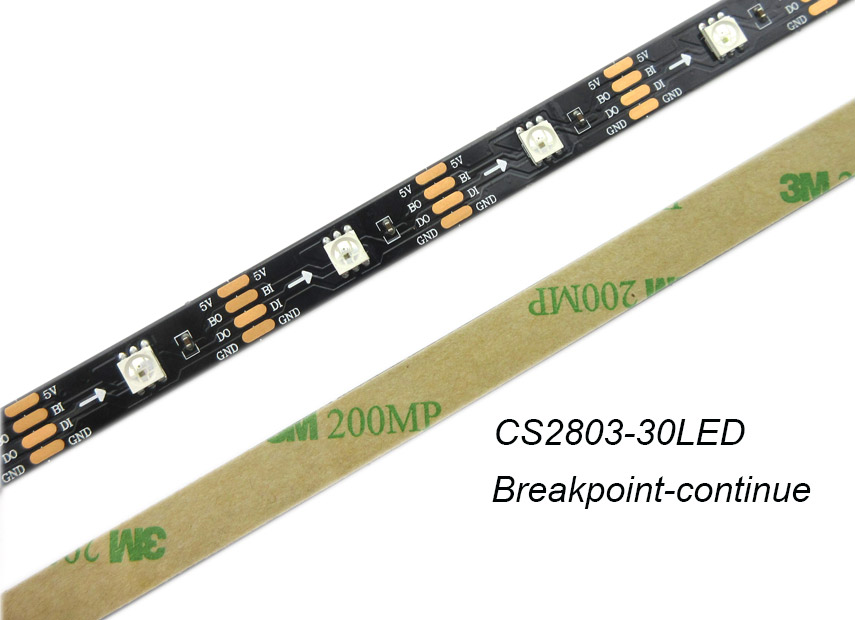

CS2803-30LED-Black
Addressable Break-point Continue LED Strip
RGB Pixel Strip Light—IC Built-in CS2813 Digital LED Strip
1.Each SMD 5050 has an IC(CS2813) inserted in ,each LED individually address controlled

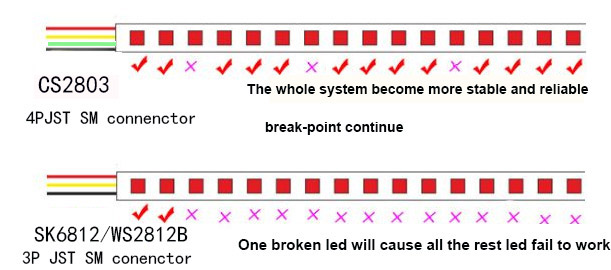

2.The most adavantage is one LED broken will not affect the other LED’s signal transmission
Share This Product
Product Details
Features

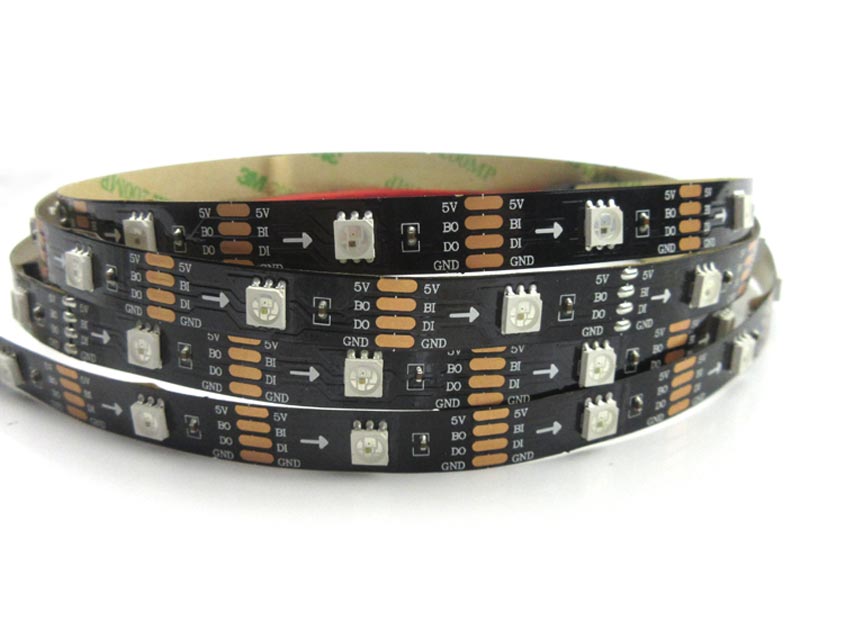

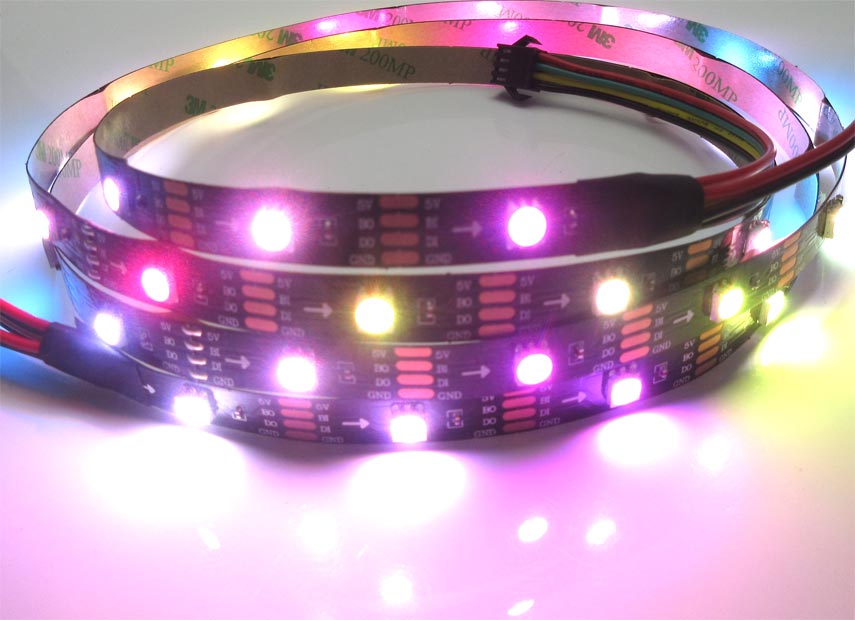

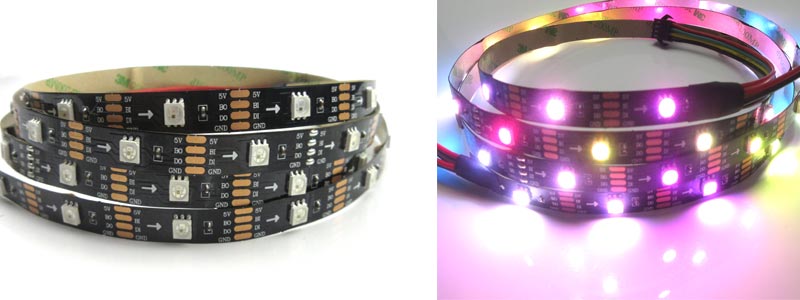

- 1. Addressable full color led strip
(CXS2803)——CS2803 IC built-in 5050 RGB LED chip.
2. Individually control :1 IC & 1 LED chip.
3. Standard Reel Lengt: 5 meter/roll, also can be customized.
4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
5. Sticky: with 3M adhesive on back side for sticky.
screw+silicon clip, or 3M adhesive back side.

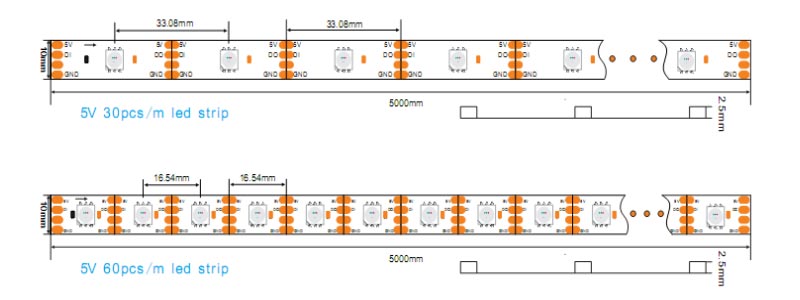

Dimension
Specifications
New Smart RGB Pixel Strip Light—IC Built-in CS2803 60LED Digital LED Strip
1 meter led strip Specifications
| Custom Lengths Available: | Yes |
| Input Voltage: | 5VDC |
| Max Power Consumption: | 9W per mtr |
| LED Quantity: | 30 per mtr |
| LED Classification: | Pixel RGB SMD |
| IC Type | CS2803 |
| Viewing Angle: | 120° |
| Standard Reel Length: | 5mtr |
| Operating Temperature: | -20 ~ +60°C |
| Storage Temperature: | -40~+80 °C |
| IP Rate: | non-waterproof,IP65,IP67,IP68 |
| Material: | Super slim flexible PCB |

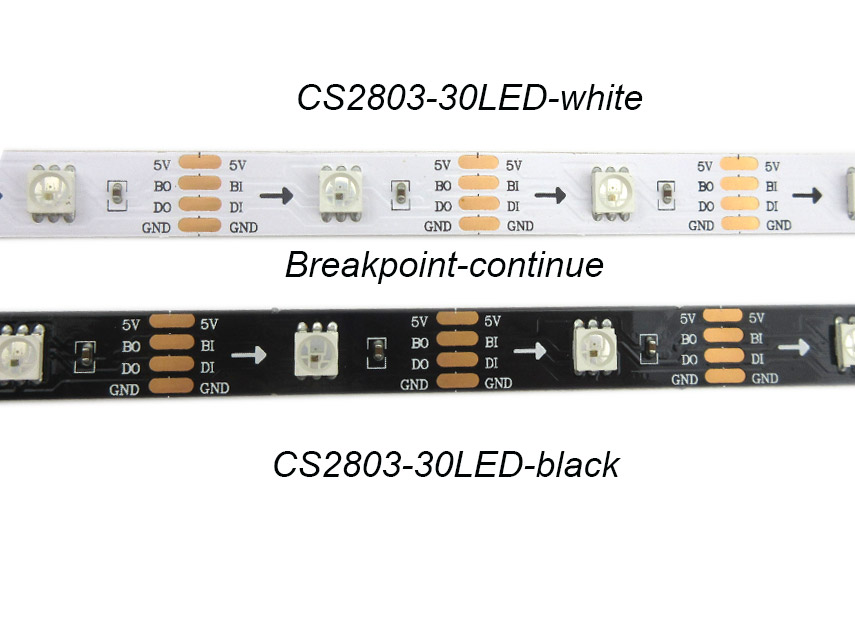

| PCB Color: | Black and White both avaliable |
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
