APA102-2020 Smd 2020 LED Chip Smallest Digital Rgb – APA102 2020

Micro led chip apa102 2020

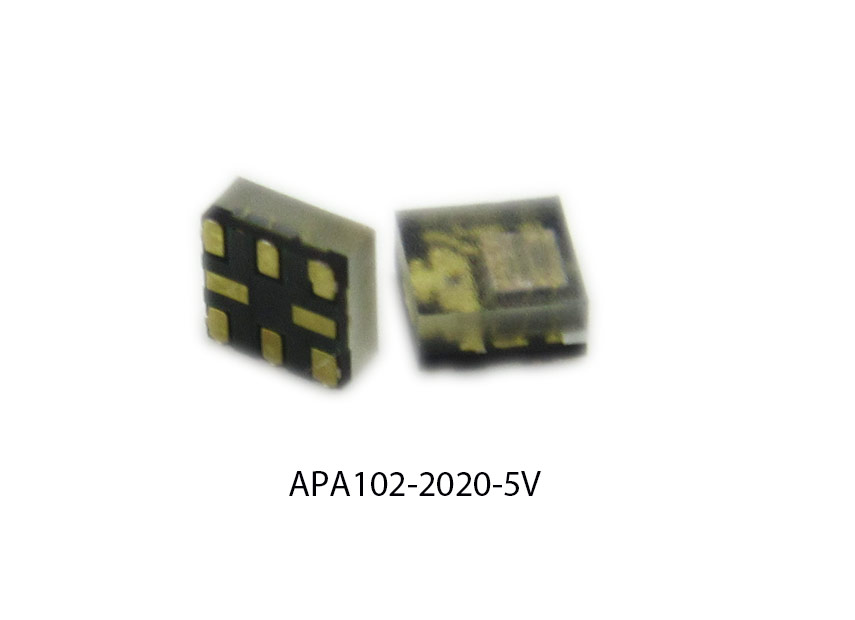

APA102 2020, DC5V lamp beads

Features:

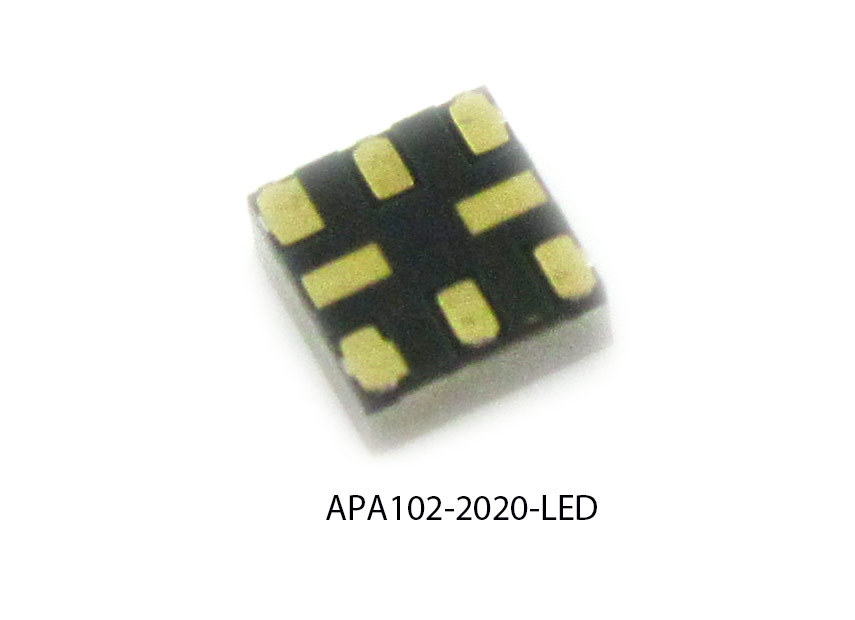

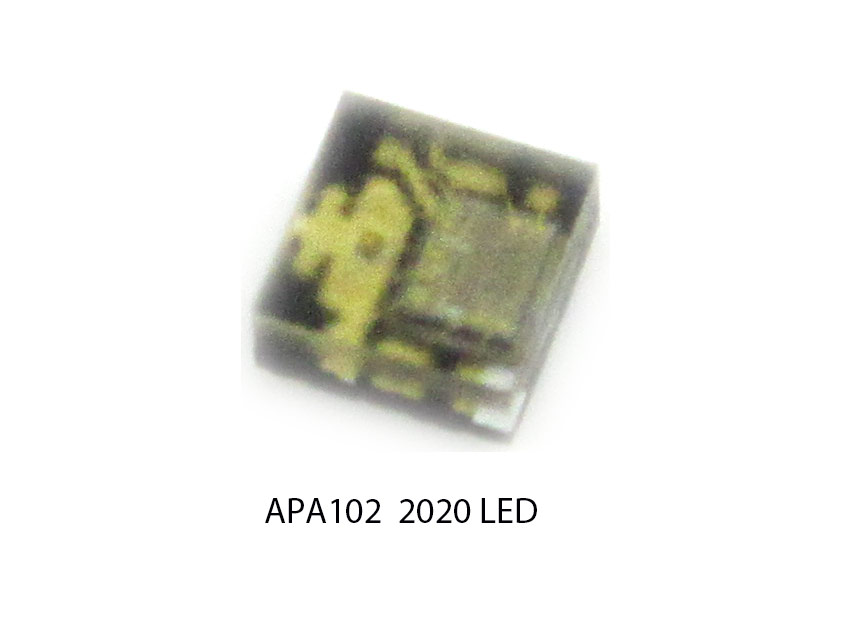

APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
It has very little size with 2.0mm*2.0*0.9mm,which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3apa102 2020 also use the APA102 as the driver IC to control the color dimming.
Also high brightness too,for each apa102-2020 led is 0.1W.

Share This Product

Product Details

Features

New design apa102 2020 smallest digital rgb led.

RGB Single point of control
8Bit(256 level)color set
5Bit(32level)brightnessadjustment
ICinput voltage 4.5v”7.5v
20mA,Contant current output
Anti-Reflectionresin
View angle : >=120 (min 50% brightness)
High contrast

Absolute Maximum Rat:

Supply voltage -0.3 to 0.6V
Input voltage VSS -0.3 to VDD +0.3V
Operation temperature -40 to 85 ℃
Storagetemperature -40 to 85℃
Note:Stress abovethose listed maycause permanent damagetothe devices.

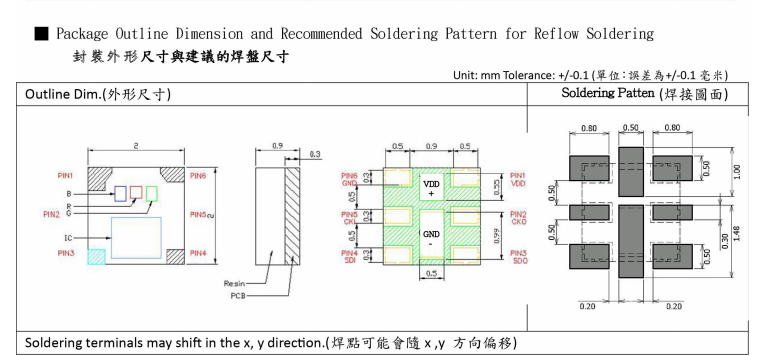

Dimension

apa102 2020 rgb led apa102 2020 led

Specifications

1. APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.

2. It has very little size with 2.0mm*2.0*0.9mm,which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.

3. apa102 2020 also use the APA102 as the driver IC to control the color dimming.

Also high brightness too,for each apa102-2020 led is 0.2W.

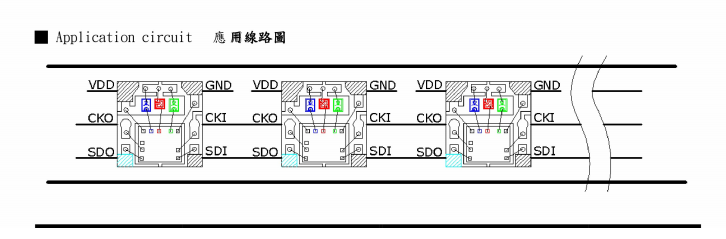

4. It can be widely used in apa102 2020 digital rgb led strips,apa102 2020 dotstar,also apa102 led pixels,and the full color led display.

Applications

application

City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
