Programmable Addressable Warm White Amber Pixel – SK6812 WWA Led Strip

SK6812 WWA ADDRESSABLE LED STRIP LIGHT

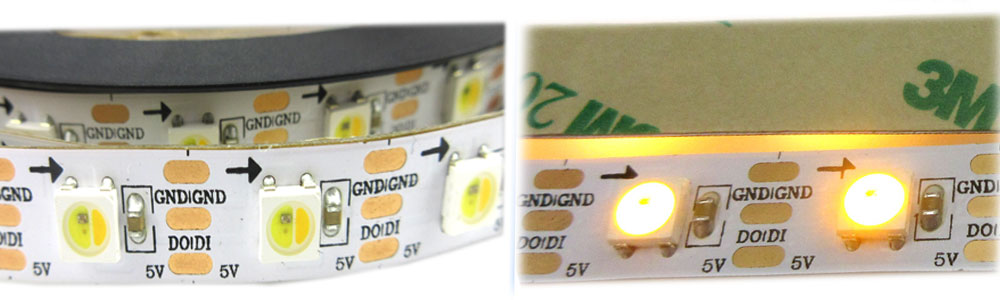

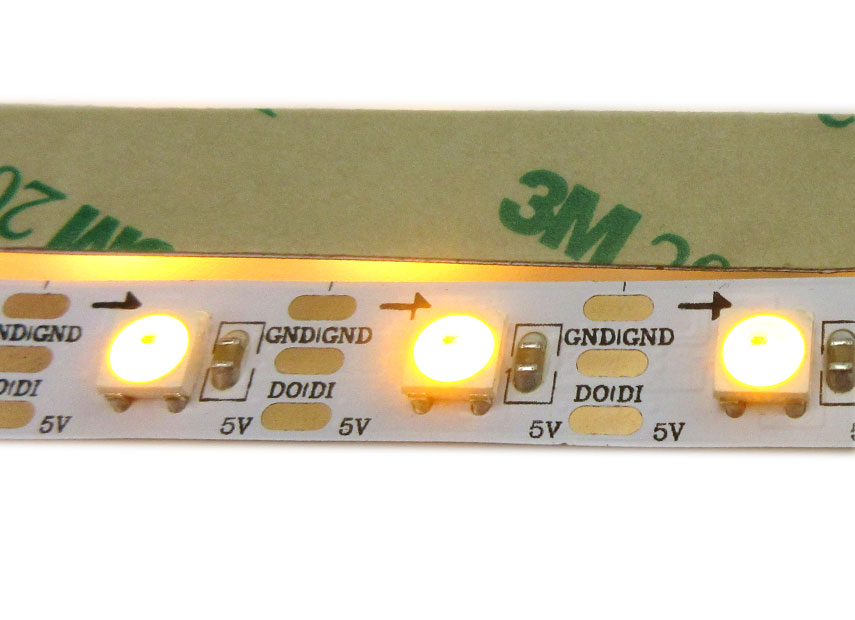

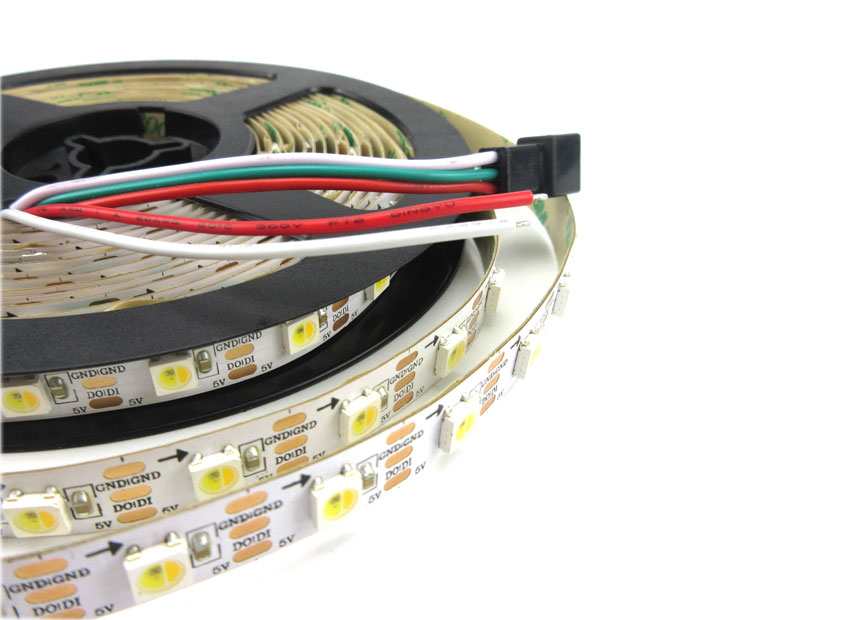

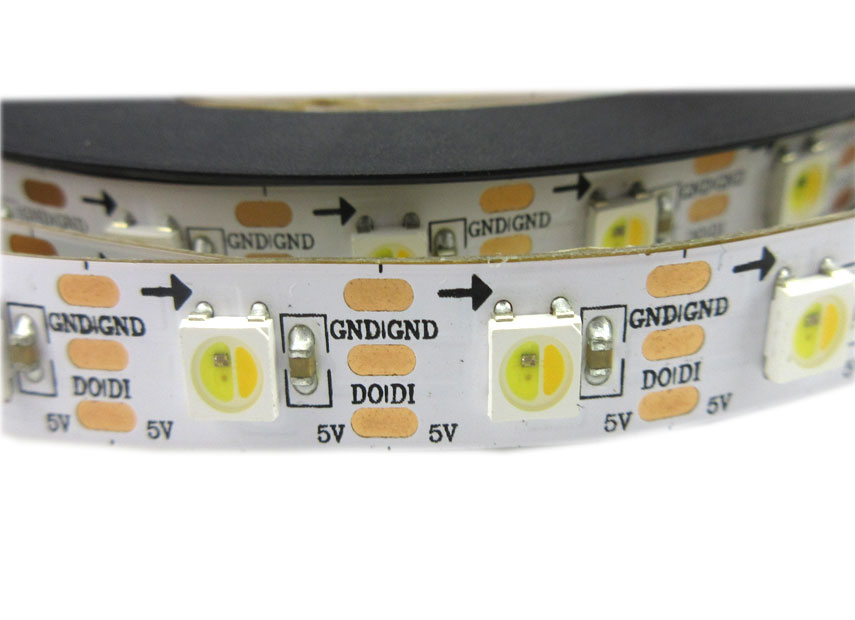

SK6812 WWA Addressable LED Strip

this product is a single point using SK6812-WWA chip to do the control soft light, a lamp for a pixel.
this product has 3 advantages: color, amber (2000K) warm white (3000K) cold white (6000K)
high brightness, can realize full-color water, chase, scan effect
is widely used in hotel, KTV and other interior decoration, jewelry lighting, outdoor lighting
up to 4 meters in series, it is strictly prohibited
the thickness of the power cord should be based on the actual maximum current, the product power, the wiring length (not exceeding 5 m) and the pressure drop of the low voltage transmission line.

Share This Product

Product Details

Features

For SK6812 wwa led

1, SK6812 is a smart White Warm Amber LED control circuit and light emitting circuit in one controlled LED source, integrated in a package of 5050 led components.

2, 256 level gray scale adjustable built-in data shaping circuit Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

3, LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages

4, The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation Widely use for Full-color module, Full color soft lights LED strip LED decorative lighting, Indoor/outdoor LED video irregular screen.

The product desciption

Product Name	sk6812 WWA Led strip
color	WWA
Power Consumption	18W/Meter
Work Voltage	DC5V
IC Type	sk6812
LED Qty per meter	60pcs SMD5050, 60pixels/m
PCB Color	Black/white/yellow
Dimension	L 5000W10H3mm
Standard length	5meter/roll, also can be customized
Waterproof Grade	IP40/IP65/IP67/IP68
Work Temperature	-30-+60°C
Life-span	50,000H
Certificate	CE&RoHS
Warranty	2 years

Dimension

dimension-a1 dimension-a2 dimension-a3 dimension-a4 dimension-a5

Specifications

1 meter led strip Specifications

specifications-1a

Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.

Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time	light fades rate
500H	0%
1000H	0%
2000H	0.5%
4000H	1.2%
6000H	2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Diagram

Strip cut schematic

diagram_02

LED strip wiring diagram

diagram_04
diagram_05
diagram_06
diagram_07

LED strip wiring diagram

diagram_09
diagram_10
diagram_11
diagram_12

Installation wiring diagram

diagram_14
diagram_15
diagram_16

IP62,IP65 the installation diagram

diagram_18
diagram_19
diagram_20

IP67,IP68 the installation diagram

diagram_23 diagram_24

Applications

application

City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

Notes

Please read the specifications and precautions carefully before installation
Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
correct or not , so that avoid the product been burned
This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
