CS2803 Addressable RGB LED STRIP-30LED
5v CS2803 Addressable LED Strip
WS2812B Updated CS2803 led pixel strip-30LED

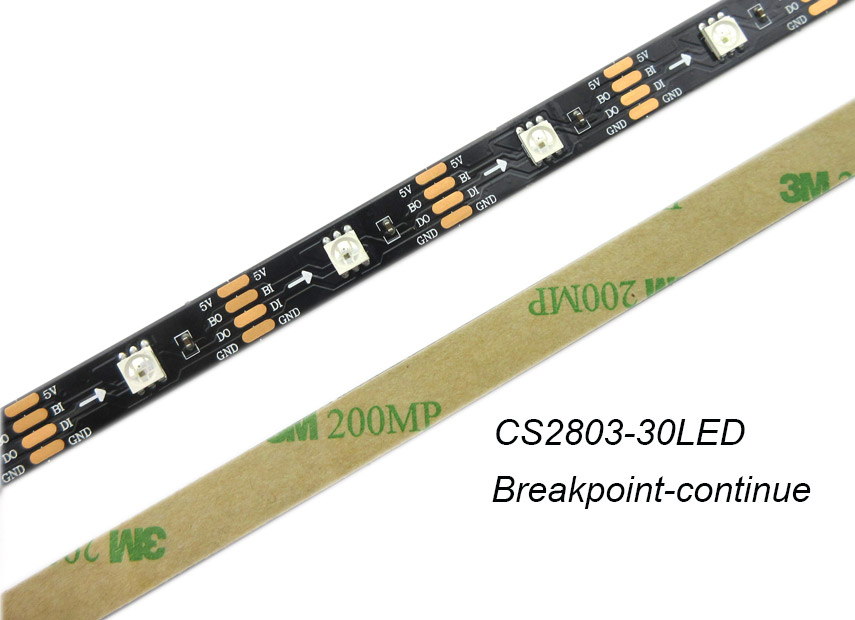

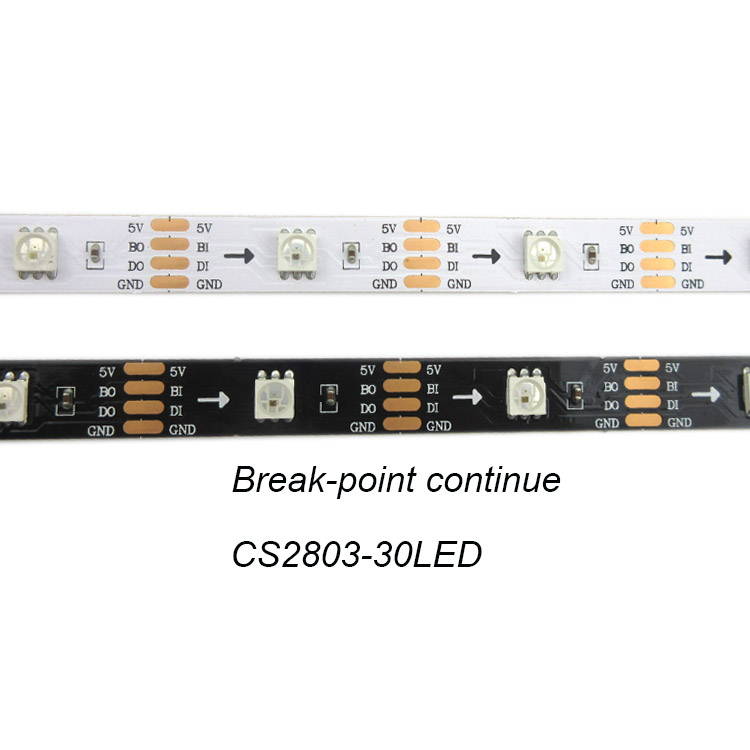

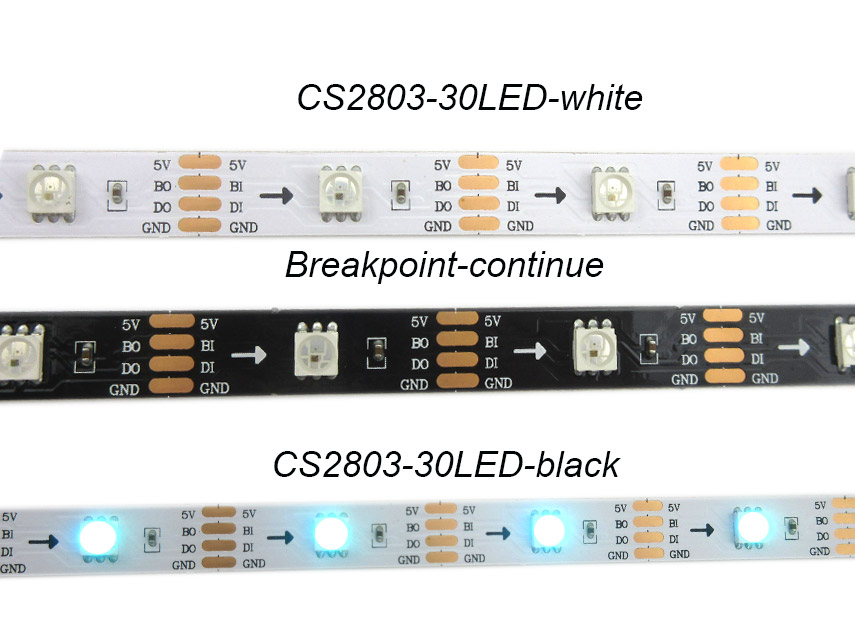

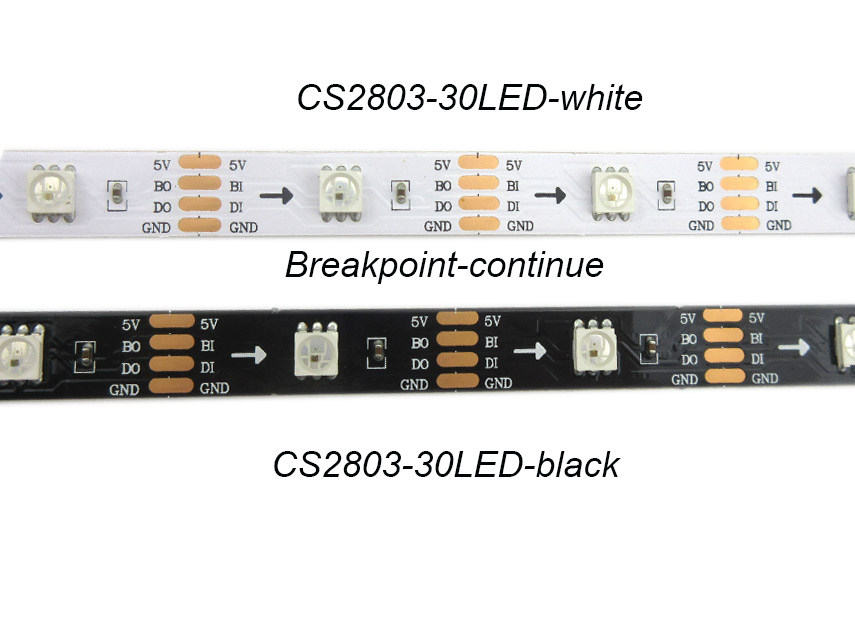

1. CS2803 led strip,Breakpoint Continue,one led broken,no affect other the behind led work.
2. One CS2803 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs,Each LED is individually addressable.
Share This Product
Product Details
Features

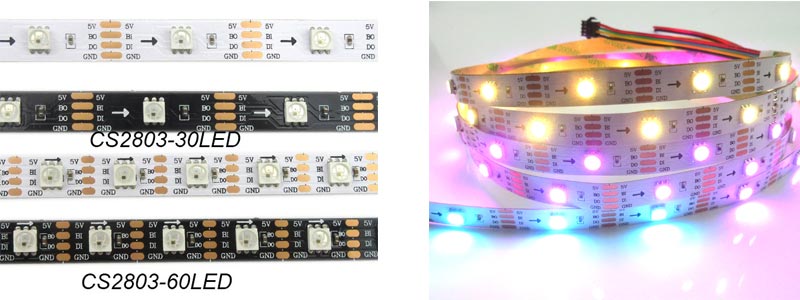

CS2803 upgraded 5V 60 leds Built-in IC breakpoint continues transmission full color smd 5050 rgb led strip
1,LED full color 5050RGB built-in IC CS2803b breakpoint continue to transmit
2,5V low-voltage ,safe and reliable,
3,a single bad point will not affect the use of other lights.
4,CS2803b refresh rate of up to 2000,
5,all effects can be easily realized in small single-chip
Dimension
Specifications
1 meter led strip Specifications:
1, light source: SMD LED;
2, IC Model: (CS2803 IC, 1 IC control 1 LED lights);
3, Gray level: Level 256,
4, LED number: 30 lights/meters,9W/M, every 1 led for a group, you can cut;
5. Luminous angle: 120°;
6, luminous color: can be adjusted by the controller, white, red, yellow, blue, green, etc.
7. Standard working voltage: DC 5V;
8. Power: 2w±10%/m;
9, waterproof Grade: Not waterproof (IP33), dispensing (IP65), casing (IP67), casing solid filling glue (IP68), etc.
10, our company can provide matching magic color controller and power supply
11. A data line, two power cords, 10MM wide white board, 256 levels of gray, can be achieved through the controller arbitrary effect. Can also be achieved, text, numbers, English, pictures, animation, and so on.
Main Features
1. Control principle: An IC control 1 LEDs to form a circuit (a group), the controller controls the circuit inside the FPCB through the IC, thus controls the different effect of the LED strip change; such as flashing, chasing, jumping, , water, simulated lightning, etc. the effect of this section is not limited to the current controller built-in 94 kinds of effects, can be written according to customer needs, in the form of screen can be displayed, text, letters, pictures, animation, and so on.
2, environmental safety: The use of high-quality SMD 5050 LED. It has the characteristics of small power consumption, low heat generation, no glare, shock resistance and so on. Low voltage DC 5V power supply, high safety and reliability.
3, Long life: the average life expectancy of 80,000 hours.
4, cutting, welding convenient freedom: Each group of LED can be composed of a circuit, the above tangent to arbitrary truncation and welding to meet customer requirements of the various length requirements.
5, Soft: The use of soft FPCB plate for the substrate, can be arbitrary docking, bending, cutting and arbitrary fixed in the concave and convex surface.
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
Applications :
1, hotel/nightclub/ktv and other places of the polygon wall, drip-shaped smallpox, up the decoration atmosphere;
2, buildings, advertising walls, signboards, festivals and other decorative areas on the city’s beauty/lighting effect;
3, Home decoration lighting (staircase, frame, bar, wine cabinets, wardrobe, TV cabinets, diy home decoration …) );
4, Car Beauty (body, car bottom …) );
5, the landmark building pavilions, bridges, parks and other contours of the sketch, played a decorative lighting effect.
6, lighting signals (such as various light-emitting indicator signs)
7. edge-lighting Transparent or diffused material
8. Support Underwater Lighting Engineering
9. Edge of Awning and bridge Arch/amusement Park/theatre/aircraft cockpit lighting
