Normal RGBW LED Strips Light
24v Black PCB Rgbw LED Strip
Top quality 5050 rgbw led strip for hotel lighting 5050rgbw
1, Superbright 5050 RGBW LED Strip Light, high intensity and reliability.

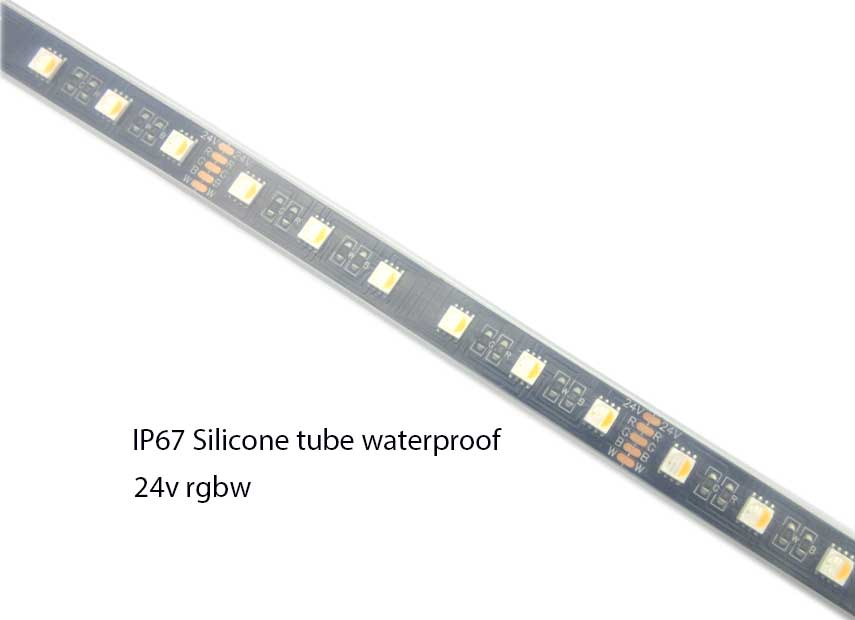

2, Back with a self-adhesive,If ip67(silicone tube)waterproof,we will supply the the fastener.
4,Cuttable every 3 LEDs (12v),6led(24v) along the cutting marks, according to your requirement.
5, Long life span 500,000+ hours
6, Flexible ribbon for curving around bends
7, Completely smooth and even light spread, solving the uneven luminous problem
8,Ultra-bright but running at low temperature
Share This Product
Product Details
Features
RGBW SMD5050 led strip light (4 chips in one led )
1)Use super bright SMD5050 as lighting sources;
2)300/360/420 Leds/480Leds 5meters;
3)Size:5000x12mm;
4)Colors:RGB+Warm White/Natural White/Cool White;
5)Input Voltage:DC12V/24v;
6) Max Power:96W/115W/134W/153W;7)Can be cut by 3LEDs(12V)6 LEDs(24v);
8)With 3M adhesive tape back, easy for installation;

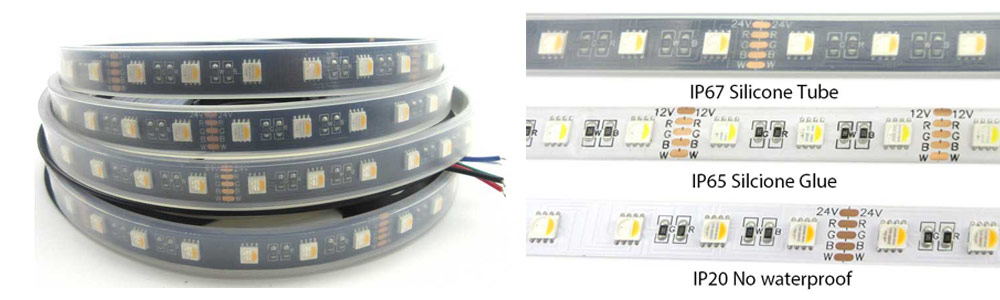

9)Can be changed into waterproof IP65/IP67/IP68;
10) PCB Board can be chosen from Copper or White.
Specifications
Specifications:
|
LED Light Source |
SMD5050 60LEDs/M |
SMD5050 96LEDs/M |
|
LED Chip |
5050 R, G, B W, 4 in 1 LED chip |
5050 R, G, B W, 4 in 1 LED chip |
|
Power |
19.2W/M |
30.72W/M |
|
PCB Color |
White/Black PCB |
White/Black PCB |
|
PCB Width |
12mm |
12mm |
|
Voltage |
DC12/24V |
DC24V |
|
Color Tem |
RGB+3000K/6000K |
RGB+3000K/6000K |
|
LED Color |
RGB+CW/WW |
RGB+CW/WW |
|
LED Lumen |
3000-3500mcd /Pcs LED |
3000-3500mcd /Pcs LED |
|
IP Rate |
IP20, IP65(Silicon-tube waterproof) |
IP20, IP65(Silicon-tube waterproof) |
|
Working Environment |
-20~40 |
-20~40 |
|
Storage Condition |
-40~80 |
-40~80 |
|
Warranty |
3 years |
3 years |
|
Certificate |
CE, RoHS |
CE, RoHS |
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
