DC12V ADDRESSABLE LED STRIP LIGHT

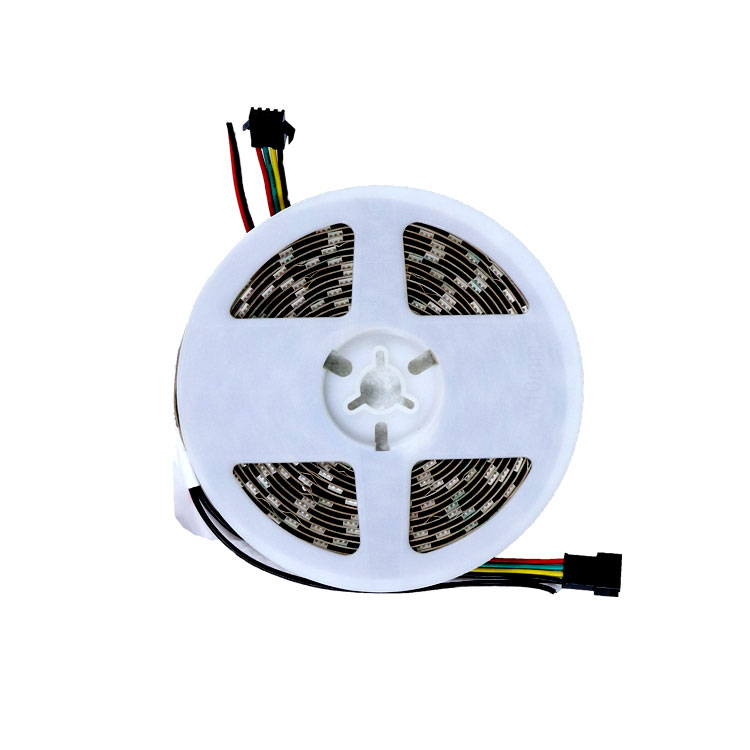

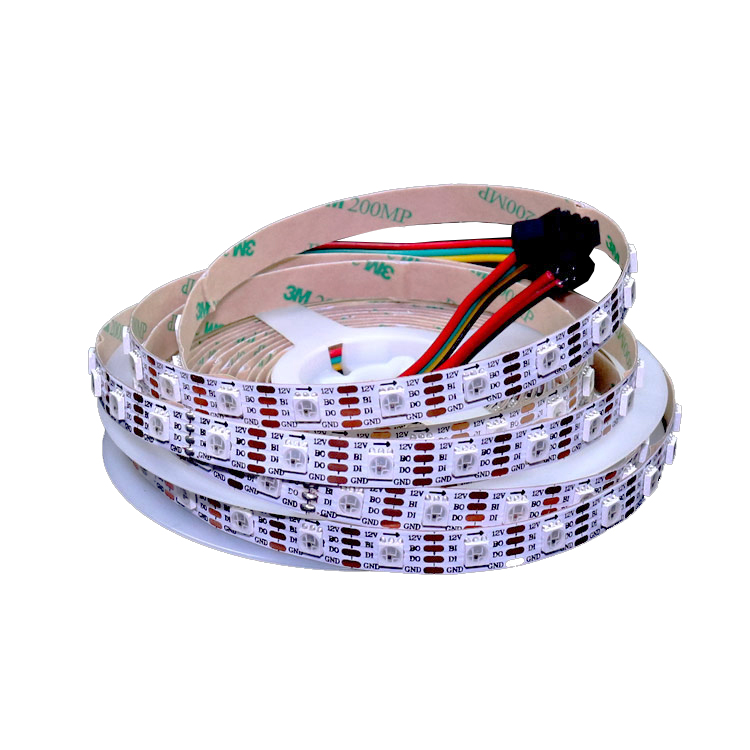

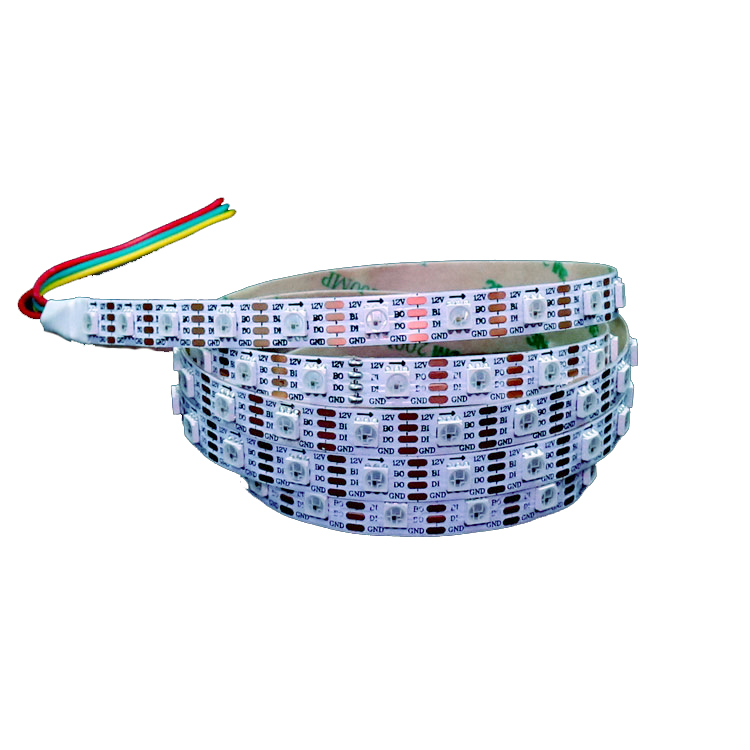

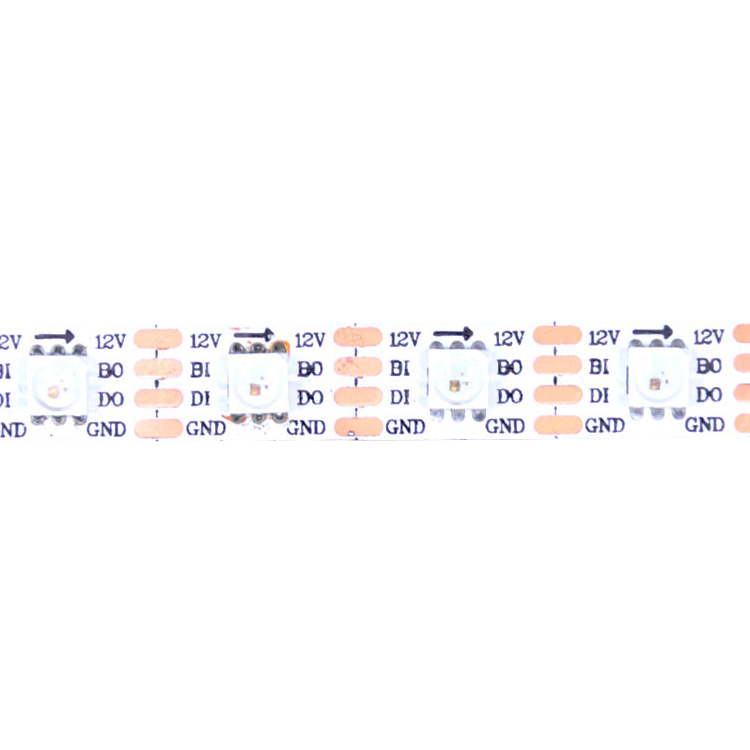

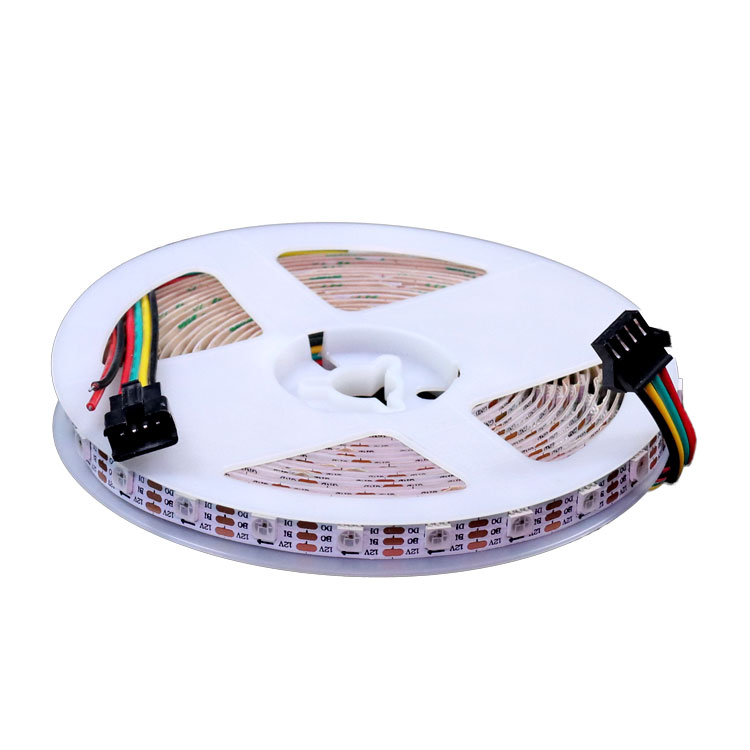

WS2815 LED STRIP
> Breakpoint continuous, In case of single pixel damage, the next pixels will keep working
> All electronic components are integrated in a 5050 lamp
> Achieve 256 level brightness display, and 16777216 color true color display port scanning frequency at 2 KHz/s.
> Transmission distance between any two points no more than 5 meters without any additional signal amplifying circuit.
> If the refresh rate is 30 frames / sec, the number of cascades is more than 1024 points.
> The speed of data transmission is up to 800Kbps. The color of the light is very consistent and the price ratio is high.
Share This Product
Product Details
Features
Different from CS8812,WS2815 is built in electric capacity
- DC12V individual addressable RGB led strip
- One led broken,other pixels still work normal
- Never worry one pixel broken will affect whole project
- 5 meters no voltage drop,can connect 10 meters.

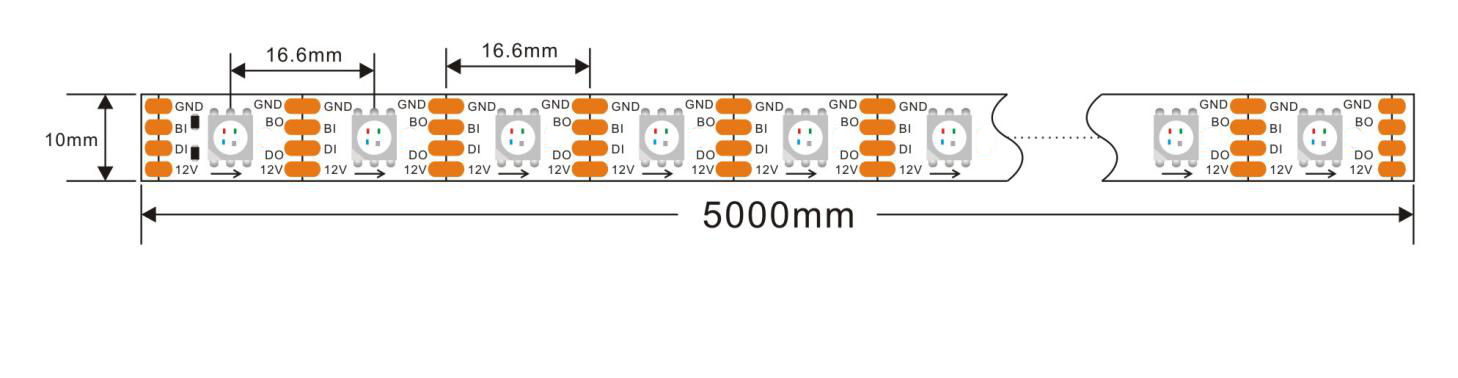

Dimension
Specifications
1 meter led strip Specifications
| Model | WS2815-60leds/M |
| LED QTY | 60LEDs/M |
| LED Type | SMD5050 |
| Voltage | DC12V |
| Power | 14.4W/M |
| Feature | 12V Individually Control,IC built in |
| PCB Color | White |
| PCB Width | 10mm |
| Other size | Can be customized |
| Waterproof | IP20(No waterproof),IP65(Silicone Glue waterproof),IP67(Tube waterproof),IP68(Silicone Glue+Tube waterproof) |
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
