5050 rgb ww pw led strip

5050 rgb ww pw led strip

84led 5050 RGBW LED Strip

The Features of DC 24V 5050 RGBW rgb ww pw led strip.

1, Superbright 5050 RGBW LED Strip Light, high intensity and reliability.
2, Back with a self-adhesive,If ip67(silicone tube)waterproof,we will supply the the fastener.
4,Cuttable every 6led(24v) along the cutting marks, according to your requirement.
5, Long life span 500,000+ hours
6, Flexible ribbon for curving around bends
7, Completely smooth and even light spread, solving the uneven luminous problem
8,Ultra-bright but running at low temperature
Share This Product

Product Details

Features

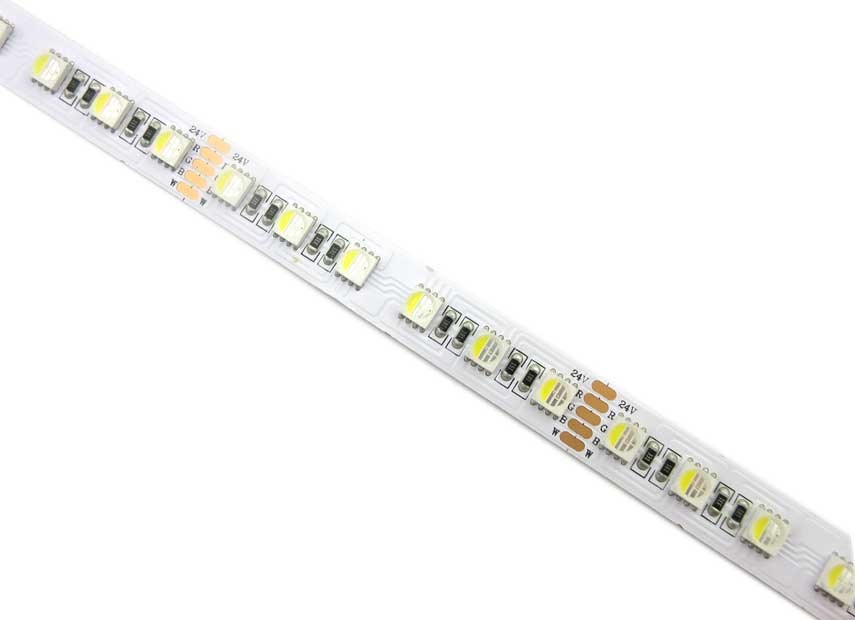

5050 rgbw led strip

  • 1. Use special Super bright SMD5050 LED as lighting source.2. 150/300/420/480 PCS LED — 5 Meters3. Size:5000X10mm for 30 60led/m,5000X12mm for 84led/m  96led/m.

    4. Available Color : RGB+Warm White, RGB+Nature White, RGB+ Cool White

    5. Input Voltage DC12V/DC24V

    6. Max power :12W/M

    7. Can be cut by 3 SMD LED for 12V, by 6 SMD LED for 24V.

    8. With 3M adhesive tape back, easy for installation if ip20(non-waterproof).

Specifications

5050 rgbw 24v 84led/m rgb ww pw led strip

Item Type 5050 rgbw led strip
Model WITOP-5050RGBW-80led-24V
LED Type High Brightness SMD 5050
Beam Angle 120o
Certification CE, ROHS
CRI Range 80-100
Cuttable Increments  100mm (24vdc)
Dimensions(mm) 5000 x 12(L x W)
Environment, IP Rating Indoor, IP20 IP54 ip65 ip67 ip68
Input Voltage 24V DC
LED Qty per meter 84
LED Spacing 11.9mm
Max Run 5 meters
Color Temperature 2700K/3000K/4000K/6000K
Warranty 2 years
Related product

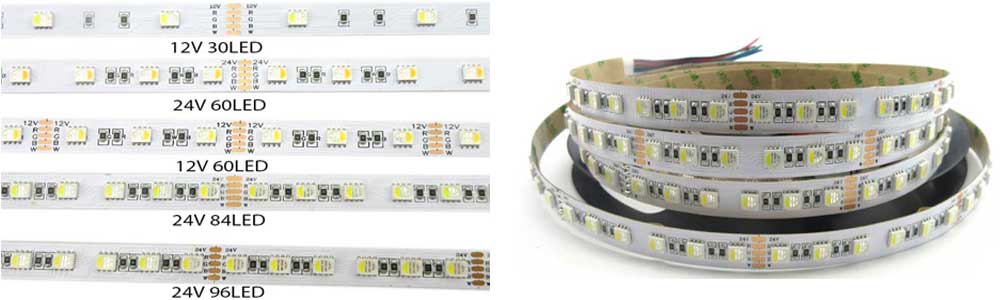

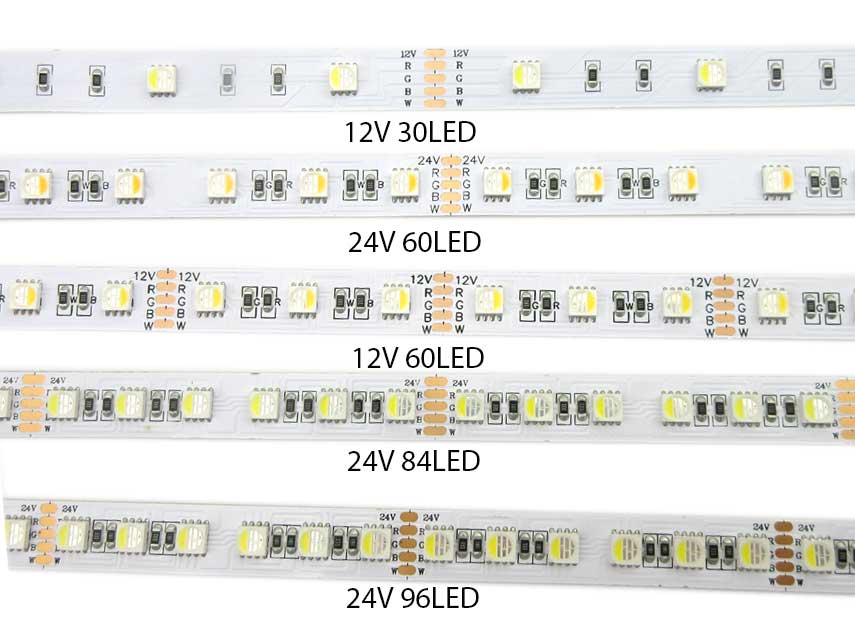

Part No LED Qty Voltage Power Color CRI
WTP-5050-RGBXW SMD5050

30/m

DC12V

DC24V

9.6W/m RGB+ Warm White ≥80
RGB+ Nature White
RGB+ Cool White
WTP-5050-RGBXW SMD5050

60/m

DC12V

DC24V

19.2W/m RGB+ Warm White ≥80
RGB+ Nature White
RGB+ Cool White
LA-FA-5050-RGBXW SMD5050

84/m

DC24V

20.16W/m RGB+ Warm White ≥80
RGB+ Nature White
RGB+ Cool White
Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
