APA102c Addressable Rgb LED Strip

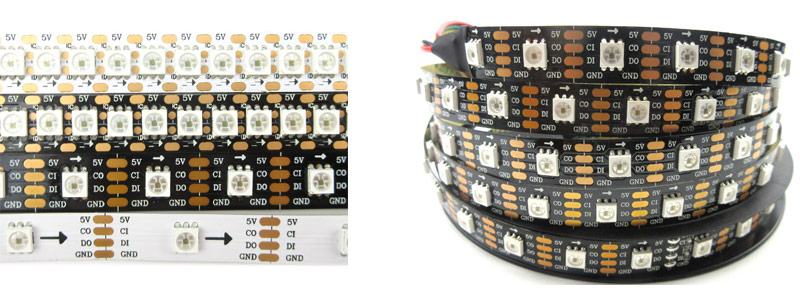

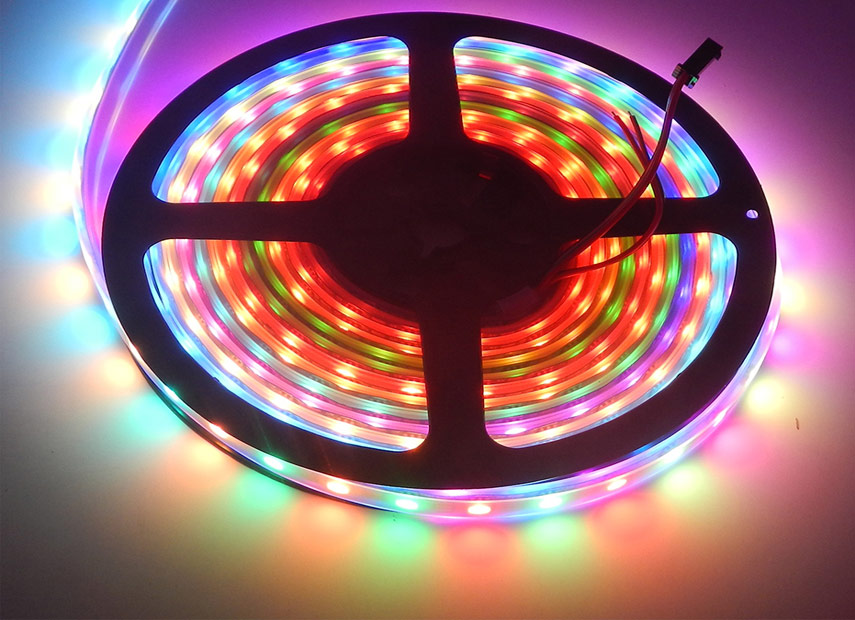

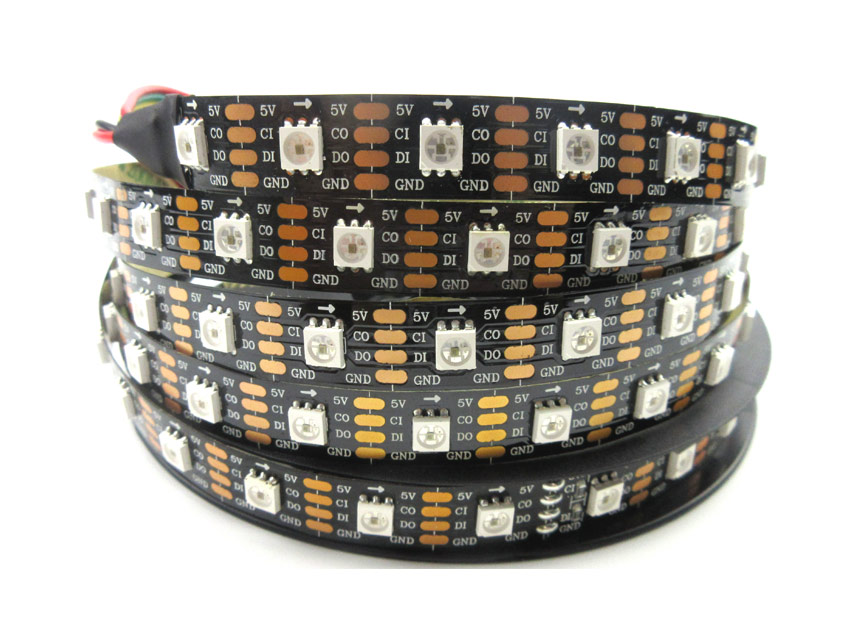

APA102 DC5V 60 LED Rgb LED Strip
The features of Addressable didital rgb m one roll APA102 60LEDs/m Smart led pixel strip apa102 5050
1, Control IC included,supporting numerous color-change effects
2, Absolutely addressable,each IC built inside RGB LED
3, Each IC control one leds
4, APA102 have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5, Grey scale 256, 256(Red)*256(Green)*256(Blue)=16777216 colors that APA102 LED can change. Keep LED show smooth color effect when changing color.
Share This Product
Product Details
Features
Product name:APA102 LED Pixel Strip
Work voltage:DC5V
LED Chip : SMD5050 RGB LED with built-in improved version of APA102 IC
IC Type : APA102(1 IC drives 1 led chip)
Color: Full color RGB, dream color changing;
Power : 30leds/m—-9watt/meter
60leds/m—-18watt/meter
144leds/m—-43.2watt/meter
Grey scale:256.
FPCB color: Black/White
FPCB Width:10mm(30LEDs/m) , 12mm(60LEDs/m,144LEDs/m)
Package:in anti-static bag,with 3M adhensive tape on the back(Except the Waterproof in SiliconTube)
Lighting angle: 120degree
Life time: 50,000hours

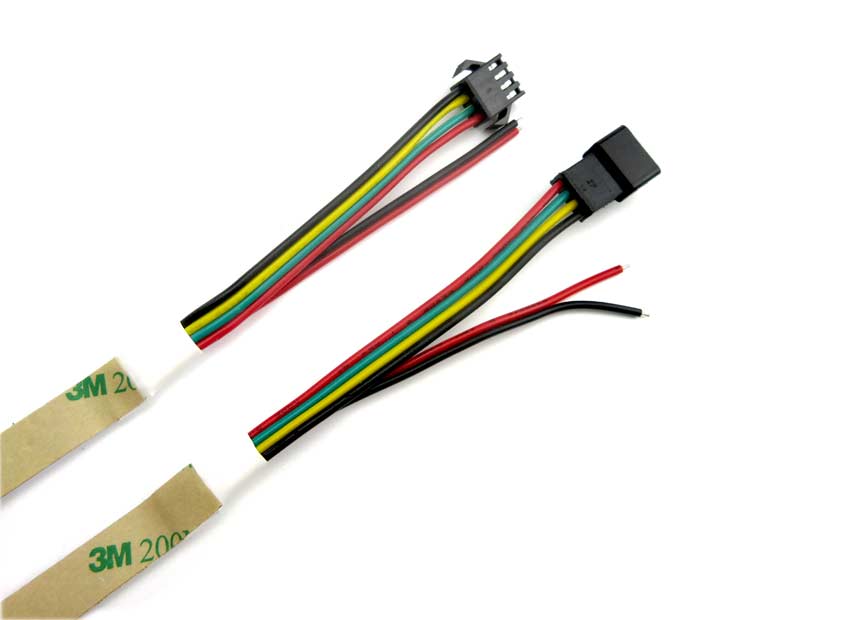

Connection: VCC: Red wire; GND:Black wire; DAT:Green wire ; CK:Blue wire

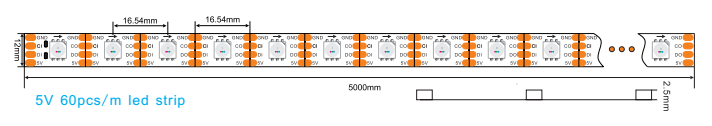

Dimension
Specifications
60Pixel/m 60leds/m DC5V APA102 RGB LED Strip
| Item Number | HY-5050-60 |
| LED Pixel Quantity60 | PCS SMD5050/M,60pixel/m 1 IC=1 Pixel |
| IC Type | APA102C (IC Built in SMD5050 RGB LED) |
| Wattage | 18W/M |
| PCB Width | 12MM |
| Length/Reel | 5M/Reel, strip length can be customized (Both end with JST Connector and power lead wire) |
| Working Voltage | DC5V |
| Package | Anti-Static Bag |
| 4 Wire Output | Data ,Clock ,GND ,Anode |
| IP Grade | IP20:Non waterproof with Strong Adhesive 3M tape on the back |
| IP65 Soft silicone glue cover waterproof with Strong Adhesive 3M tape on the back | |
| IP66 Soft Silicone tube waterproof | |
| PCB Color | White ,Black |
| View Angle | 120° |
| Operating Temperature | -20 ~ +40°C |
| Storage Temperature | -40 ~ +80°C |
| Light Color | Addressable full color |
| Product Warranty | 2 Years |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Related Product
The compared of APA102 30leds/m, 60leds/m, 144leds/m:
| TYPE | 30LEDs/m | 60LEDs/m | 144LEDs/m |
| IC | APA102C | APA102C | APA102C |
| PCB Width | 10mm | 12mm | 12mm |
| Standard Length | 5meter/roll | 5meter/roll | 1meter/roll |
| PCB color | white/black | white/back | white/black |
| Voltage | DC5V | DC5V | DC5V |
| Watts | 7.2W/M | 14.4W/M | 34.56W/M |
| Cutted | per 1 LED | per 1 LED | per 1 LED |
