5050 RGBW Led Strip 24V 60LED/M – RGBW RGBWW LED Strip

5050RGBW LED LIGHT

DC24V RGBW 60 LED

The Features of DC 12V /24V 5050 RGBW colorful Flexible led strip
1, Superbright 5050 RGBW LED Strip Light, high intensity and reliability.
2, Back with a self-adhesive,If ip67(silicone tube)waterproof,we will supply the the fastener.
4,Cuttable every 3 LEDs (12v),6led(24v) along the cutting marks, according to your requirement.
5, Long life span 500,000+ hours.
6, Flexible ribbon for curving around bends.
7, Completely smooth and even light spread, solving the uneven luminous problem.
8,Ultra-bright but running at low temperature.

Share This Product

Product Details

Features

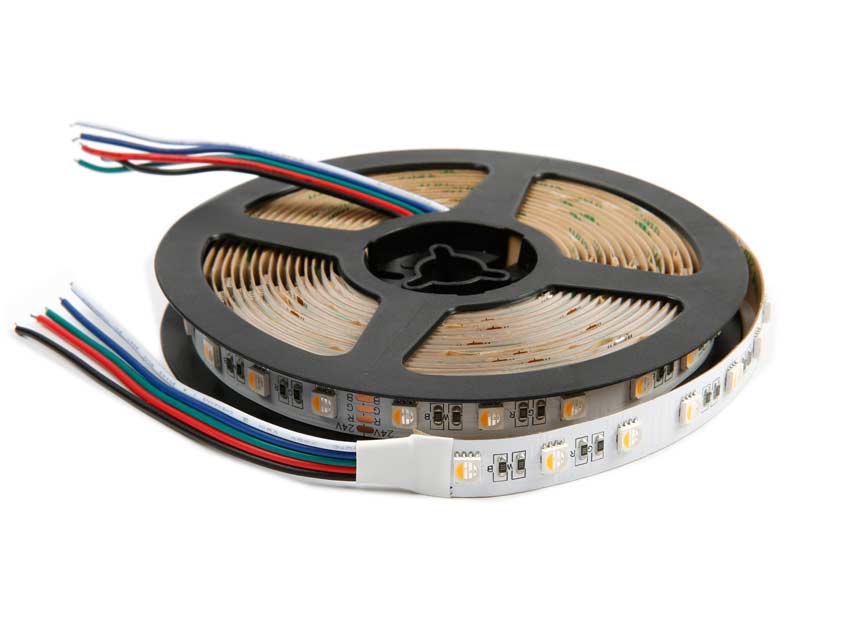

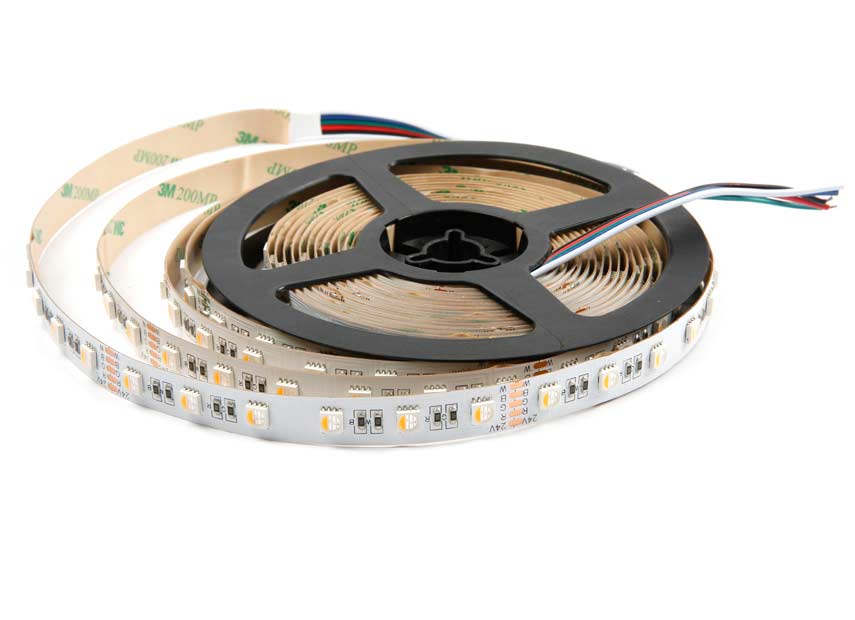

5050 warm white rgbw rgb led strip

1. Use special Super bright SMD5050 LED as lighting source.2. 150/300/480 PCS LED / 5 Meters3. Size:5000X10mm for 30 60led/m,5000X12mm for 96led/m.
4. Available Color : RGB+Warm White, RGB+Nature White, RGB+ Cool White
5. Input Voltage DC12V/DC24V
6. Max power :12W
7. Can be cut by 3 SMD LED for 12V, by 6 SMD LED for 24V.
8. With 3M adhesive tape back, easy for installation if ip20(non-waterproof).

Specification

5050 RGBW LED Strip Light RGB LED Flexible Strip Waterproof

Item Type	5050 rgbw led strip
Model	WITOP-5050RGBW60-12/24V
LED Type	High Brightness SMD 5050
Beam Angle	120^o
Certification	CE, ROHS
CRI Range	80-100
Cuttable Increments	50mm (12vdc) 100mm (24vdc)
Dimensions(mm)	5000 x 12(L x W)
Environment, IP Rating	Indoor, IP20 IP54 ip65 ip67 ip68
Input Voltage	12 VDC/ 24V DC
LED Qty per meter	60
LED Spacing	16.67mm
Max Run	5 meters
Color Temperature	2700K/3000K/4000K/6000K
Warranty	2 years

Applications

application

City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

Notes

Please read the specifications and precautions carefully before installation
Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
correct or not , so that avoid the product been burned
This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven

Note more

Part No	LED Qty	Voltage	Power	Color	CRI
WTP-5050-RGBXW	SMD5050 30/m	DC12V DC24V	9.6W/m	RGB+ Warm White	≥80
RGB+ Nature White
RGB+ Cool White
WTP-5050-RGBXW	SMD5050 60/m	DC12V DC24V	19.2W/m	RGB+ Warm White	≥80
RGB+ Nature White
RGB+ Cool White
LA-FA-5050-RGBXW	SMD5050 96/m	DC12V DC24V	30.7W/m	RGB+ Warm White	≥80
RGB+ Nature White
RGB+ Cool White

FAQ

Q1: Can I have led strip samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Which colors of led strip light LA Lighting manufacture?
A: 2000K, 2500K, 2700K, 2900K, 3100K, 3500K, 4000K, 5500K, 6500K, RGB, RGBW, RGBA, R, G, B,Y

Q3: Which type led strip does LA Lighting has?
A: SMD2835, SMD3528, SMD5050, SMD5630, SMD020, SMD315, etc.

Q4: Which led strip power does LA Lighitng has?
A: From 2.4w/m to 43w/m

Q5: Which waterproof versions does LA Lighitng make?
A: IP20, IP65, IP67, IP68

Q6: What is the PCB width WITOP Lighting led strip?

A: 5mm-20mm all available

Q7: What is the input of WITOP Lighitng led strip?

A: DC5V, DC12V, DC24V

Q8: What’s the led strip lead time?
A: Sample :1-5days. Mass production: 7-10days.

Q9: How do you ship the led strip and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.

Q10: What is the Warranty for the LED strip?
A: we offer 2 years guarantee for led strip
