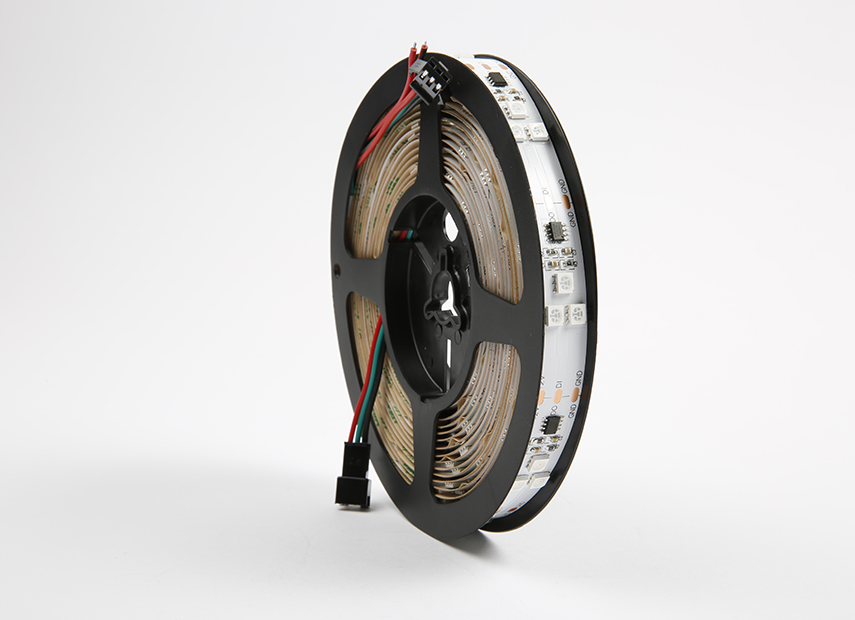

WS2811 triangle digital led strip

Ws2811 triangle Digital Led Strip

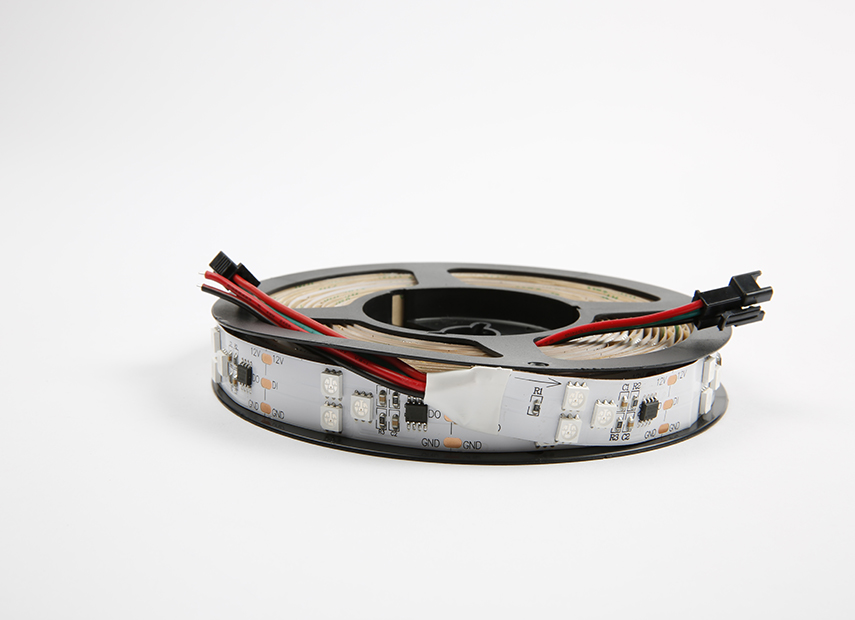

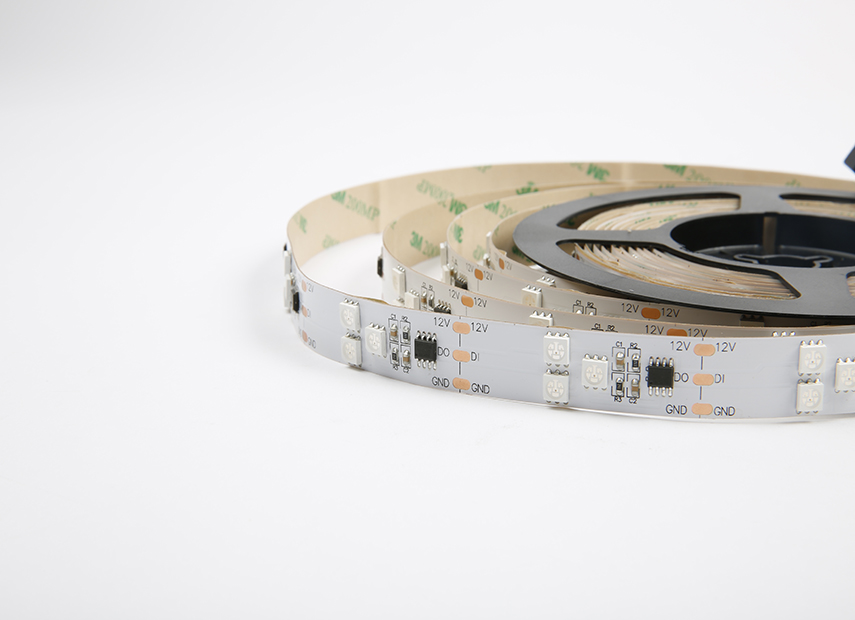

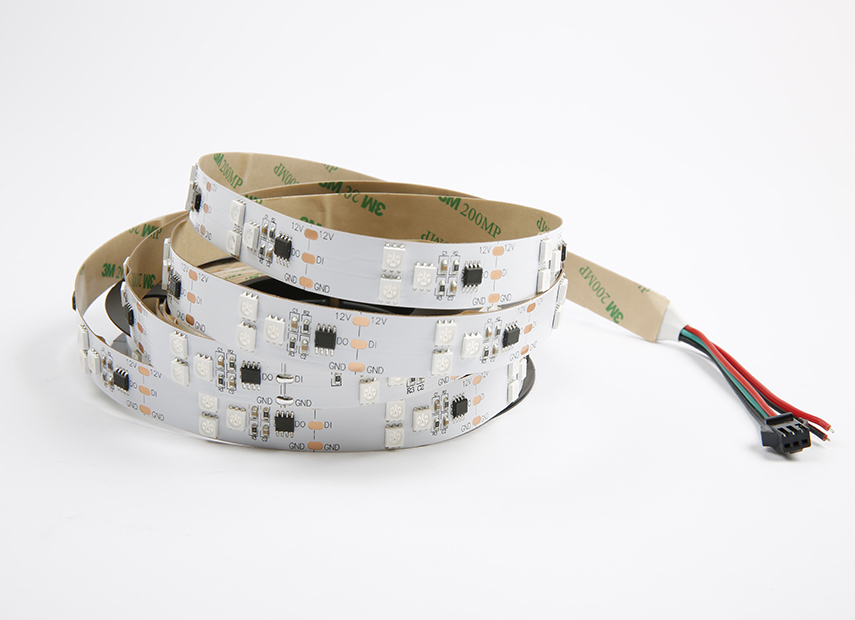

WS2811 12v 90led/m Led Strip

  • WS2811 LED Strip use the FPCB flexible printed circuit board to be assembly ( ) circuit boards,
    use SMD LED lights and components to be assembled,so that the thickness of the product only
    just like,Occupy a small space,and can be arbitrarily cut,FPC is soft material,can random winding,
    and wound freely movable in three-dimensional space without breaking,suitable for irregular place
    and narrow space of places to install,but also as any possible bending,suitable for advertising,
    decorative lighting,any combination of the kinds of patterns.
  • WS2811 is single signal IC:one data cable(DAT),two power lines,256 gray scale,high brightness,
    fast data transfer,fast screen refresh,etc.,with the controller,you can achieve monochrome,
    gradient,water,horse racing,text,numbers,chase,English,pictures,animations,video,any effects,
    and so on.
  • Products is using 12V low voltage to power supply,high safety factor,using the import big
    brand led chip to be the lighting source,high brightness,light fade is small,maintenance-free,long
    lifespan,energy-saving and environmental protection,based on the above characteristics,More and
    more people choose digital led strip as lighting,decoration product
Share This Product

Product Details

Features

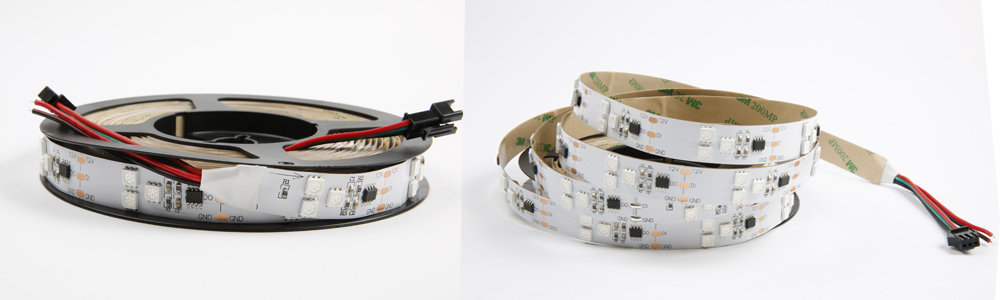

ws2811 triangle rgb led strip

  • Adopt international leading manufacturer ’s chips high brightness width angle  , color consistency, and stable performance.
  • Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
  • Use DC12V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.
Dimension

Specifications

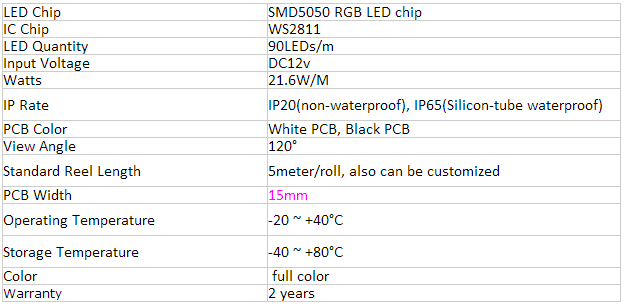

1 meter led strip Specifications

ws2811 triangle rgb 12v led strip

Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time light fades rate
500H 0%
1000H 0%
2000H 0.5%
4000H 1.2%
6000H 2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Diagram

Strip cut schematic

diagram_02

LED strip wiring diagram

diagram_04
diagram_05
diagram_06
diagram_07

LED strip wiring diagram

diagram_09
diagram_10
diagram_11
diagram_12

Installation wiring diagram

diagram_14
diagram_15
diagram_16

IP62,IP65 the installation diagram

diagram_18
diagram_19
diagram_20

IP67,IP68 the installation diagram

diagram_23 diagram_24

Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
