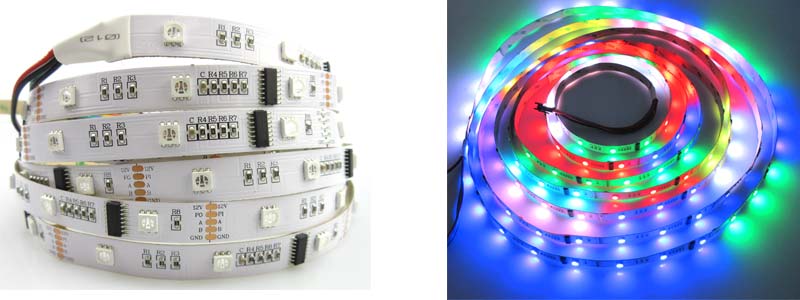

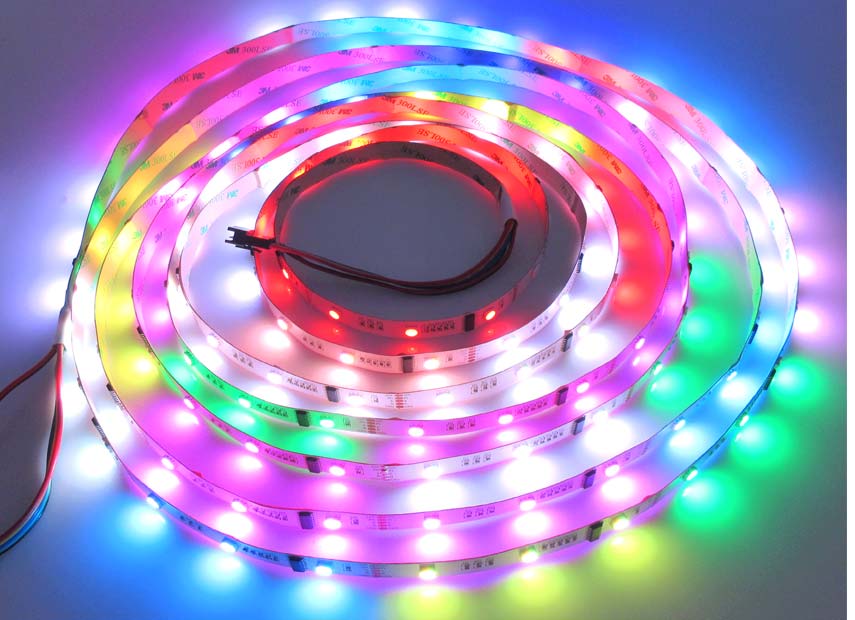

Dmx512 Rgb LED Strip Light
Dmx512 Programmable 12v 30Led Strip

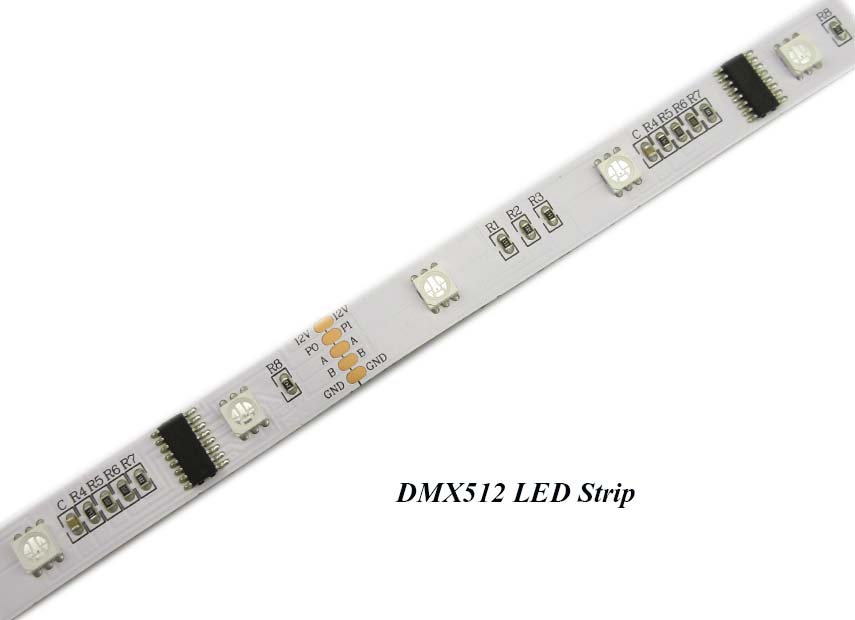

DMX512 led strip
1,No matter what or how many ic broken,the led strip will work normally.
2,Support standard dmx512 control system

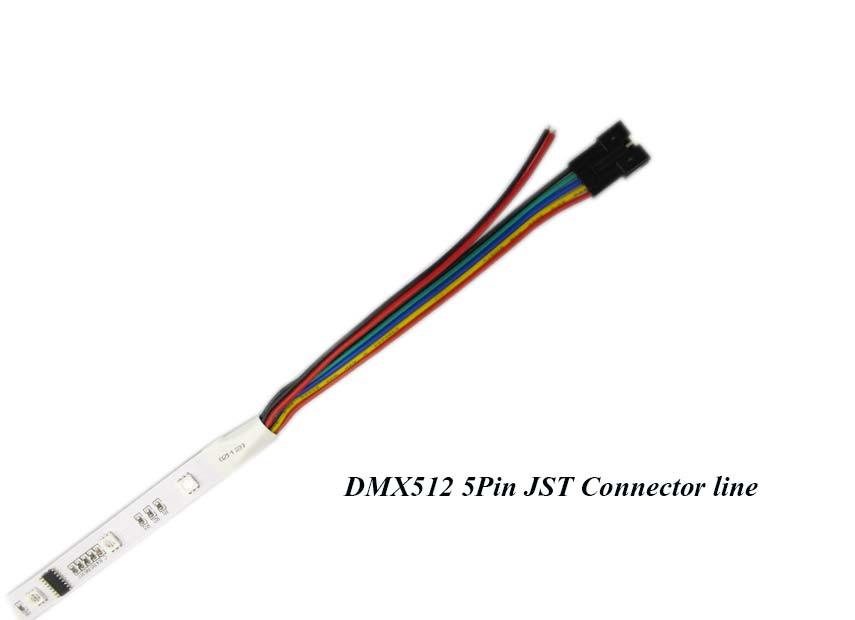

3,Addressable 24V RGBW DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
GND: connect to power supply GND & controller GND
Share This Product
Product Details
Features
- Product features
1. Led quantity: 30pcs Epistar RGB 5050 SMD per meter
2. single led current: 60mA
3. Lifespan: 50,000 hours
4. CRI: 80Ra
5. Luminious (mcd): R:25600 G:54400 B:22400
6. Board material: FPC
7. View angle: 120 degree
8. Standard length: 5m/Reel
9. Input votage: DC12V - Use DC12V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.
Dimension
Specifications
12V RGB DMX512 LED strip
| Product Name | Addressable 12V RGB DMX512 LED strip |
| Item No. | WST-FPCB-DMX512RGBW-30-12V |
| Power Consumption | 7.2W/Meter |
| Work Voltage | DC12V |
| IC Type | DMX512 |
| LED Qty per meter | 30pcs SMD5050, 10pixels/m |
| PCB Color | Black/white |
| Dimension | L 5000*W12*H3mm |
| Waterproof Grade | IP40/IP65/IP67/IP68 |
| Work Temperature | -30-+60°C |
| Life-span | 50,000H |
| Certificate | CE&RoHS |
| Warranty | 2 years |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
