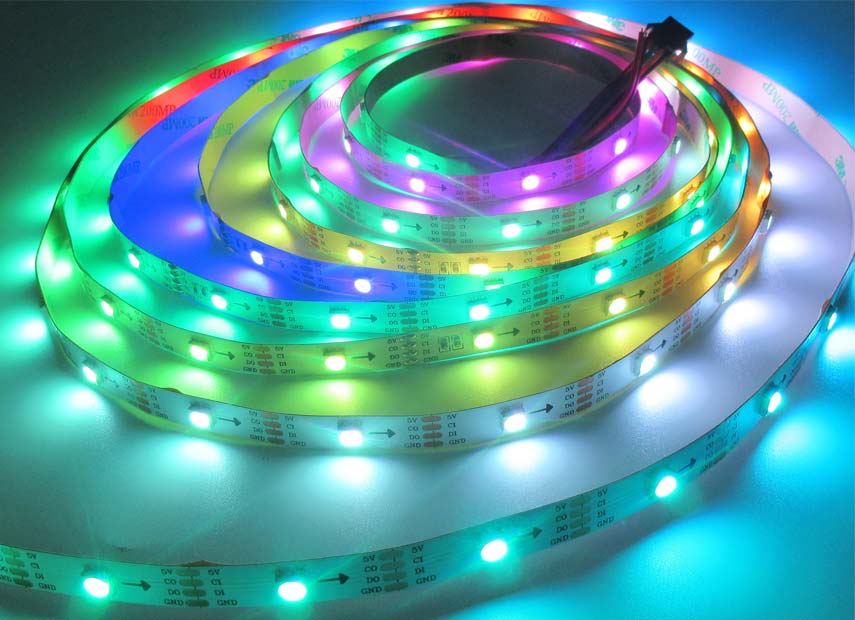

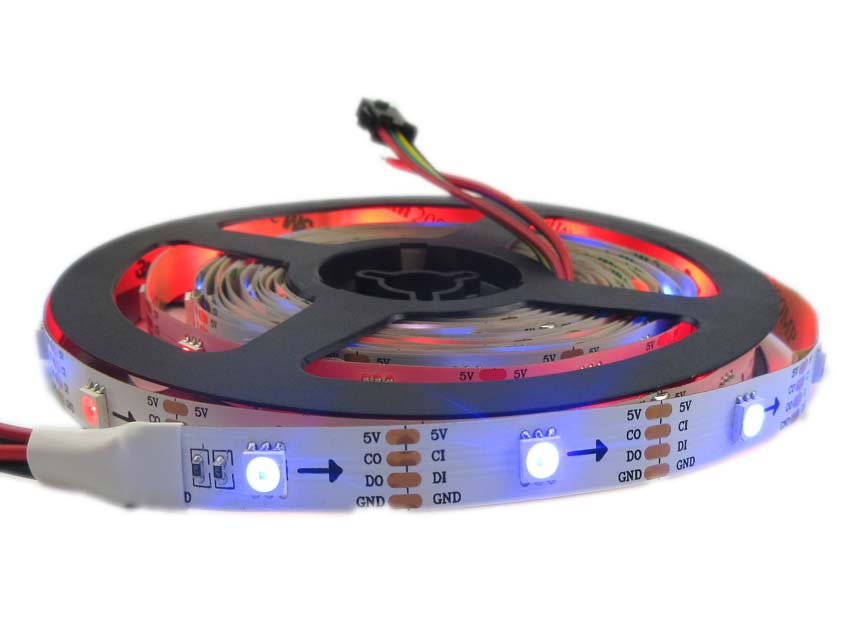

APA102 Addressable Rgb LED Strip
APA102C 5V 30LED LED Strip
1. Addressable full color led strips ——APA102C IC built-in.
2. Individually control —— 1 IC & I LED chip.
3. Standard Reel Length: 5meter/roll, also can be customized.
4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65”/3.33cm(1 LED each), Solder to the 0.1” copper pads and you’re good to go.
5. Power supply: You must use a 5V DC power supply to power this strip, do not use higher than 6V
or you can destroy the entire strip.
Share This Product
Product Details
Features
1.Internal IC APA102 double singals better then ws2812B .
2.Wide applicability, easy to install and maintain.
3.Extremely luminous, with wide viewing angle .
4. Energy saving and environmental conservation, long lifespan and warranty 2years .
5. Operation low voltage (5V) for human safety, various colors available .
6.Flexible strip for curving around bends & durable quality.
7.Sticky: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.

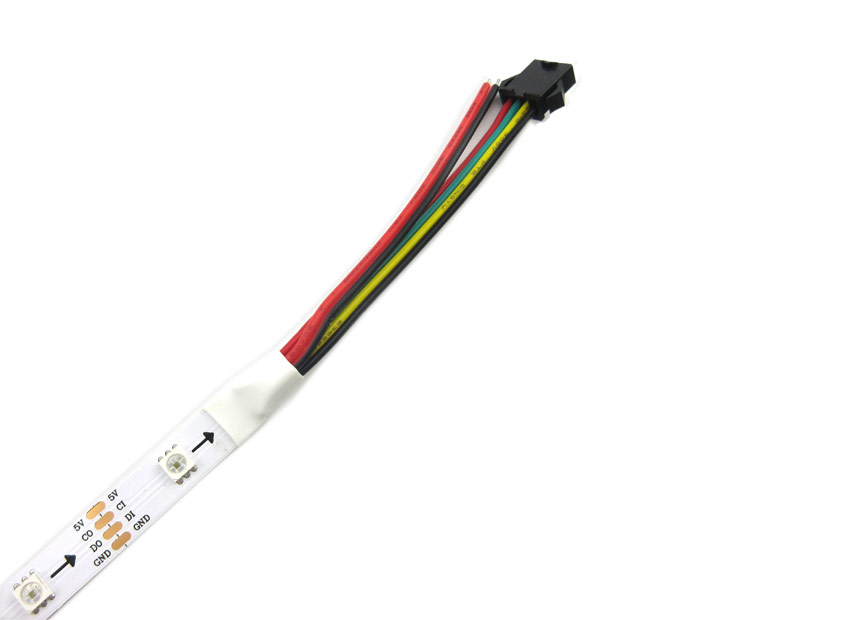

8. Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.
these LEDs have 2 wires (input and output) for sending data – one clock pin and one data pin.That means you
need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor
speed or type to control these strips, and you don’t have to worry about being careful with the timing.
9. Type: This is the 60 LED-per-meter version, We have 30 LED/m, 60 LED/m and 144 LED/m.
3.Extremely luminous, with wide viewing angle .
4. Energy saving and environmental conservation, long lifespan and warranty 2years .
5. Operation low voltage (5V) for human safety, various colors available .
6.Flexible strip for curving around bends & durable quality.
7.Sticky: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
8. Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.
these LEDs have 2 wires (input and output) for sending data – one clock pin and one data pin.That means you
need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor
speed or type to control these strips, and you don’t have to worry about being careful with the timing.
9. Type: This is the 60 LED-per-meter version, We have 30 LED/m, 60 LED/m and 144 LED/m.

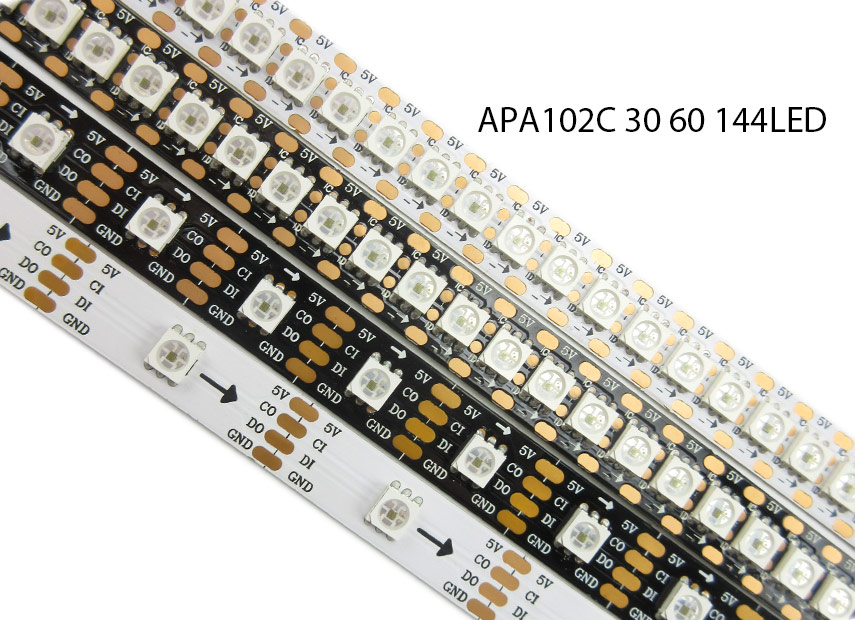

Waterproof——white PCB; Waterproof——black PCB
Non-waterproof ——white PCB; Non-waterproof——black PCB
10. LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

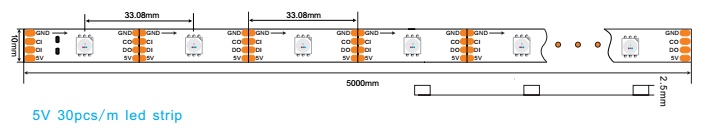

Dimension
Specifications
Product parameter
| LED Chip | SMD5050 RGB LED chip |
| IC Chip | APA102C IC built-in |
| LED Quantity | 30LEDs/m |
| Input Voltage | DC5V |
| Watts | 9W/M |
| IP Rate | IP20(non-waterproof), IP65(Silicon-tube waterproof) |
| PCB Color | White PCB, Black PCB |
| View Angle | 120° |
| Standard Reel Length | 1meter/roll, also can be customized |
| PCB Width | 10mm |
| Operating Temperature | -20 ~ +40°C |
| Storage Temperature | -40 ~ +80°C |
| Color | Addressable full color |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
