Sd Card WS2812B WS2811 led Pixel Controller – k1000c Controller

5-24v Sd card controller

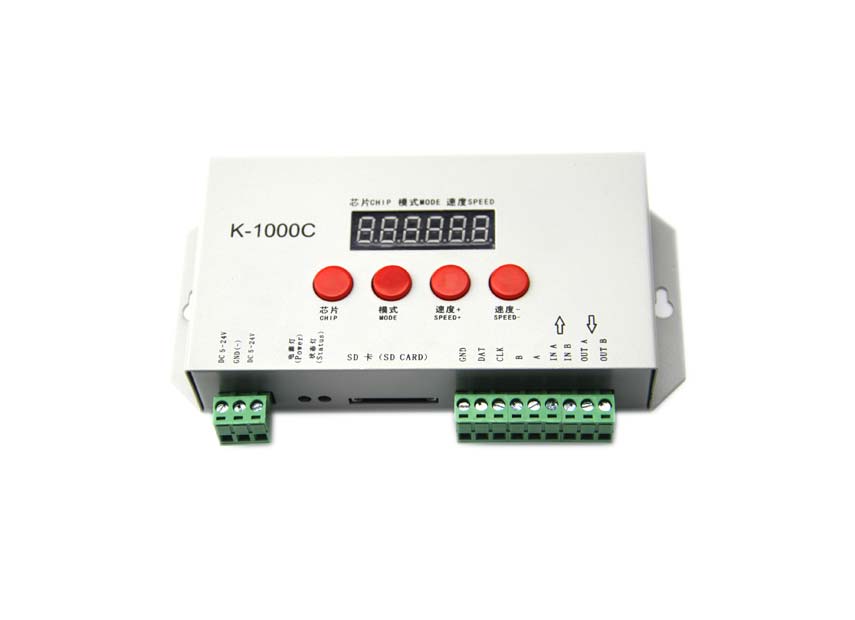

Programmable k1000c Controller

K1000c controller:

1) 32—256 Gray level,Support software Gamma correction.

2) Support the rules and special-shaped handle.

3) Single-port output,can support 2048 pixels.

4) Off-line(SD Card) control, play back content stored in the SD card.

5) K-1000C store a maximum of 32 programs,copy multiple files to the SD card in order,

after formatting the SD card as “FAT” format.

6) The program must be named in orders . just as :00_1.led, 01_1.led, 02_1.led.

7) Compatible with single line or double line chips.

8) SD card: 128MB-32GB

Share This Product

Product Details

Features

Features:

1. This k1000c sd card sk6812 rgbw led pixel controller is evolution of our classic T-1000s sd card controller.

2. Add a display that customers more prefer.

3. Improve functions that support load lamp is 4 channels (RGBW) pixels, enhanced 485 TTL and 485 differential (DMX) signal output.

4. Controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, more flexible and convenient.
5. Comes with a 256MB SD card included. This version support 2GB sd card that old ones couldn’t.

6. For the DMX lighting IC, the controller comes with write address function; In addition, with use of 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

7. Controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Note: To copy files to SD card, you must first format to the SD card. SD card must be formatted as “FAT” format

Specifications

Product features

Product	k1000c sd card sk6812 rgbw led pixel controller
Working voltage	Runs at DC 7.5-24V using an on board voltage regulator; Or can be run off a single DC 5V source if you’re running DC 5V led pixel digital srings/ strips
Control led pixels quantity	Drive up to 2048 pixels maximum using 256 brightness levels per color (24 bit color)
Support led pixel effects	Supports all the various rules-shape, special shape processing
Programs quantity	Off-line use can support 16 programmes stored in the SD card
Led pixel Controller software	LedEdit2014 / Glediator
Multiple programs name form	00_1.led, 01_1.led, 02_1.led, 03_1.led, etc
Choose programs speed / model	Using buttons on the controller, you can adjust the playback speed and choose the display program. Achieve to save the play list functions
Support our led products	LED pixle lights like amusement led pixel lights,camaleon led pixel lights, etc; LED digital strips like ws2801, ws2812b, ws2811, apa102 rgb pixel digital strips, etc; LED digital modules like ws2801 ,lpd6803 ,ws2811 rgb digital modules, etc;

Applications

application

City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

Notes

Note:

1. SD card led pixel digital controller K-1000c port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

2.Strong recommend you to connect the led pixel lights quantity no more than 1024 pixels per T1000s pixel controller.

3. Special issue,when you make LED video display, recommend the led pixels quantity no more than 512 pixels.

Compatible with wide range of addressable LED chipsets:
