5-24v SD Card controller

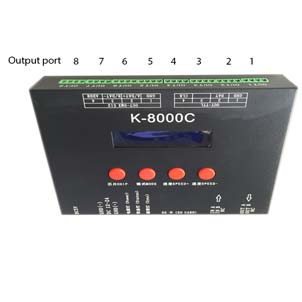

K8000c controller-8 output port
K8000c function support rgb dmx pixel controller:
1. 32 to 65536 degree Gray control, Gamma correction procession handle.
2. Support various point, line light source, and all kinds of rules and specific shaped handle.
3. The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4. The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5. The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord
Share This Product
Product Details
Features
ws2811 ws2812b ws2813 sk6812 dmx512 controller–k8000c controlelr
1. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
2. For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
3. Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
4. Enhanced 485 TTL and 485 differential (DMX) signal output.
5. The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
Specifications
Data for K-8000C sd card controller
| Support IC Type | Support pixel number |
| SK6812 | Support up to 1024*8=8192 pixels |
| WS2801 | Support up to 1024*8=8192 pixels |
| SM16716,16726 | Support up to 1024*8=8192 pixels |
| GS8205,8206 | Support up to 1024*8=8192 pixels |
| LX3203,1603,1103 | Support up to 1024*8=8192 pixels |
| SM16703,16709,16712 | Support up to 1024*8=8192 pixels |
| TM1803,1804,1809,1812 | Support up to 1024*8=8192 pixels |
| WS2811,WS2812,WS2813,WS2815,WS2818 | Support up to 1024*8=8192 pixels |
| UCS1903,1909,1912,2903,2904,2909,2912 | Support up to 1024*8=8192 pixels |
| DMX 512 | Support up to 512*8=4096 pixels,
suggest to support ≤320*8=2560 pixels |
| DMX 500K | Support up to 512*8=4096 pixels,
suggest to support ≤320*8=2560 pixels |
| DMX 250K-CZF | Support up to 512*8=4096 pixels,
suggest to support ≤320*8=2560 pixels |
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
NOTES
1. If support RGBW four channels’ lights should select K-8000-RGBW.
2. If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.
