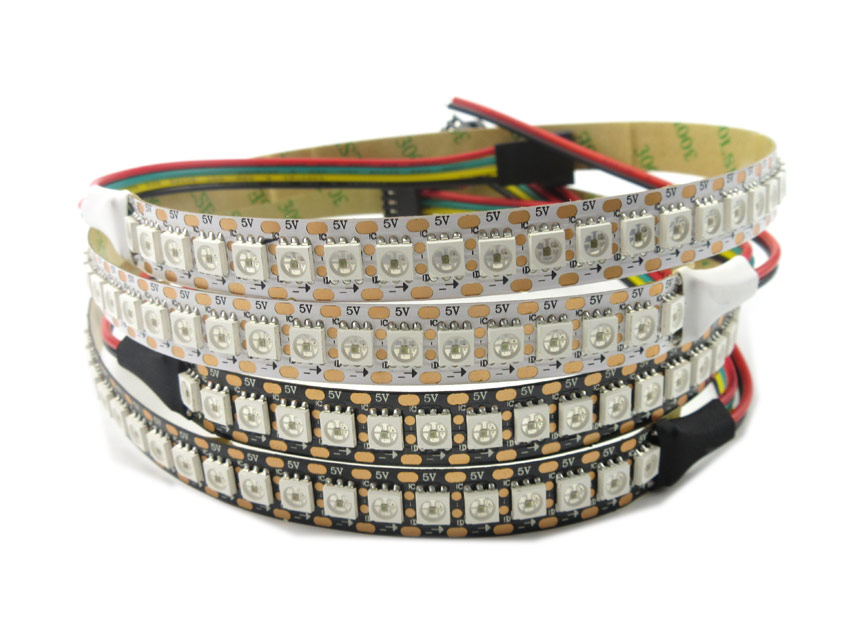

APA102/APA102C Addressable LED Strip Light
APA102/APA102C Digital LED Strip
- The features of Addressable DC5V APA102 LED Strip APA102 144LED/m1, Control IC included,supporting numerous color-change effects
2, Absolutely addressable,each IC built inside RGB LED
3, Each IC control one leds
4, APA102 have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5, Grey scale 256, 256(Red)*256(Green)*256(Blue)=16777216 colors that APA102 LED can change. Keep LED show smooth color effect when changing color.
Share This Product
Product Details
Features
-
Features:
1.Double line signal transfer Addressable Pixel LED Strip, APA102C IC inserted in 5050RGB diode.
2.144LEDs 144ICs per meter, each led can be cut, there is cut lines every 6.9mm;

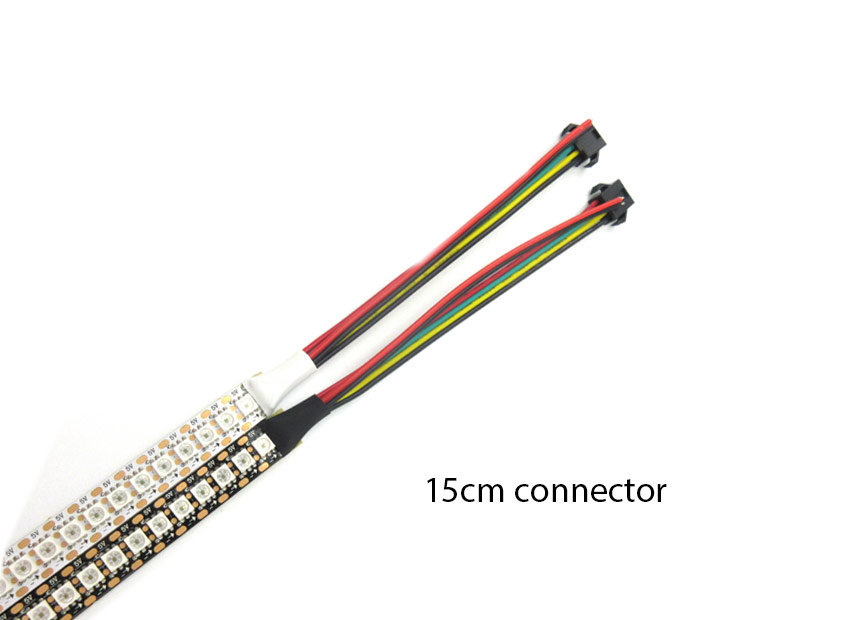

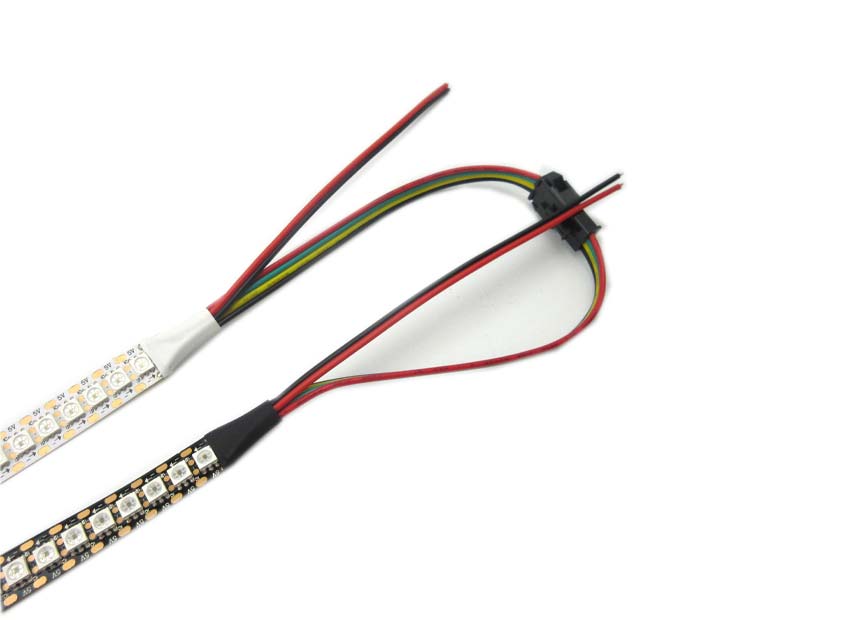

3. 4PIN JST SM connector on both end for signal transfer and extra two wires for power feeding;
4.Black/White PCB, non-waterproof IP20, waterproof with silicon tube casing IP65;
5.Controller: SD card controller, Artnet, Ardunio and so on.
Benefits:
1, Control IC included,supporting numerous color-changing effects;
2, Control by SD controller,Arduino,DMX512,Artnet
3,Flexible PCB 5V low voltage input;

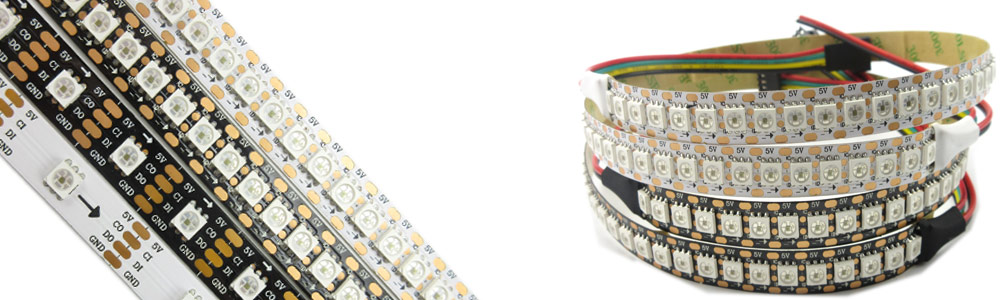

4,PCB Color: White&Black available for choose
Absolutely addressable,each IC built inside RGB LED
5,5M per roll,Customer’s size available also
6,The non-waterproof version strip attached white color
7,3M tape on back side of PCB but the waterproof version only included 10pcs silicon clips and screw forinstallation use(without 3M tape)
8, Each led cut-able.
Specifications
1 meter led strip Specifications
| Input Voltage: | 5VDC |
| Max Power Consumption: | 43.2W per mtr |
| LED Quantity: | 144 per mtr |
| LED Classification: | Pixel RGB SMD |
| IC Type | apa102 |
| Viewing Angle: | 140° |
| Standard Reel Length: | 1mtr |
| Custom Lengths Available: | Yes |
| Dimensions: | 1000mm(L) x 12mm(W) x 7mm(H) |
| Operating Temperature: | -20 ~ +60°C |
| Storage Temperature: | -40~+80 °C |
| IP Rate: | non-waterproof,IP65,IP67,IP68 |
| Material: | Super slim flexible PCB |
| PCB Color: | Black and White both avaliable |
| Flexibility: | 360° |
| Brand: | SJ or OEM |
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

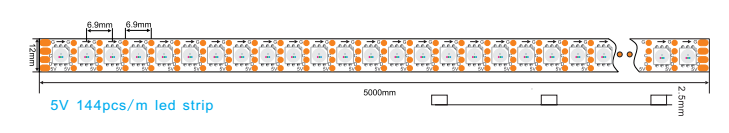

Diamension
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
More details
- The control principle: an IC control an LED form a loop (a), the controller IC on the FPCB through the control circuit inside the control to control the LED lights change different effects; such as flashing, chasing, jumping, Happy clockwise, counterclockwise Happy, Happy monochrome, color Happy, single chase from start to finish, running water, simulated lightning; changing effect this section is not limited to the current light bar controller built-in 94 kinds of effects can be based on customer needs , write your own; arranged in the form of screen can display, text, letters, pictures, animations, and so on.
- Environmental safety: high quality highlight SMD 5050 LED. With small power consumption, resulting in less heat, no glare, impact resistance and other characteristics. Low voltage DC 5V power supply, high security and reliability.
- Color can be varied by the controller needs to be adjusted according to the customer.
- Long life: average life expectancy of 50,000 hours.
- Cutting, welding facilitate freedom: each group of LED to form a loop, you can cut off any tangent meet customer requirements and demand for welding various lengths of light bar along the top.
- Soft: A soft FPCB board as a substrate, can butt, bending, cutting, and easily fixed to unsmooth surface.
- Light, thin: suitable for installation in narrow space inside
