SK6812 Addressable LED Strip

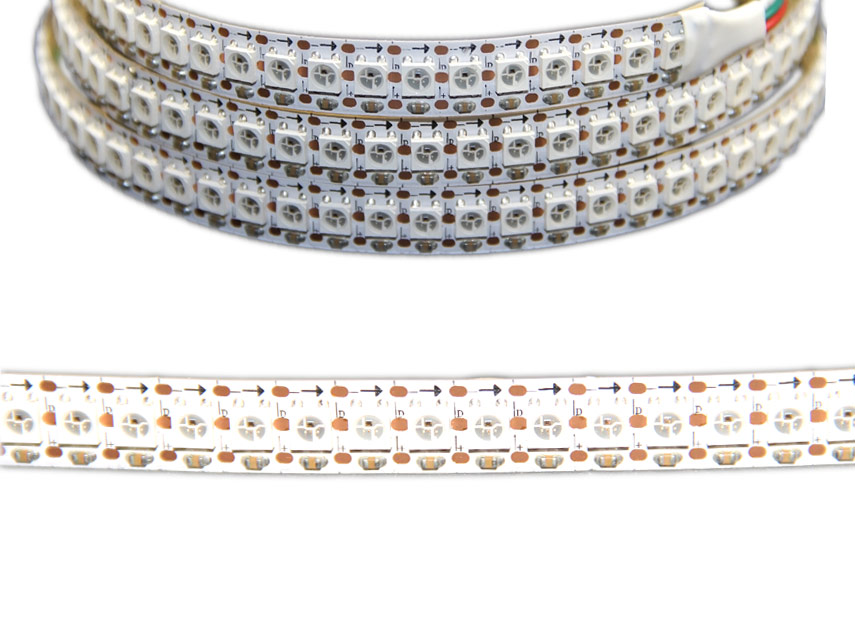

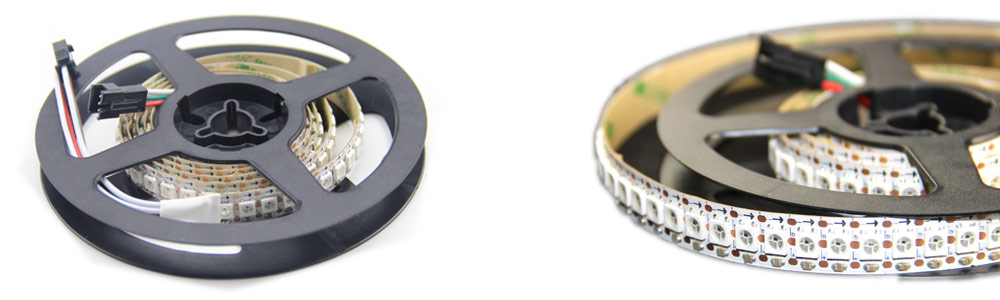

SK6812 144led Digital LED Strip
- SK6812 LED strip, Tube waterproof IP67, white PCB, R/G/B/ 3 color in 1LED. It is the upgraded version of WS2812B LED.
- 256 brightness display and 32-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.
- Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi.

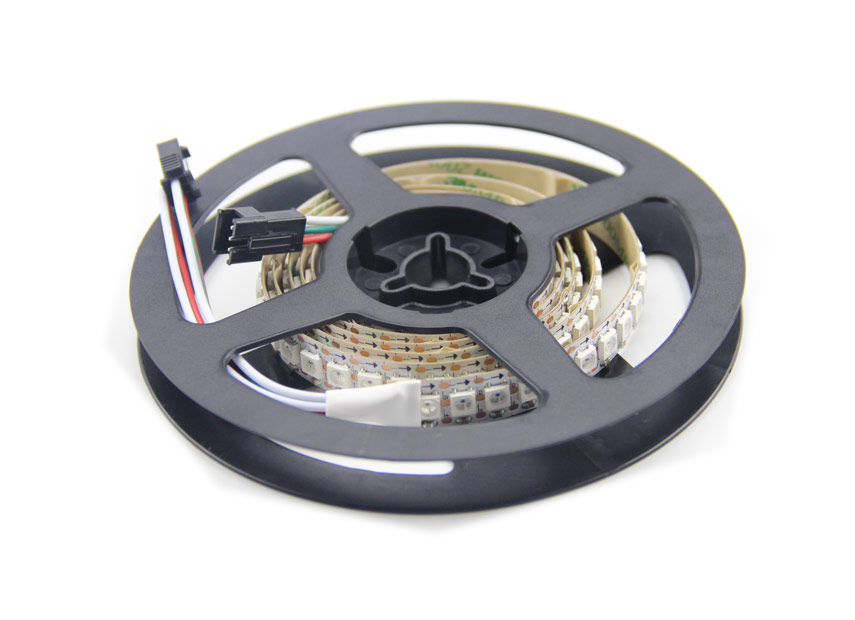

- Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
- Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It also comes with some silicone clips and screws for easy installation.
Share This Product
Product Details
Features

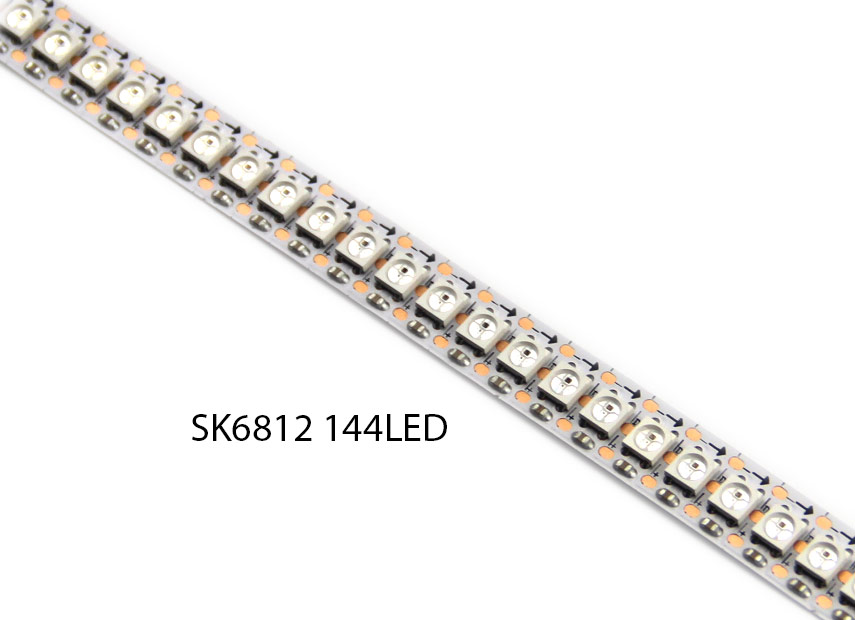

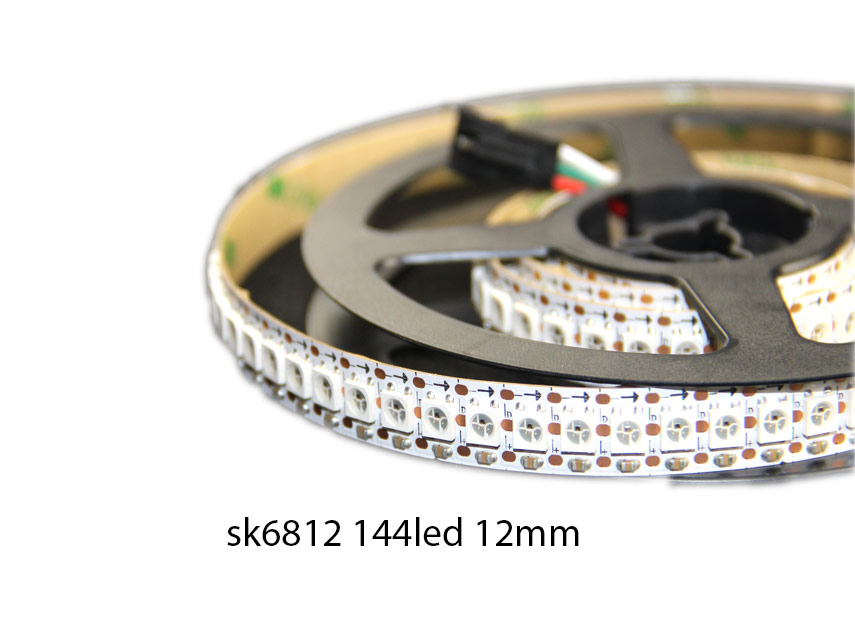

- There is one more member coming to SK6812 strip family,It’s 144leds LED strip.-We developed 10Pixel,20 Pixel,30 Pixel,60 Pixel 144Pixel per meter!-PCB width 12mm due to request reduce heat.
-Each LED per unit can be cut down.
-Requested to power from start and end of roll by DC5V as the Voltage drop.
-Brown 3M adhesive tape stick on back side.
-Both white & warm white color PCB board available.
Dimension
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
Specification
HIGH lumen RGB brightness SK6812 LED Lighting Strips Flexible DC 5V 5050
|
Model number
|
WTP-RGB-144led
|
||
|
LED TYPEE
|
SMD5050 RGB LED chip
|
||
|
PCB color
|
white /black PCB
|
||
|
PCB Width
|
12mm
|
||
|
Pcb Length
|
1meter/roll, also can be customized
|
||
|
View angle
|
120 degree
|
||
|
LED QTY
|
144LEDS/M
|
||
|
POWER
|
43.2W/M
|
||
|
Voltage
|
DC5V
|
||
|
Installation
|
wiht 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20(non-waterproof), IP65(Silicon-tube waterproof), IP66:Soft tube waterproof, IP68:Soft tube+Glue filled waterproof | ||
|
Operate temperature
|
-20 ~ +40°C
|
||
|
IP rate
|
IP20(non -waterproof /IP65(Silicon tube waterproof )
|
||
|
Package
|
5M/reel .with anti-static bag ,or customized
|
||
|
Application
|
indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc.
|
||
