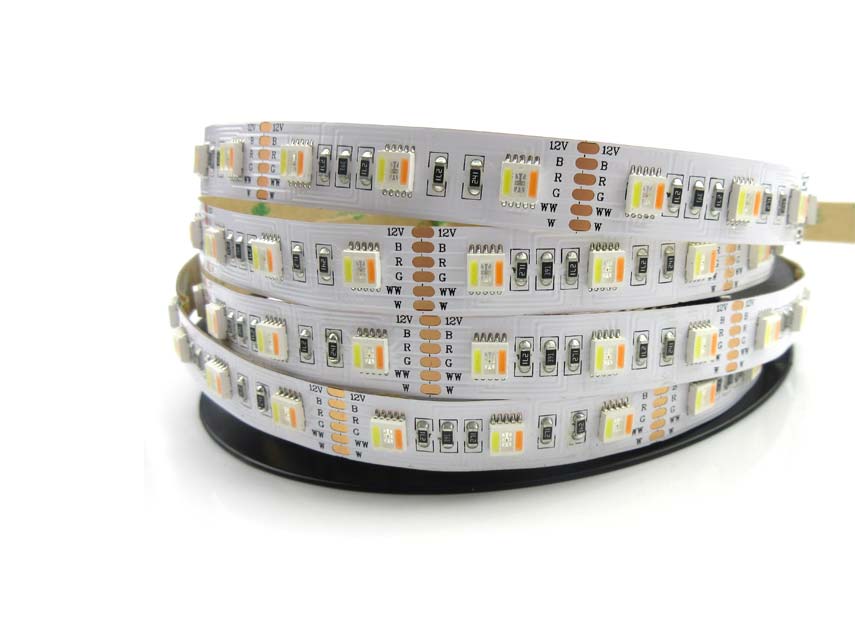

5050 RGB+CCT LED Strip
5050 rgbww LED Strip

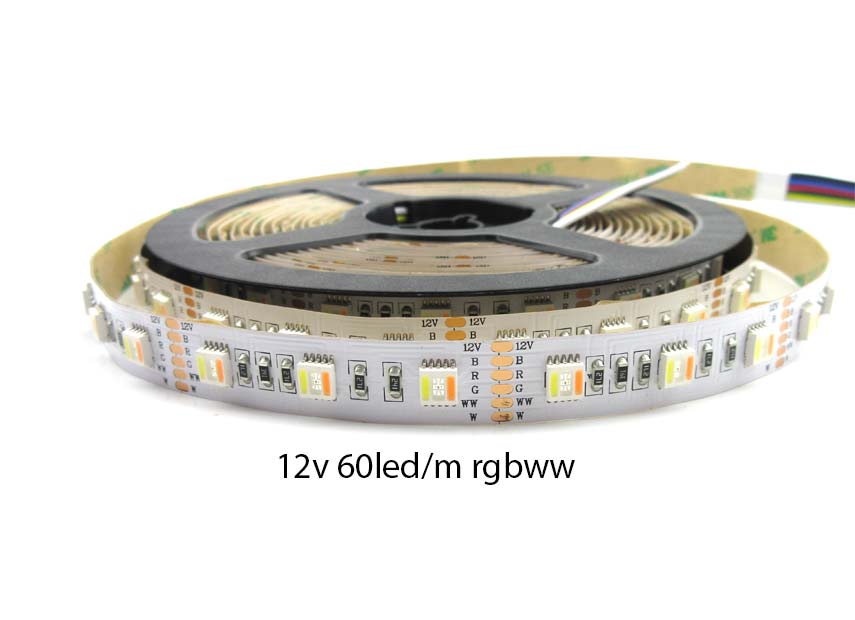

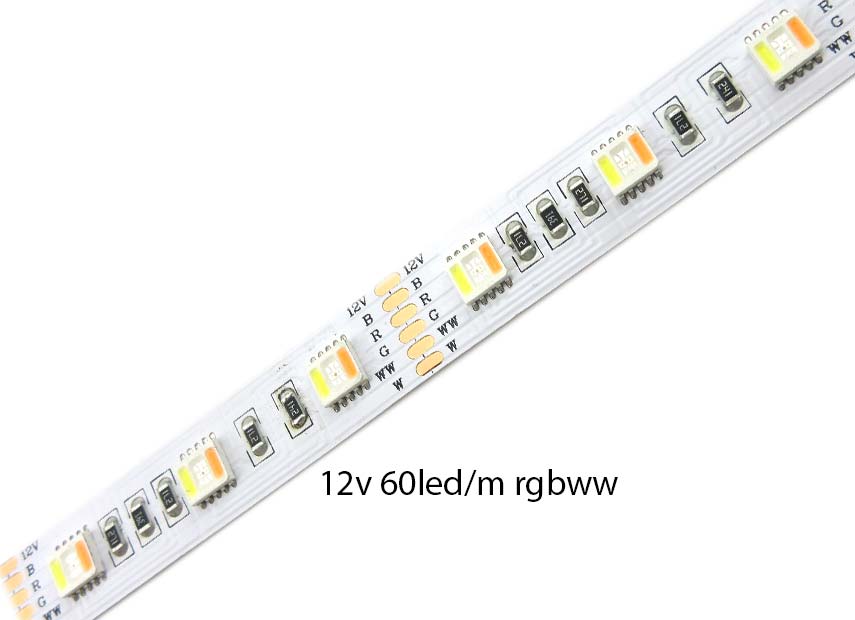

DC12V 60LED 5050 SMD RGBWW can replace 5050 RGB Rgbw Cct led strip light
1,RGBWW = RGB + Cold White (6000-6500k)+Warm white(2800-3200k)
2, Superbright 5050 RGBWW LED Strip Light, high intensity and reliability,one 5050 led have 5 color,
rgb and white and wram white!
3, Continuous length, packed with 5 meter normally!
4, Back with a self-adhesive.
5,Cuttable every 3 LEDs along the cutting marks for 12v , according to your requirement.
Share This Product
Product Details
Specifications
2017 Best selling products 5050smd 5 color in 1 rgbww led light strip
| 5050 addressable rgb led strip | |
| Type Of LED: | SMD5050 |
| Brand Of Chip: | Epistar/Saman |
| Luminous: | 20-22LM/Chip |
| Color Temperature: | 2600-2800K,2800-3200k,4000-4200K,6000-6500K, Red/Green/Blue/RGB |
| CRI: | Ra>80 |
| Voltage: | DC12V |
| LED quantity: | 60LEDs/Meter |
| FPCB width: | 12mm width PCB 2oz,3oz |
| Power : | 16.8W/Meter |
| Package Size: | 5 Meters per roll . 10 meters per roll |
| Waterproof Grade: | IP20 ,IP65(Silicon glue),IP66( Silicon Tube).IP68( Silicon glue+Tube) |
| Operating Temperature: | -20~ + 60°C |
| Application: | Cove lighting ,Backlight or Edge lighting for signage ,Decorative lights |
| Working Life: | 30,000Hours |
Dimension
Similar rgbw strip

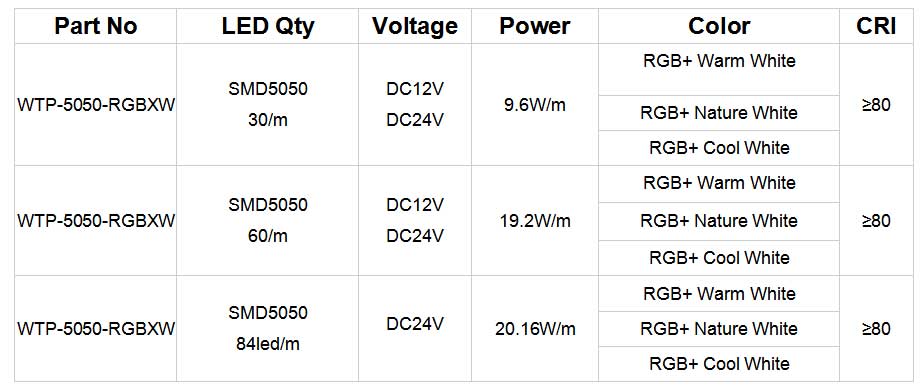

30/60/84/96/pcs/m RGBW led strip 5050 Specifications
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
