CS8208 addressable led strip

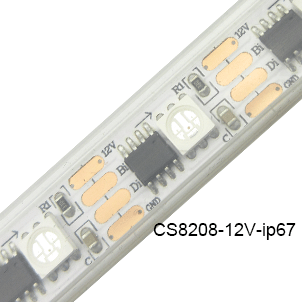

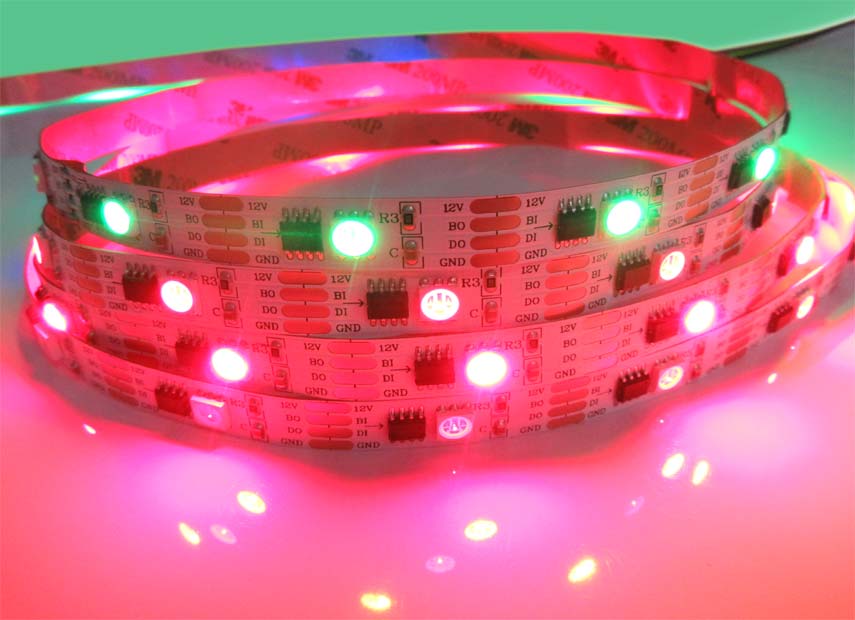

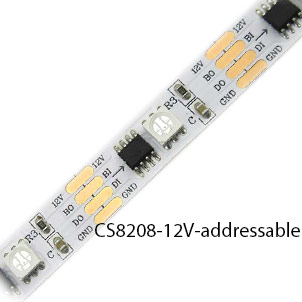

12v 30LED Addressable Rgb LED Strip
The features:
1,CS8208 12v Addressable full color led strips.
2,Individually control —— 1IC & 1LED chip.
3,Standard Reel Lengt: 5meter/roll, also can be customized.
4,No voltage drop within 5 meters
5,Cutted: 1 integrated RGB LEDs per segment.
6,With 33 kinds mode in the IC.
8,break-point continue,same with ws2818/ws2813.
Share This Product
Product Details
Features
1,New product CS2808 led strip which can change any color/pattern no need the controller, and comes with more than 33 kinds of color. if you need more color effects,it also can work with controler,like k1000c,k8000c,t5000k,same programm with ws2811/ws2812b.
2,CS2808 a new version addressable LED based on WS2813B,it is 12v addressable.
3,The advantage is when 1pcs LED burn, the other LED will keep working.
4,It’s 5meters in a reel and 30 Pixel/LED per meter ,cut-able of each unit.
5,White & black both color available on surface of LED chip and PCB.
6,DC12V input, suggest inject Power from start and end of the reel.
7,3M adhesive attached on strip,waterproof version IP65,silicon tube coating.
8,With a pair of JST SM connector (IP20).
Dimension

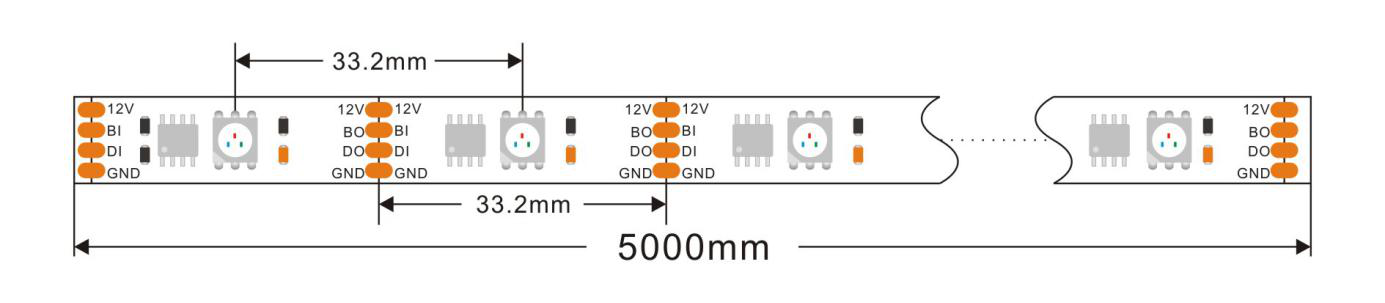

30leds

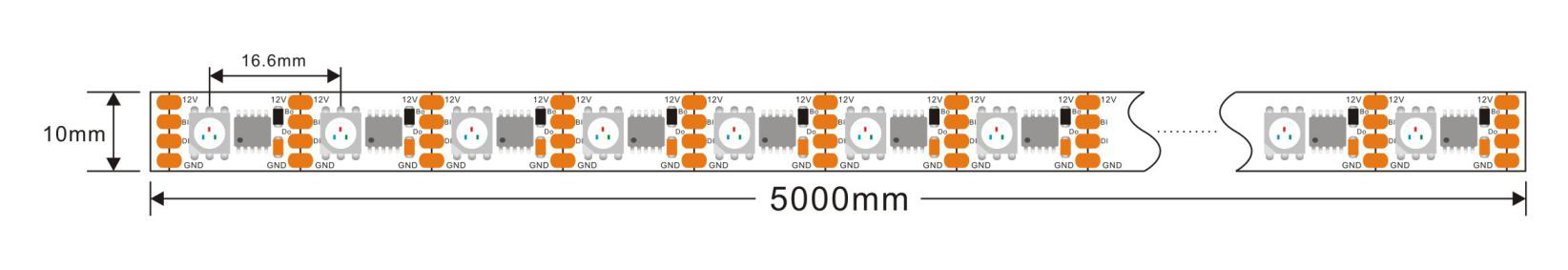

60leds
Specifications
Product Parameters
| CS2808 12V Addressable Rgb LED Strip-30leds | |||
| Product Number | WST-CS8208 | Operating Voltage | DC12V |
| LED Chip | SMD 5050 | Power (w/m) | 7.2W |
| PCB width | 10 mm | PCB Color | White/black |
| Beam Angle | 120 ° | Waterproof Rating | IP 20/IP65 |
| LED Quantity (leds/m) | 30leds/m | Emitting color | Full color |
| Control | cs8208 | ||
| Luminance(MCD) | R:12000mcd G:21000mcd B:5700mcd | ||
| LED Strip Size | L 5000*W 10 mm | ||
| Package | 5m/1 roll (LED anti-static aluminum foil bags) | ||
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
