WS2813 Addressable LED Strip Light

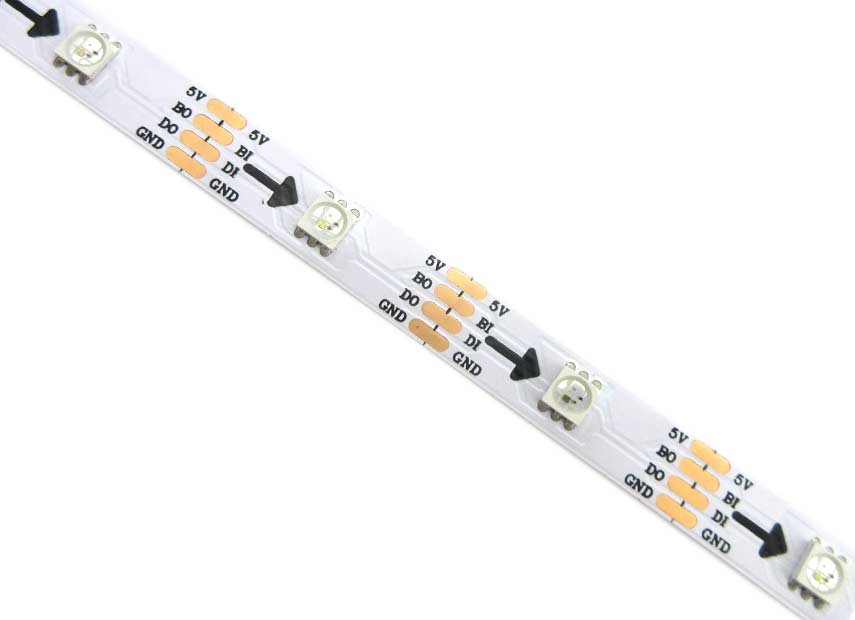

WS2813 30LED Digital Rgb LED Strip
- .WS2813 a new version addressable LED based on WS2812B.
- The advantage is when 1pcs LED burn, the other LED will keep working.
- DC5V input, suggest inject Power from start and end of the reel.
- 3M adhesive attached on strip,waterproof version IP65,silicon tube coating.

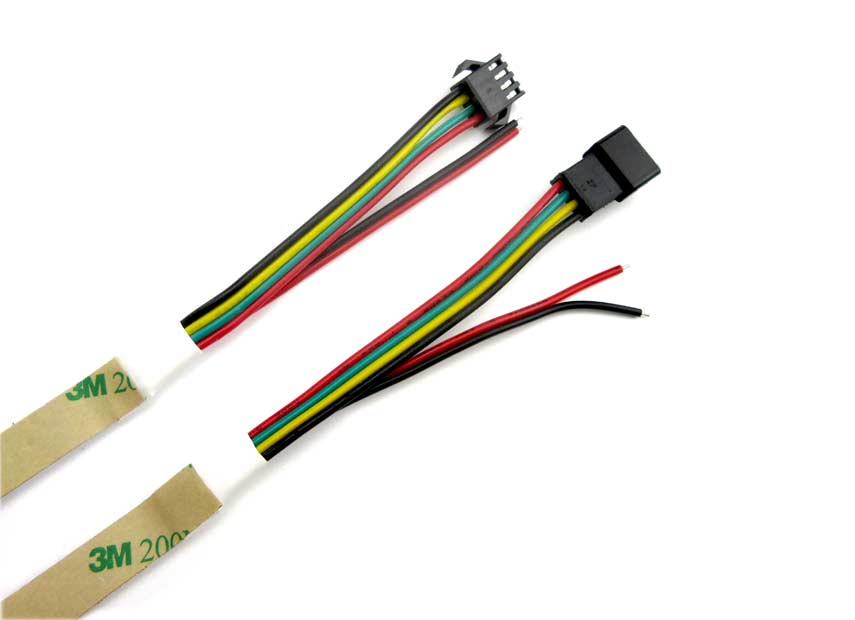

- With a pair of JST SM connector (IP20)
Share This Product
Product Details
Features
Features:
1. ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.
2. One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs
3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
4. With 4pin LED lamps for the digital strip
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.
This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
6. This is the highest resolution for the moment
7. Controller, Power supply are available

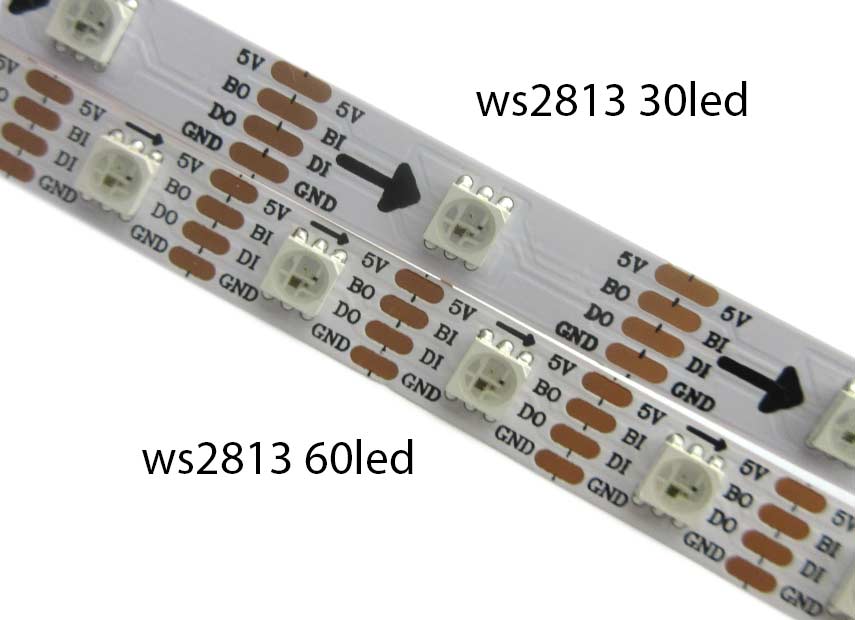

8. For WS2813b IC, we have DC5V; 30/60/96/144 leds per meter. Great choice.
9. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
10. Low voltage DC power supply safety, Convenience.
Dimension
Specifications
DC5V breakpoint resume addressable 30leds 5050 RGB WS2813 LED Strip
| LED Chip | SMD5050 RGB LED chip |
| IC Chip | SMD 5050 RGB |
| LED Quantity | 30LEDs/m |
| Input Voltage | DC5V |
| Watts | 9 W/M |
| IC Chip | WS2813 IC built-in |
| IP Rate | IP20(non-waterproof), IP65(Silicon-tube waterproof) |

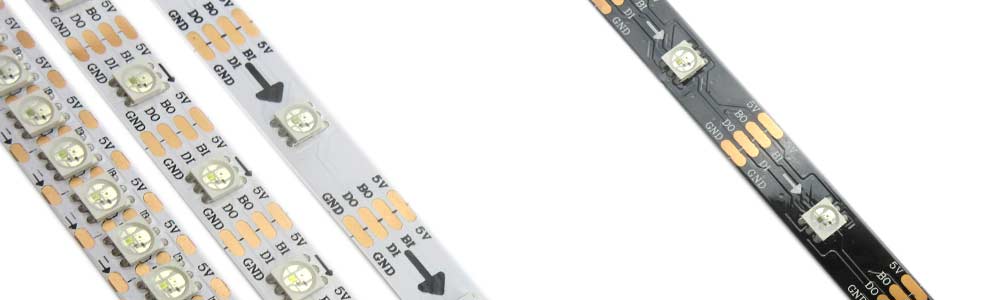

| PCB Color | White PCB, Black PCB |
| View Angle | 120° |
| Standard Reel Length | 5meter/roll, also can be customized |
| PCB Width | 10mm |
| Operating Temperature | -20 ~ +40°C |
| Storage Temperature | -40 ~ +80°C |
| Color | Addressable full color |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
