5-24V T1000S controller
SD Card Controller

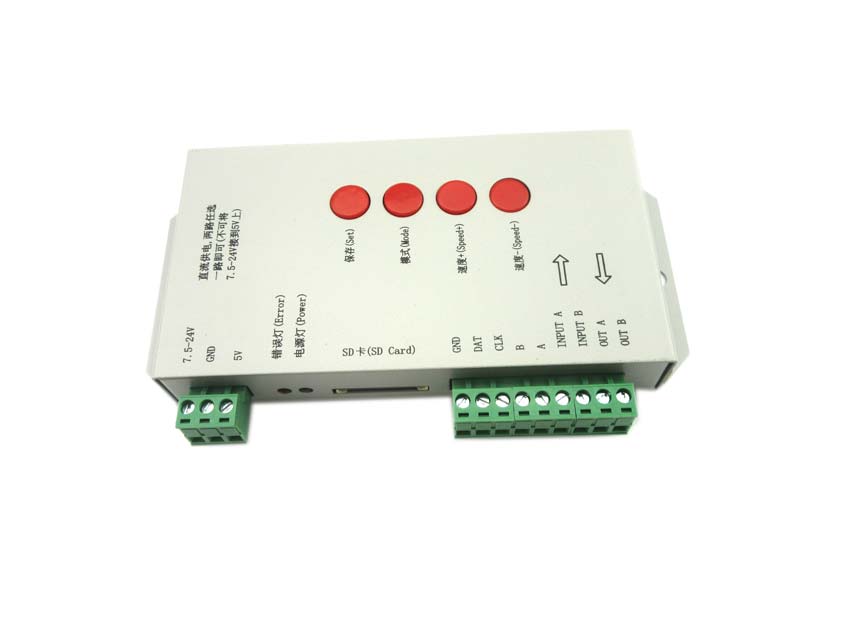

T1000s controller:
T-1000S controller is for IC controlled digital led strip or led pixel products. One port output, 2048 pixels supported. SD card type controller. If need use other type offline or online controller, please contact us for free!
Share This Product
Product Details
Features
1,T-1000S System features
1,32—256 Gray level,Support software Gamma correction.
2,Support the rules and special-shaped handle.
3,Single-port output,can support 2048 pixels.
4,Off-line(SD Card) control, play back content stored in the SD card.
5,T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6,The program must be named in orders . just as :00_1.led, 01_1.led, 02_1.led.
7,Compatible with single line or double line chips.
Specifications
Connect way
T-1000S must use the new software LedEdit 2017.
1. Multiple T-1000S controllers can be cascaded together and work synchronously.
2. T-1000S one TTL(SPI) signal and one RS485 signal port output,can control 2048 pixels/lamps;
3. When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.
4. If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller Binterface with LED lamps B(DMX-),
5. If you need to control a new IC type by the controller, software code mode is:T-1000-IC model.
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
NOTE:1. When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
Drive the IC
If you need to control a new IC type by the controller, software code mode is:T-1000-IC model.
|
Chip type |
Software code&
Controller type |
Lamps/(MAX) |
Note |
| LPD6803,D705,1101,6909, 6912 | T-1000-6803 | 2048 pixels | |
| LPD8806,LPD8809 | T-1000-8806 | 2048 pixels | |
| TM1803,TM1804,TM1809,TM1812 | T-1000-TM | 2048 pixels | TM1804 and TM1809 are divided into high and low |
| TM1903,TM1904,TM1909,TM1912 | T-1000-TM19 | 2048 pixels | |
| UCS6909,UCS6912,UCS7009,UCS5903 | T-1000-UCS-32 | 2048 pixels | |
| UCS1903,UCS1909,UCS1912 | T-1000-UCS-256 | 2048 pixels | 1903 and 1909 are divided into high and low |
| UCS3903 | T-1000-UCS-1024 | 2048 pixels | |
| DMX512 | T-1000-DMX |
170/512 pixels |
Compatible with standard DMX512 |
| WS2801,WS2803 | T-1000-WS | 2048 pixels | |
| WS2811 | T-1000-WS2811 | 2048 pixels | WS2811 be divided into high and low |
| DS189 | T-1000-DS189 | 2048 pixels | |
| TLS3001,TLS3002,TLS3008 | T-1000-TLS | * pixels | |
| P9813 | T-1000-P9813 | 2048 pixels | |
| SM16715 | T-1000-SM16715 | 2048 pixels | SM16715 be divided into high and low |
| SM16716 | T-1000-SM16716 | 2048 pixels | |
| BS0901,BS0902 | T-1000-0901 | 2048 pixels | |
| BS0815 | T-1000-0815 | 2048 pixels |
