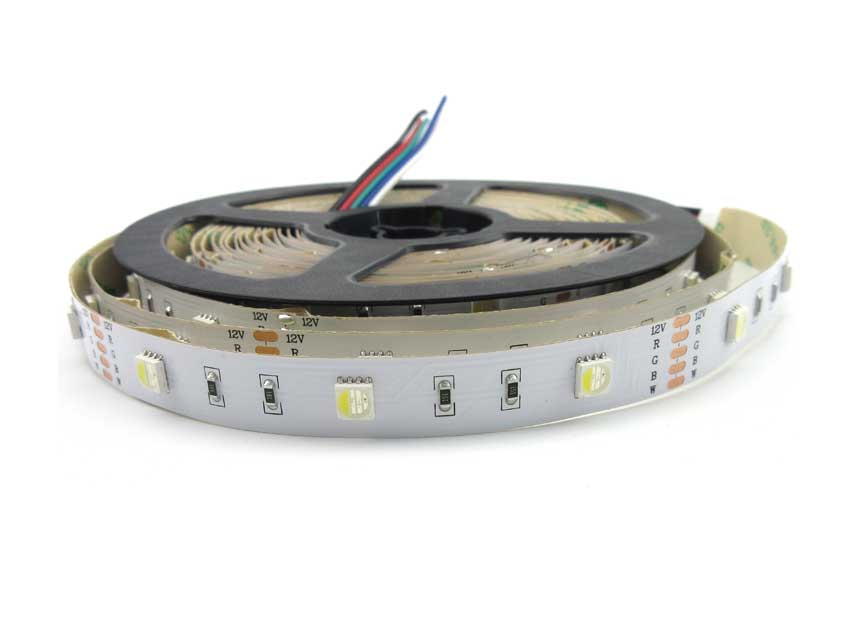

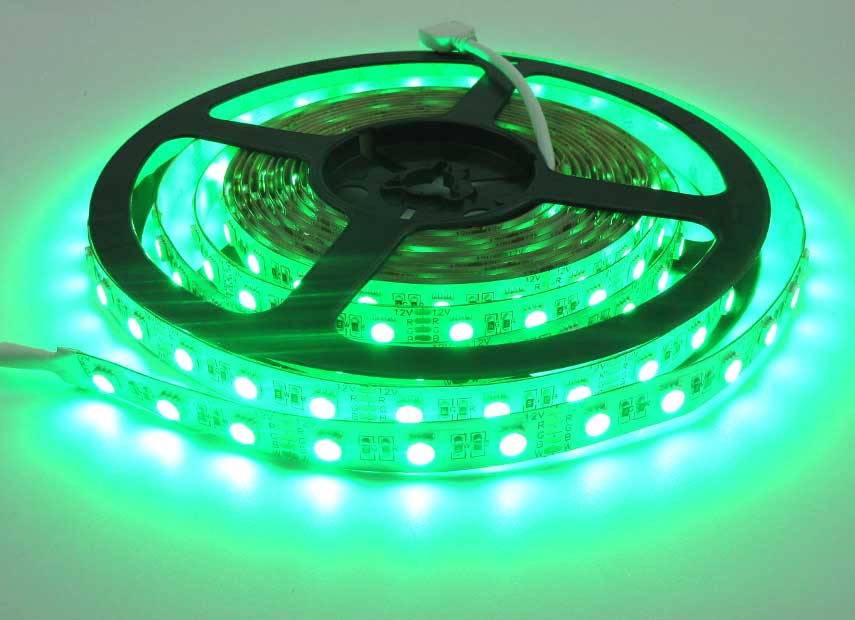

RGBW LED Strip

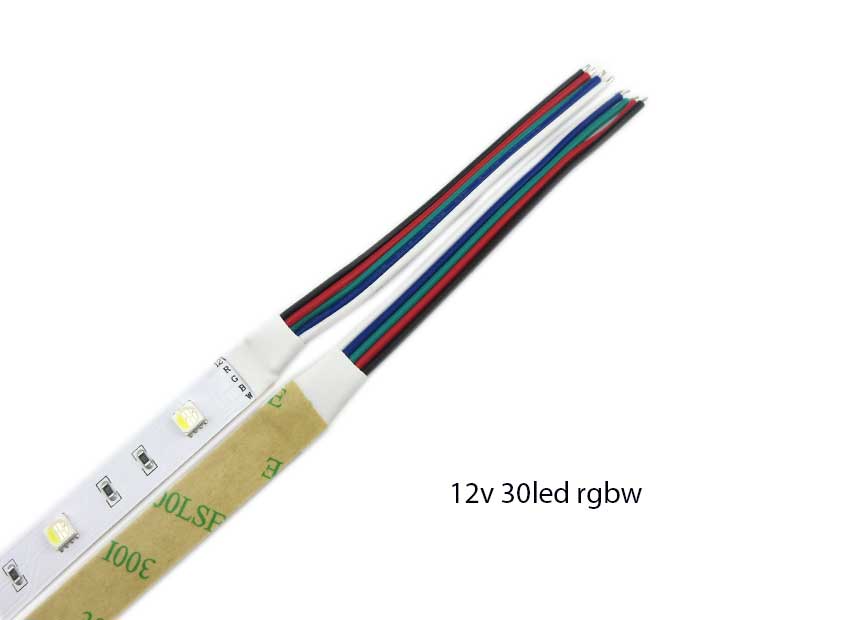

12v 30LED Rgbw LED Strip
High quality 12v smd 5050 rgbw/rgbww led strip
1. LED chip——SMD5050 R, G, B, W(WW/CW) 4 in 1 LED chip.
2. Standard Reel Length: 5meter/roll, also can be customized.
3. Cutted: you can cut this stuff pretty easily with wire cutters, Solder to the 0.1” copper pads and you’re good to go.
DC12V: cutted per 3LEDs, there are cut-lines every 5cm.
DC24V: cutted per 6LEDs, there are cut-lines every 10cm.
4. Power: the theory power is 9.6W/M
5. Power supply:
DC12V led strip: you must use a 12V DC power supply to power this strip, do not use higher than 12V,
DC24V led strip: please use 24V DC power supply, or you can destroy the entire strip.

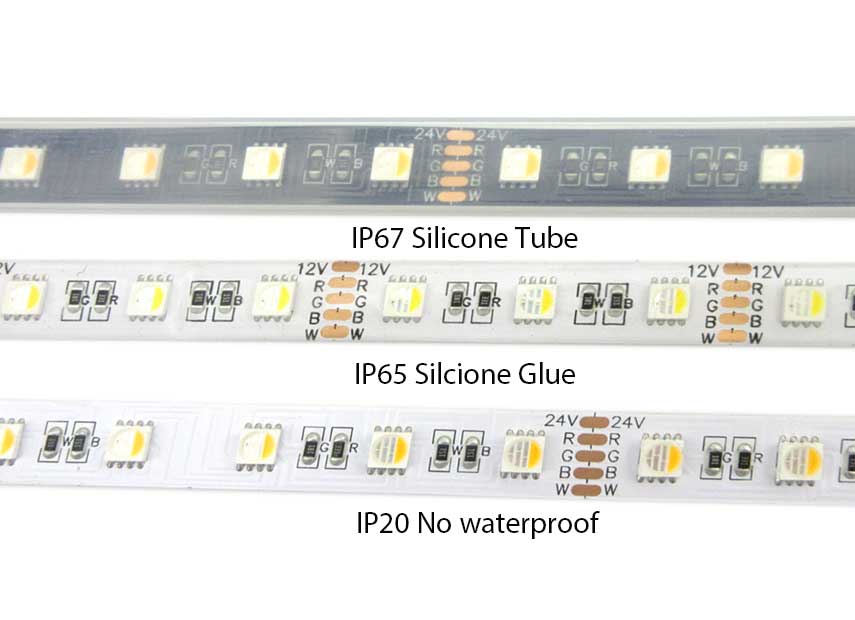

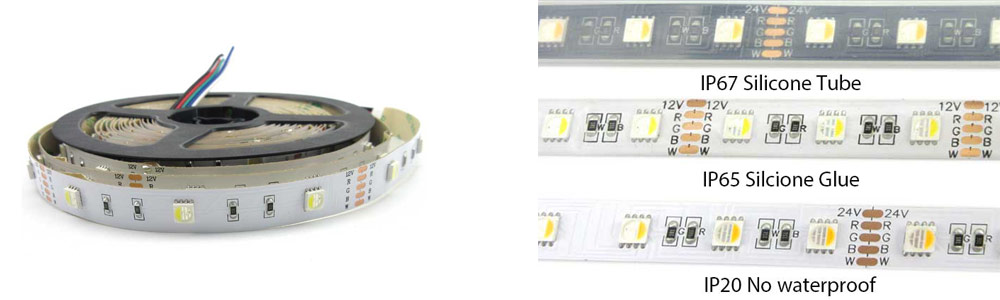

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
8. Type: RGBW, RGBCW, RGBWW——60LEDs/m, White PCB
Share This Product
Product Details
Features
1. Use special Super bright SMD5050 LED as lighting source.
2. 150/300/480 PCS LED / 5 Meters
3. Size:5000X10mm for 30 60led/m,5000X12mm for 96led/m.
4. Available Color : RGB+Warm White, RGB+Nature White, RGB+ Cool White
5. Input Voltage DC12V/DC24V
6. Max power :36W/ 72W/115.2W.
7. Can be cut by 3 SMD LED for 12V, by 6 SMD LED for 24V.
8. With 3M adhesive tape back, easy for installation if ip20(non-waterproof).
Specifications
DC12V DC24V avaliable 5050 RGBW/RGBWW/RGBCW led strip
| Item Type | 5050 rgbw led strip |
| Model | WITOP-5050RGBW30-12v |
| LED Type | High Brightness SMD 5050 |
| Beam Angle | 120o |
| Certification | CE, ROHS |
| CRI Range | 80-100 |
| Cuttable Increments | 100mm (12vdc) |
| Dimensions(mm) | 5000 x 12 x 2(L x W x H) |
| Environment, IP Rating | Indoor, IP20 IP54 ip65 ip67 ip68 |
| Input Voltage | 12 VDC |
| LED Qty per meter | 30 |
| Watta | 9.6w |
| Max Run | 5 meters |
| Color Temperature | 2700K/3000K/4000K/6000K |
| Warranty | 2 years |
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
For package
The packing :
FAQ
Q1: Can I have led strip samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Which colors of led strip light LA Lighting manufacture?
A: 2000K, 2500K, 2700K, 2900K, 3100K, 3500K, 4000K, 5500K, 6500K, RGB, RGBW, RGBA, R, G, B,Y
Q3: Which type led strip does LA Lighting has?
A: SMD2835, SMD3528, SMD5050, SMD5630, SMD020, SMD315, etc.
Q4: Which led strip power does LA Lighitng has?
A: From 2.4w/m to 43w/m
Q5: Which waterproof versions does LA Lighitng make?
A: IP20, IP65, IP67, IP68
Q6: What is the PCB width WITOP Lighting led strip?
A: 5mm-20mm all available
Q7: What is the input of WITOP Lighitng led strip?
A: DC5V, DC12V, DC24V
Q8: What’s the led strip lead time?
A: Sample :1-5days. Mass production: 7-10days.
Q9: How do you ship the led strip and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.
Q10: What is the Warranty for the LED strip?
A: we offer 2 years guarantee for led strip
