RGBWW LED Strip

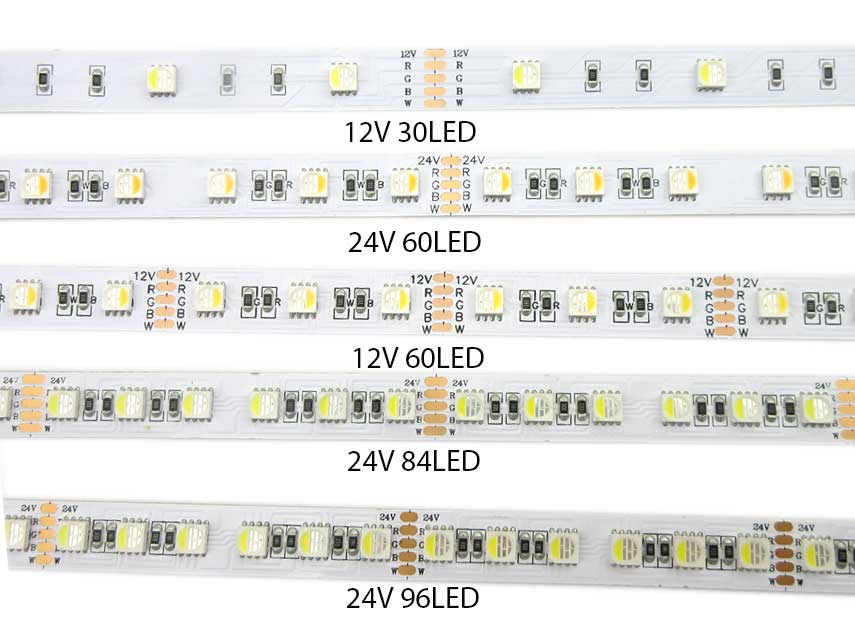

24v 96 LED Rgbw LED Strip Light
Customized length RGBWW RGBW led strip four colors in one led 24V 96led
-
1) Power 5050 TOP SMD LED as lighting resources
2)Can be cut by 6LED (DC 24v high output led strip )
3) Can be connected again by our accessories; With 3M adhersive tape back .
4) High flexibility ,high transparence, flame-proof and environmental friendliness .
5) With silicone transparence waterproof connector can easily connect and totally waterproof.
6)Waterproof Material: Silicone hollow tube ,Silicone glue and Silicone transparent waterproof connector
7)2 years warranty
Share This Product
Product Details
Features
1. LED chip——SMD5050 R, G, B, W(WW/CW) 4 in 1 LED chip.
2. Standard Reel Length: 5meter/roll, also can be customized.
3. Cutted: you can cut this stuff pretty easily with wire cutters, Solder to the 0.1” copper pads and you’re good to go.
DC12V: cutted per 3LED, there are cut-lines every 5cm.
DC24V: cutted per 6LED, there are cut-lines every 10cm.
4. Power: 12W/M.
5. Power supply:
DC12V led strip: you must use a 12V DC power supply to power this strip, do not use higher than 13V,
DC24V led strip: please use 24V DC power supply, or you can destroy the entire strip.
6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
8. Type: RGBW, RGBCW, RGBWW——60LEDs/m, White PCB
Waterproof——DC12V; Waterproof——DC24V
Non-waterproof ——DC12V; Non-waterproof——DC24V
9. Color temperature: RGBWW: RGB+3000K; RGBW: RGB+6000K; RGBCW: RGB+10000K
10. Brand: Witop LED
Specifications
5050 RGBW LED Strip Light RGB LED Flexible Strip Waterproof
| Item Type | 5050 rgbw led strip |
| Model | WITOP-5050RGBW60-12/24V |
| LED Type | High Brightness SMD 5050 |
| Beam Angle | 120o |
| Certification | CE, ROHS |
| CRI Range | 80-100 |
| Cuttable Increments | 50mm (12vdc) 100mm (24vdc) |
| Dimensions(mm) | 5000 x 12(L x W) |
| Environment, IP Rating | Indoor, IP20 IP54 ip65 ip67 ip68 |
| Input Voltage | 24V DC |
| LED Qty per meter | 60 |
| LED Spacing | 10.41mm |
| Max Run | 5 meters |
| Color Temperature | 2700K/3000K/4000K/6000K |
| Warranty | 2 years |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
Related Product
| Part No | LED Qty | Voltage | Power | Color | CRI |
| WTP-5050-RGBXW | SMD5050
30/m |
DC12V
DC24V |
9.6W/m | RGB+ Warm White | ≥80 |
| RGB+ Nature White | |||||
| RGB+ Cool White | |||||
| WTP-5050-RGBXW | SMD5050
60/m |
DC12V
DC24V |
19.2W/m | RGB+ Warm White | ≥80 |
| RGB+ Nature White | |||||
| RGB+ Cool White | |||||
| LA-FA-5050-RGBXW | SMD5050
96/m |
DC12V
DC24V |
30.7W/m | RGB+ Warm White | ≥80 |
| RGB+ Nature White | |||||
| RGB+ Cool White |
