WS2813 Addressable LED Strip Light
WS2813 60LED Digital LED Strip
WS2813control ICs, each LED is independently addressable (60 individually addressable LEDs in 1 meter), opening up entirely new lighting possibilities.
WS2813 led have 2 data signal ,one is DI,one is BI,so when you use those led chip to make led strip , one led broken will not affect another led unless two consecutive led is broken , so WS2813 led make digital led project is more reliable than before.
Share This Product
Product Details
Features
- Features:1. ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.
2. One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs
3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
4. With 4pin LED lamps for the digital strip
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.
This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
6. This is the highest resolution for the moment
7. Controller, Power supply are available
8. For WS2812B IC, we have DC5V; 30/60/96/144 leds per meter. Great choice.
9. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
10. Low voltage DC power supply safety, Convenience.

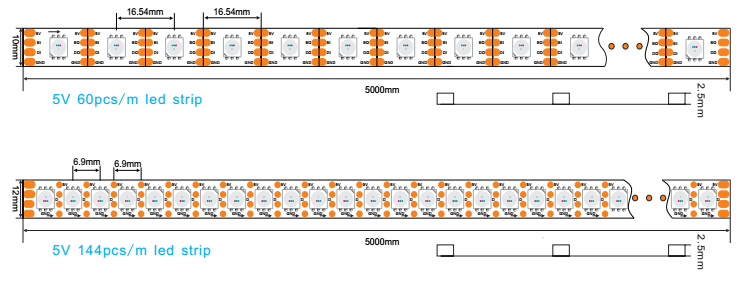

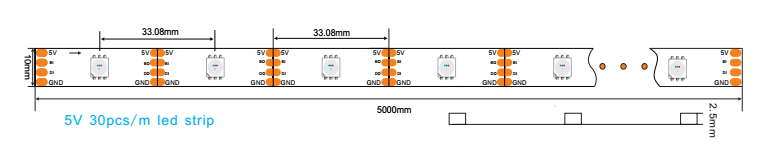

Dimension
Specifications
1 meter led strip Specifications
| Custom Lengths Available: | Yes |
| Input Voltage: | 5VDC |
| Max Power Consumption: | 18 W per mtr |
| LED Quantity: | 60 per mtr |
| LED Classification: | Pixel RGB SMD |
| IC Type | WS2813 |
| Viewing Angle: | 120° |
| Standard Reel Length: | 5mtr |
| Operating Temperature: | -20 ~ +60°C |
| Storage Temperature: | -40~+80 °C |
| IP Rate: | non-waterproof,IP65,IP67,IP68 |
| Material: | Super slim flexible PCB |
| PCB Color: | Black and White both avaliable |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
