Ws2813 Addressable Led Strip Light

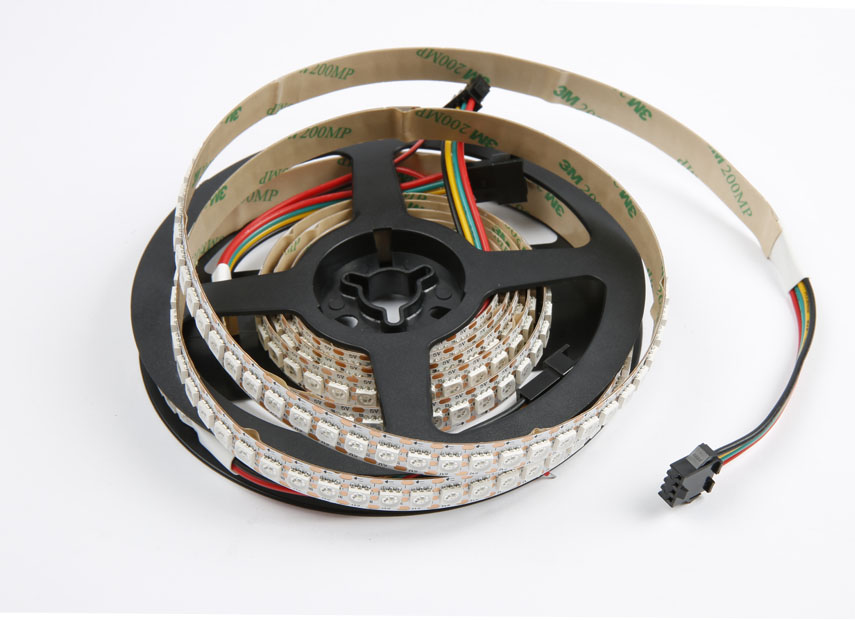

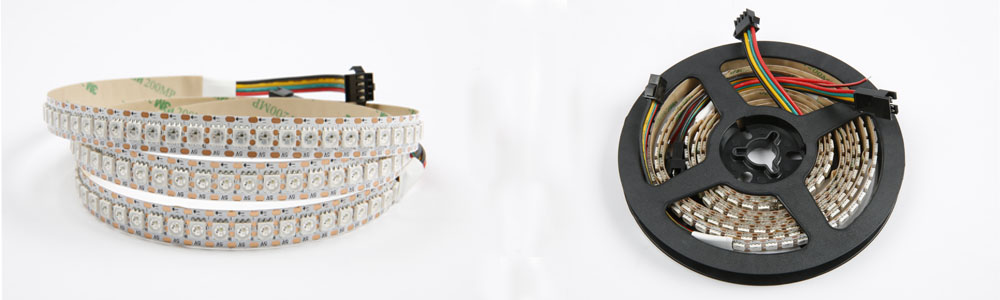

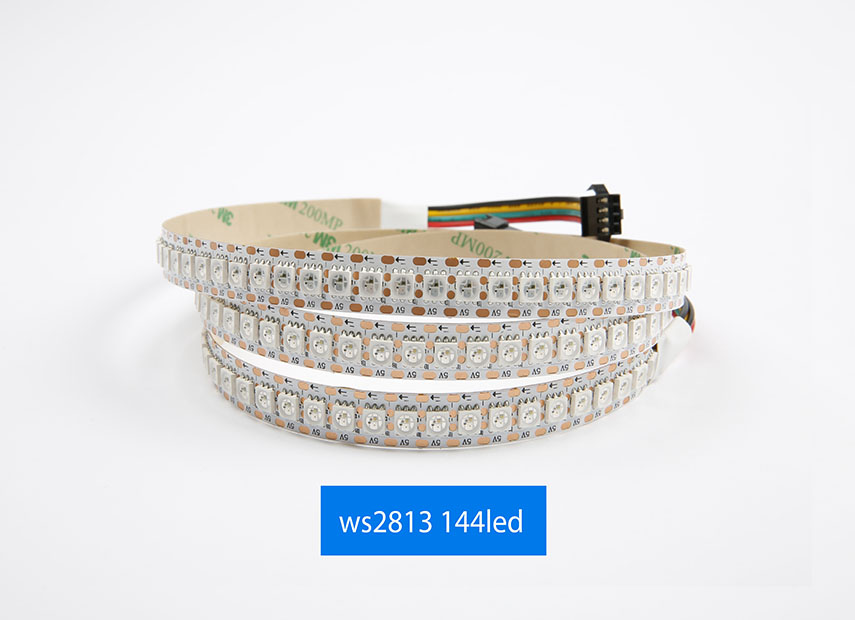

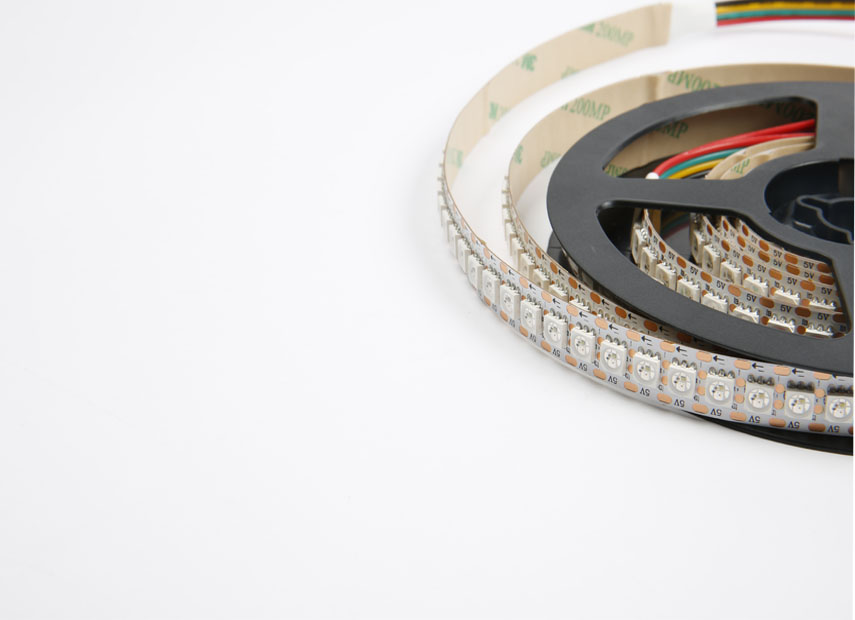

WS2813 144led/m Led Strip

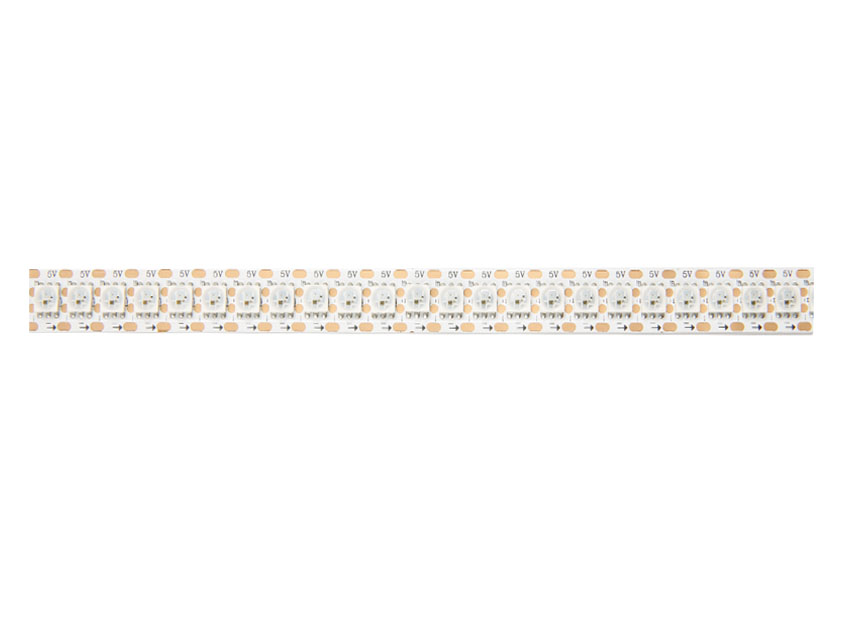

WS2813control ICs, each LED is independently addressable (144 individually addressable LEDs in 1 meter), opening up entirely new lighting possibilities.

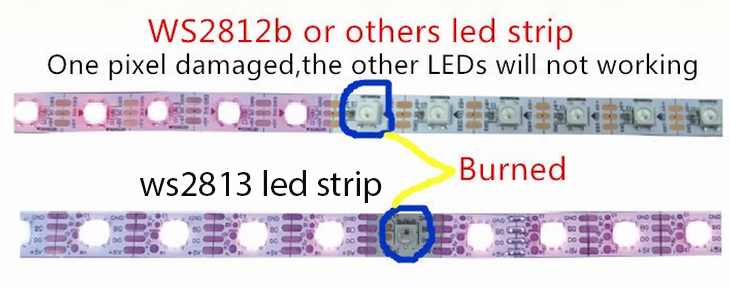

WS2813 led have 2 data signal ,one is DI,one is BI,so when you use those led chip to make led strip , one led broken will not affect another led unless two consecutive led is broken , so WS2813 led make digital led project is more reliable than before.
Share This Product
Product Details
Features
Features:
1. ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.
2. One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs
3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
4. With 4pin LED lamps for the digital strip
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.
This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
6. This is the highest resolution for the moment
7. Controller, Power supply are available
8. For WS2812B IC, we have DC5V; 30/60/96/144 leds per meter. Great choice.
9. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
10. Low voltage DC power supply safety, Convenience.
Dimension
Specifications
1 meter led strip Specifications
| Custom Lengths Available: | Yes |
| Input Voltage: | 5VDC |
| Max Power Consumption: | 43.2 W per mtr |
| LED Quantity: | 144 per mtr |
| LED Classification: | Pixel RGB SMD |
| IC Type | WS2813 |
| Viewing Angle: | 120° |
| Standard Reel Length: | 5mtr |
| Operating Temperature: | -20 ~ +60°C |
| Storage Temperature: | -40~+80 °C |
| IP Rate: | non-waterproof,IP65,IP67,IP68 |
| Material: | Super slim flexible PCB |
| PCB Color: | Black and White both avaliable |
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
