Pixel Panel P6/P10/P16

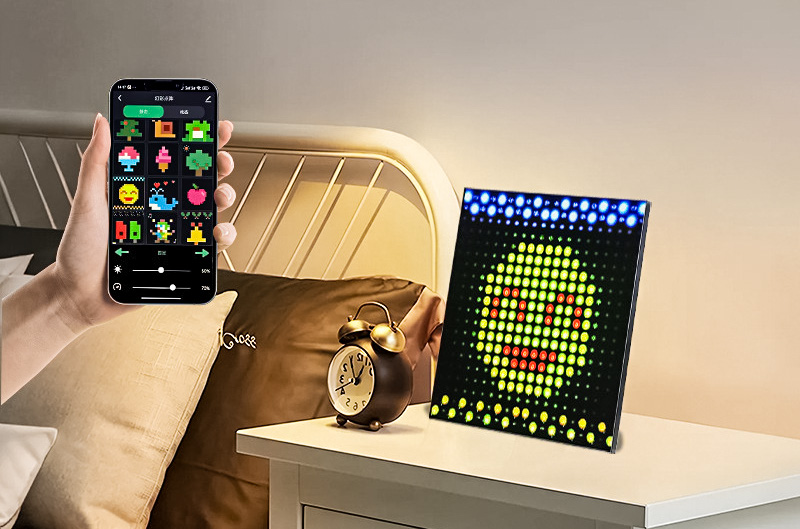

The LED full-color soft screen is a flexible display device made of high-quality LED and flexible PCB boards. It has the characteristics of bendability and high resolution.
Its full-color display effect is gorgeous and lifelike, supports complex patterns, video playback and text display, and is suitable for scenes such as stage backgrounds, commercial advertisements, special shaped displays and creative decorations.
It is easy to install and maintain, and has the advantages of high brightness, low power consumption and long life.
Specification:
- Power(W): 19.2W-270W
- Voltage/(V):DC5V
- Size(mm):500×500
- LED TyPe:SMD5050
- LED QTY(Sheet):64-900LEDs
- LED Segment(seg):1LEDs
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | Color | IC Protocol | LEDs/pcs | Pixels/m | Voltage(V) | Max Power(w/pcs) |
Product size(mm) |
| WP-H5050-P10-16*16 | RGB | WS2812B/SK6812 | 256 | 256 | 5 | 76 | 160×160 |
| WP-H5050-P10-30*22 | RGB | WS2812B/SK6812 | 660 | 660 | 5 | 198 | 300×220 |
| WP-H5050-P10-8*32 | RGB | WS2812B/SK6812 | 256 | 256 | 5 | 76 | 80×320 |
| WP-H5050-P10-8*8 | RGB | WS2812B/SK6812 | 64 | 64 | 5 | 19.2 | 80×80 |
| WP-H5050-P10-8*8 | RGB | WS2813 | 64 | 64 | 5 | 19.2 | 80×80 |
| WP-H5050-P16-30*30 | RGB | WS2812B/SK6812 | 900 | 900 | 5 | 270 | 500×500 |
| WP-H5050-P16-20*15 | RGB | WS2812B/SK6812 | 300 | 300 | 5 | 120 | 332×249 |
| WP-H5050-P6-1024D | RGB | SK6805 | 1024 | 1024 | 5 | 76.8 | 200×200 |
