UCS512C3 3535RGB 60/96Leds/m

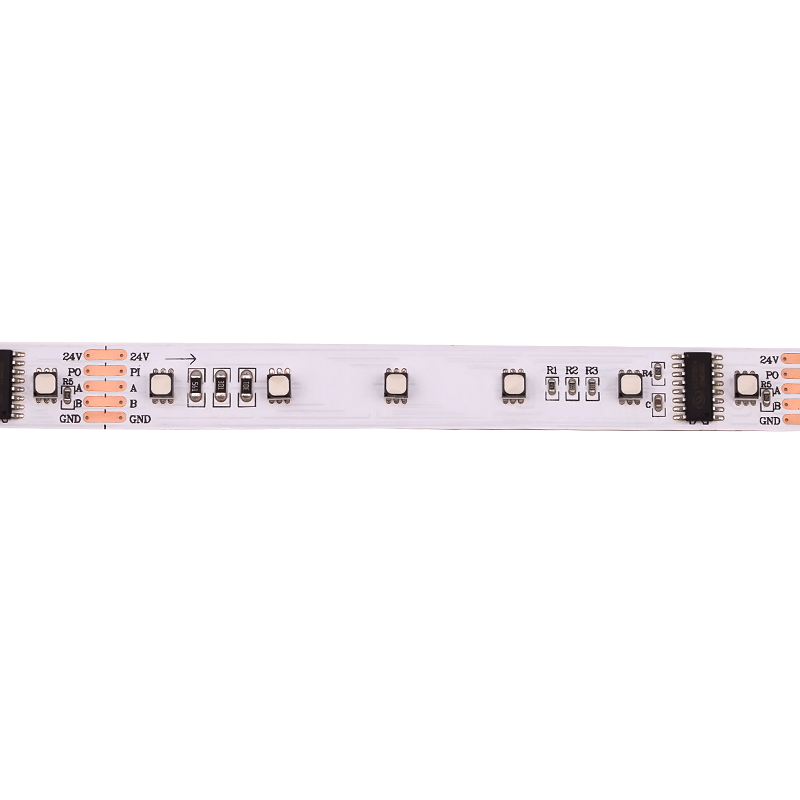

This DMX512 digital smart LED strip light has SMD3535 RGB LEDs and DMX512 driving IC per meter.
24V DC voltage input.Typically UCS512 provides parallel transmission of signals , which ensures the transmission of the signal if any-single chip damages, the other pixels or leds works well without any affect.
Specification:
- 4.32W/FT(14.4W/M)
- 6 LEDs per pixel(18 LEDs/ft,60 LEDs/m)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with DMX512
- IP20/65/ 67/68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Qty | Voltage(V) | Max Power(w/m) | PCB Width(mm) | Grey Levels | Pixels | Cut Length(mm) | CRI |
| WP-UCS512C3-3535RGB-60-IP20 | 60 | 10 | 24 | 14.4 | 12 | 256 | 10 | 100.00 | / |
| WP-UCS512C3-3535RGB-96-IP20 | 96 | 16 | 24 | 36 | 15 | 256 | 16 | 62.50 | / |
