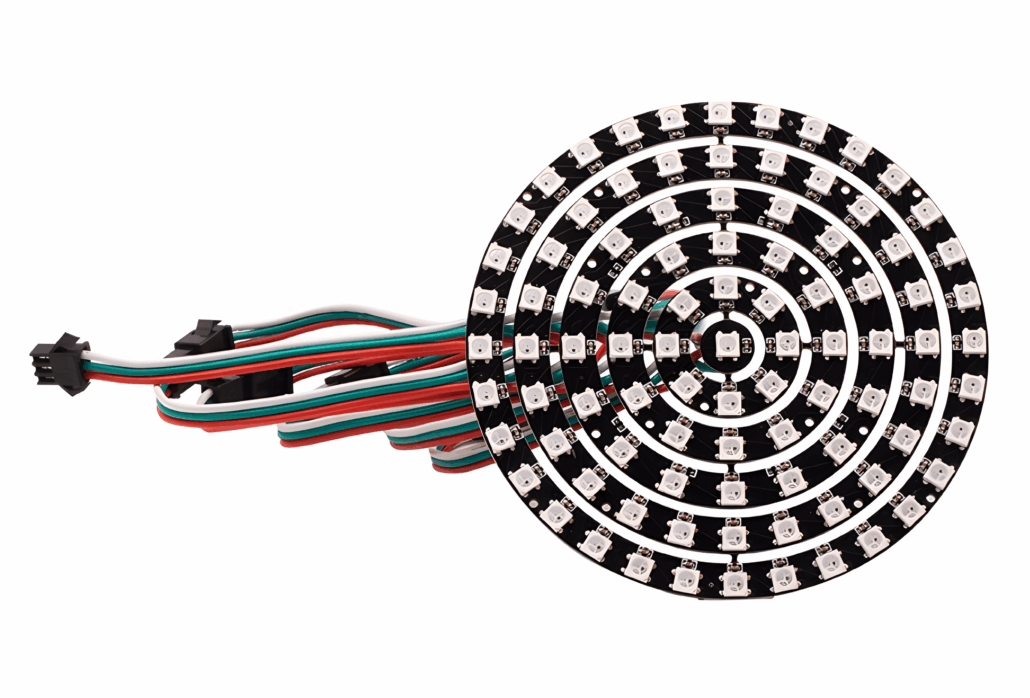

Pixel Ring WS2812B/SK6812 1-32 leds
The pixel ring is an addressable digital programmable RGB pixel round lamp.
The LEDs are made of high-quality SMD5050, 5v power supply, and built-in chips Sk6812 and Ws2812b.
It is a multi-functional circular digital panel light LED module ring. Suitable for use in auto parts and various equipment.
Using the matching controller, you can achieve any multi-color changing effect.
Specification:
- Power(W): 96
- Voltage/(V):DC5-12V
- Diameter:ID96xOD112
- LED TyPe:SMD5050
- LED QTY(Sheet):32LEDs
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | Color | IC Protocol | LEDs/pc | Pixels/pc | Voltage(V) | Max Power(w/pc) | Inner Diameter(mm) | Outer Diameter(mm) |
| WP-R5050RGB-1D | RGB/RGBW | WS2812B/SK6812 | 1 | 1 | 5/12 | 0.2 | / | 12 |
| WP-R5050RGB-8D | RGB/RGBW | WS2812B/SK6812 | 8 | 8 | 5/12 | 2.4 | 16 | 32 |
| WP-R5050RGB-12D | RGB/RGBW | WS2812B/SK6812 | 12 | 12 | 5/12 | 3.6 | 36 | 52 |
| WP-R5050RGB-16D | RGB/RGBW | WS2812B/SK6812 | 16 | 16 | 5/12 | 4.8 | 56 | 72 |
| WP-R5050RGB-24D | RGB/RGBW | WS2812B/SK6812 | 24 | 24 | 5/12 | 7.2 | 76 | 92 |
| WP-R5050RGB-32D | RGB/RGBW | WS2812B/SK6812 | 32 | 32 | 5/12 | 9.6 | 96 | 112 |
Application
