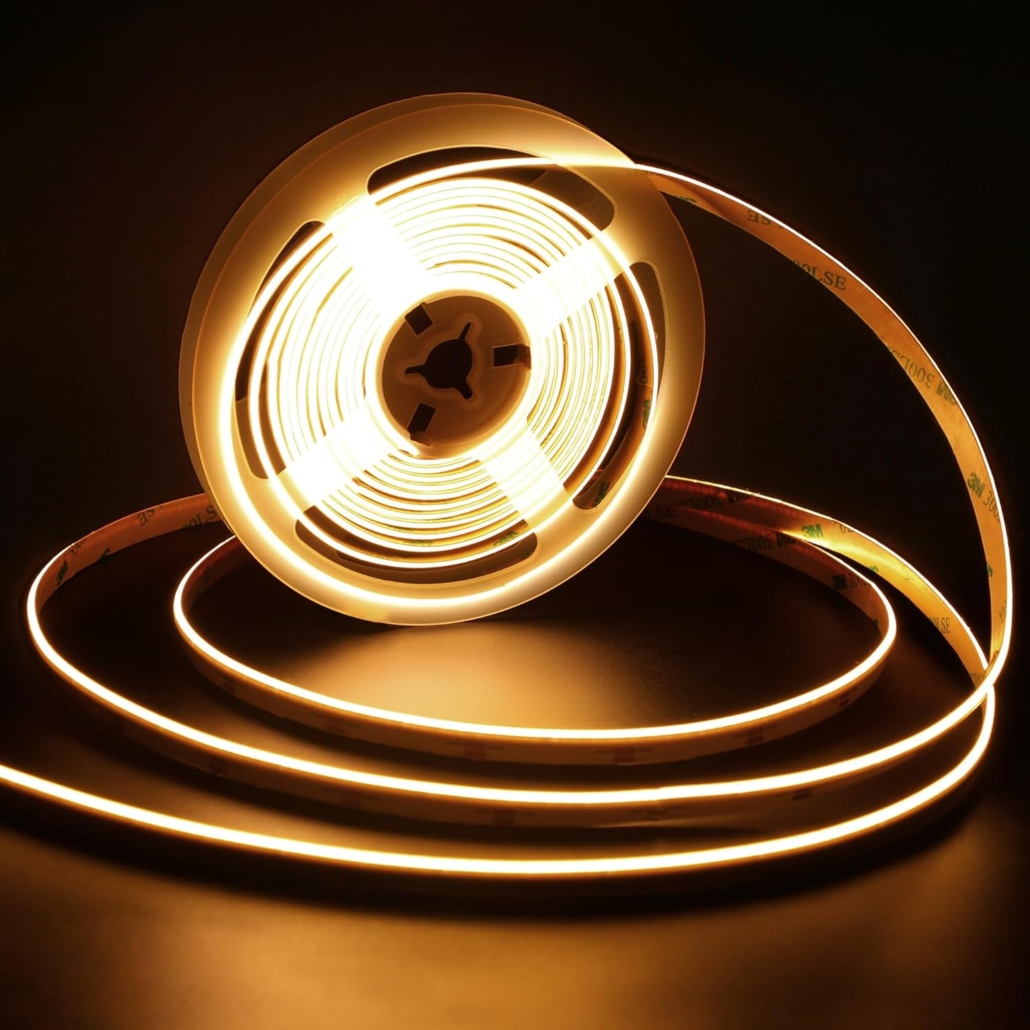

12V 24V COB White Color Flexible LED Strip With 320 Chips/m 8/6.6mm Width
COB (Chip on Board)single color strip light uses high density chips with glue to achieve uniform light emission, and no light spots.
It has features of energy saving,heat dissipating and can be cuttable.
More than 90 Ra shows realistic color of items. SDCM<3 ensures the light consistency.
- 2.64W/FT(8.8W/M)·320 LED Chip/M
- 32.8ft(10m) max.run length
- 180 degree beam angle
- Cut Length:50MM·IP20/65/67/68rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) | PCB Width(mm) | Color Temperature | Luminous Efficacy(LM/W) | Voltage（V） | Cut Length(mm) | CRI |
| WP-WCOB-320 | 320 | 8.8 | 8 | 2650-2750K | 81-99 | 12/24 | 25/50 | 90+ |
| WP-WCOB-320 | 320 | 8.8 | 8 | 2800-3200K | 81-99 | 12/24 | 25/50 | 90+ |
| WP-WCOB-320 | 320 | 8.8 | 8 | 3900-4100K | 90-110 | 12/24 | 25/50 | 90+ |
| WP-WCOB-320 | 320 | 8.8 | 8 | 6000-6500K | 99-121 | 12/24 | 25/50 | 90+ |
| WP-WCOB-320 | 320 | 7.7 | 6.6 | 2850-3150K | 81-99 | 12 | 12.5 | 90+ |
| WP-WCOB-320 | 320 | 7.7 | 6.6 | 3850-4150K | 81-99 | 12 | 12.5 | 90+ |
| WP-WCOB-320 | 320 | 7.7 | 6.6 | 5850-6150K | 81-99 | 12 | 12.5 | 90+ |
Aplication
