WS2811/SM16703/UCS1903/UCS8903/ UCS2903 30-90 Leds/m 15mm

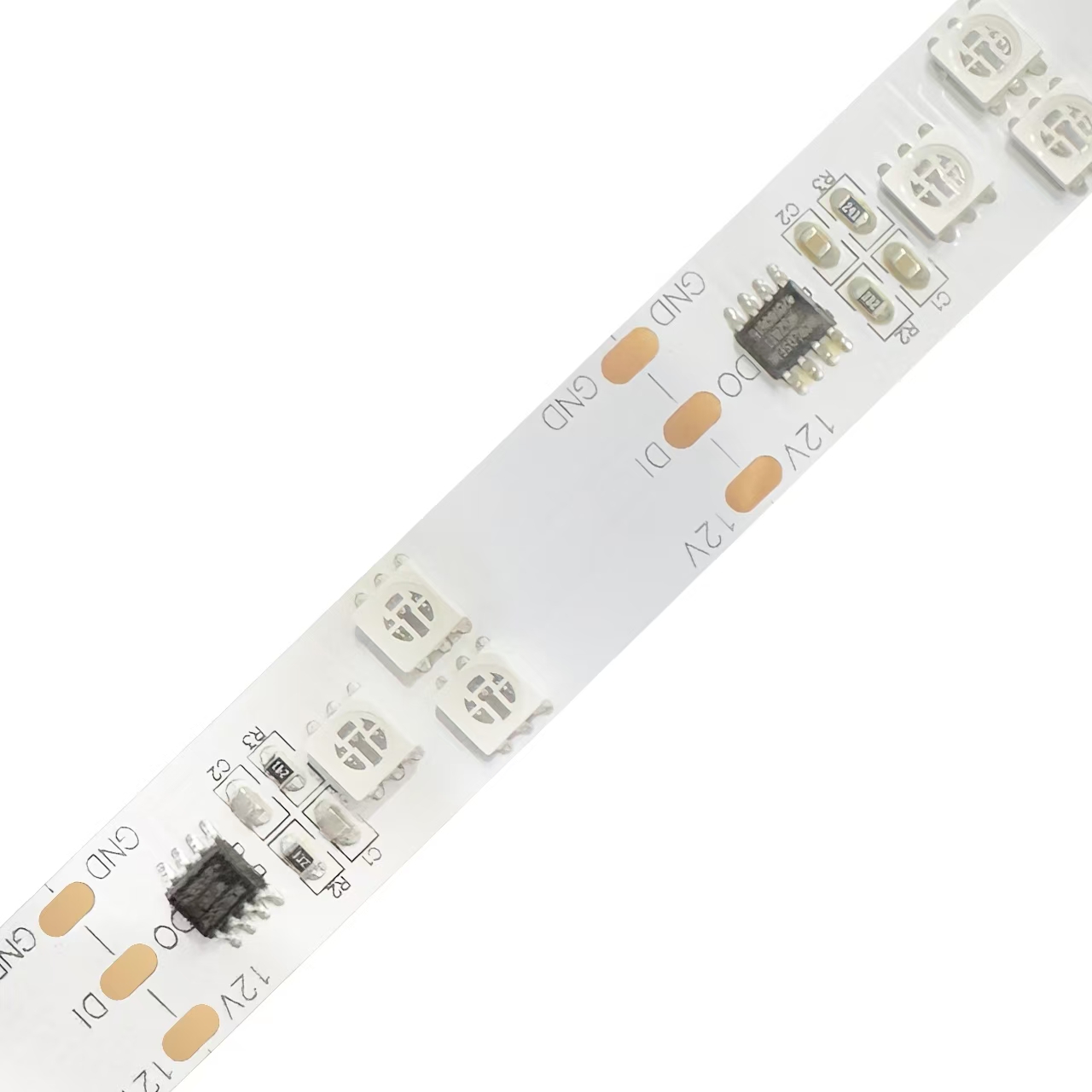

The Tri-Lumi smart LED strip light features a groundbreaking triangular ” 品 “-shaped arrangement of LEDs, creating a unique and eye catching lighting effect.
Powered by the WS2811 external IC, 3 LEDs as one group is individually addressable.
Unlike conventional linear strips, this 3-point clustered layout delivers a widerillumination surface, distributing light more evenly forenhanced brightness and coverage.
Specification:
- 4.3W/FT(14.4W/M)
- 3LEDs per pixel,60 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with WS2811/SM16703/UCS1903/UCS5603/
- UCS2903
- IP20/65/ 67 /IP68 rating
- 12V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) | PCB Width(mm) | Cut Length(mm) |
| WP-H5050RGB-30-10 | 30 | WS2811/SM16703/UCS1903/ UCS5603/UCS2903 | 10 | 12 | 8 | 15 | 100 |
| WP-H5050RGB-60-10 | 60 | WS2811/SM16703/UCS1903/ UCS5603/UCS2903 | 20 | 12 | 16 | 15 | 50 |
| WP-H5050RGB-90-10 | 90 | WS2811/SM16703/UCS1903/ UCS5603/UCS2903 | 30 | 12 | 24 | 15 | 33.3 |
Application
