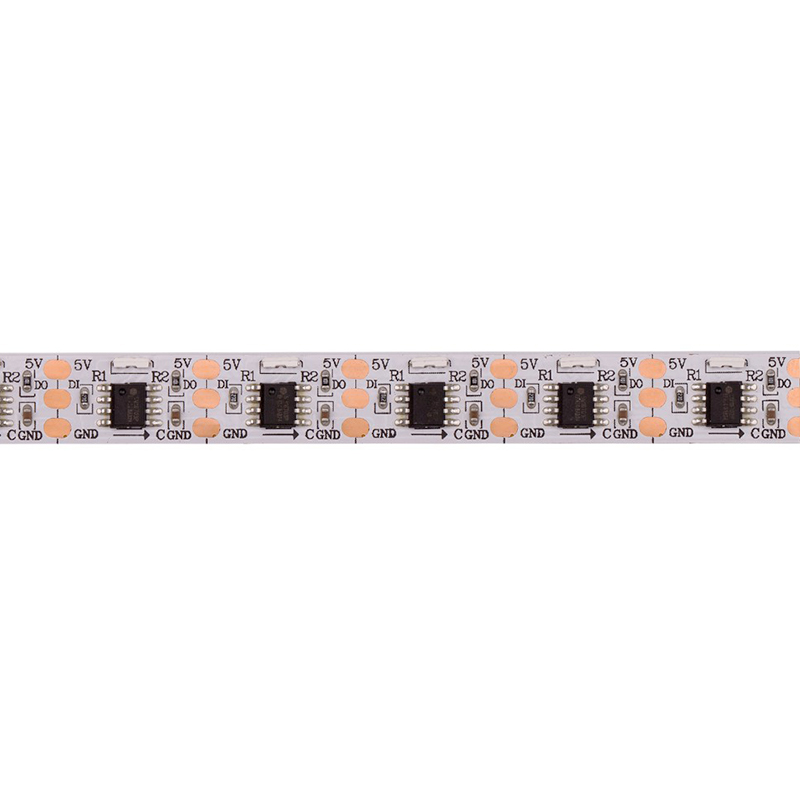

WS2811/CUS1903/SM16703 Side Emitting
WS2811 020RGB side-emitting smart LED strip light uses compact 020RGB side-emitting LEDs and WS2811 smart IC, supporting addressable function to achieve rich dynamic phantom effects.
Its side-emitting design is suitable for special scenes such as narrow borders and line lights, providing a unique lighting angle and uniform light effect.
The light strip features high brightness, low power consumption and flexible installation.
It is widely used in smart homes, stage decorations, advertising displays and creative lighting, providing more possibilities for lighting design.
Specification:
- 1.8W/FT(6W/M)
- 1 LEDs per pixel,60 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled withWS2811/CUS1903/SM16703
- IP20/65/ 67 /IP68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H020RGB-60-10 | 60 | WS2811/CUS1903/SM16703 | 60 | 5 | 6 | 10 | 33.3 |
