UCS512B3 5050RGB/W/CCT

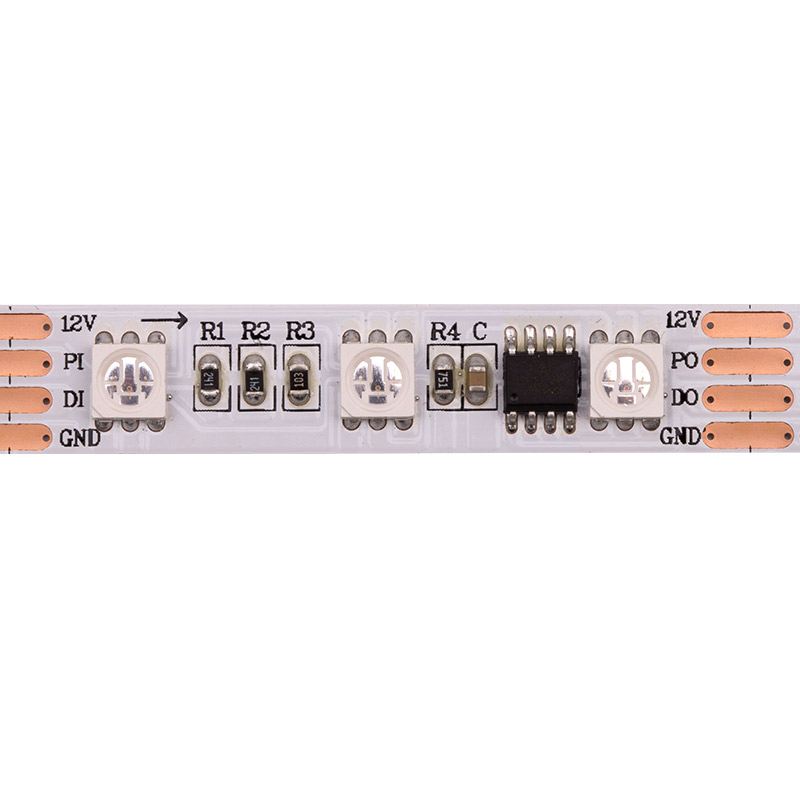

This DMX512 digital smart LED strip light has 60 SMD5050 RGB LEDs and 20 DMX512 driving IC per meter.
12V DC voltage input.Typically UCS512 provides parallel transmission of signals, which ensures the transmission of the signal if any-single chip damages, the other pixels or leds works well without any affect.
Specification:
- 4.3W/FT(14.4W/M)
- 6 LEDs per pixel(18 LEDs/ft,60 LEDs/m)
- 16.4ft(5m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with DMX512
- IP20/65/ 67/68 rating
- 12V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Qty | Voltage(V) | Max Power(w/m) | PCB Width(mm) | Grey Levels | Pixels | Cut Length(mm) | CRI |
| WP-UCS512B3-5050RGB-60-IP20 | 60 | 60 | 12 | 15.6 | 10 | 256 | 60 | 16.66 | / |
| WP-UCS512B3-5050RGB-60-IP20 | 60 | 20 | 12 | 14.4 | 10/12 | 256 | 20 | 100.00 | / |
| WP-UCS512B3-5050RGB-72-IP20 | 72 | 12 | 24 | 17.2 | 10 | 256 | 12 | 83.33 | / |
| WP-UCS512B3-5050W-60-IP20 | 60 | 60 | 12 | 15.6 | 10 | 256 | 60 | 16.66 | 80/90/95+ |
| WP-UCS512B3-5050W-60-IP20 | 60 | 20 | 12 | 14.4 | 10/12 | 256 | 20 | 100.00 | 80/90/95+ |
| WP-UCS512B3-5050W-72-IP20 | 72 | 12 | 24 | 17.2 | 10 | 256 | 12 | 83.33 | 80/90/95+ |
| WP-UCS512B3-5050CCT-60-IP20 | 60 | 60 | 12 | 9.6 | 10 | 256 | 60 | 16.66 | 80/90/95+ |
| WP-UCS512B3-5050CCT-60-IP20 | 60 | 20 | 12 | 9.6 | 10/12 | 256 | 20 | 100.00 | 80/90/95+ |
| WP-UCS512B3-5050CCT-72-IP20 | 72 | 12 | 24 | 11.52 | 10 | 256 | 12 | 83.33 | 80/90/95+ |
