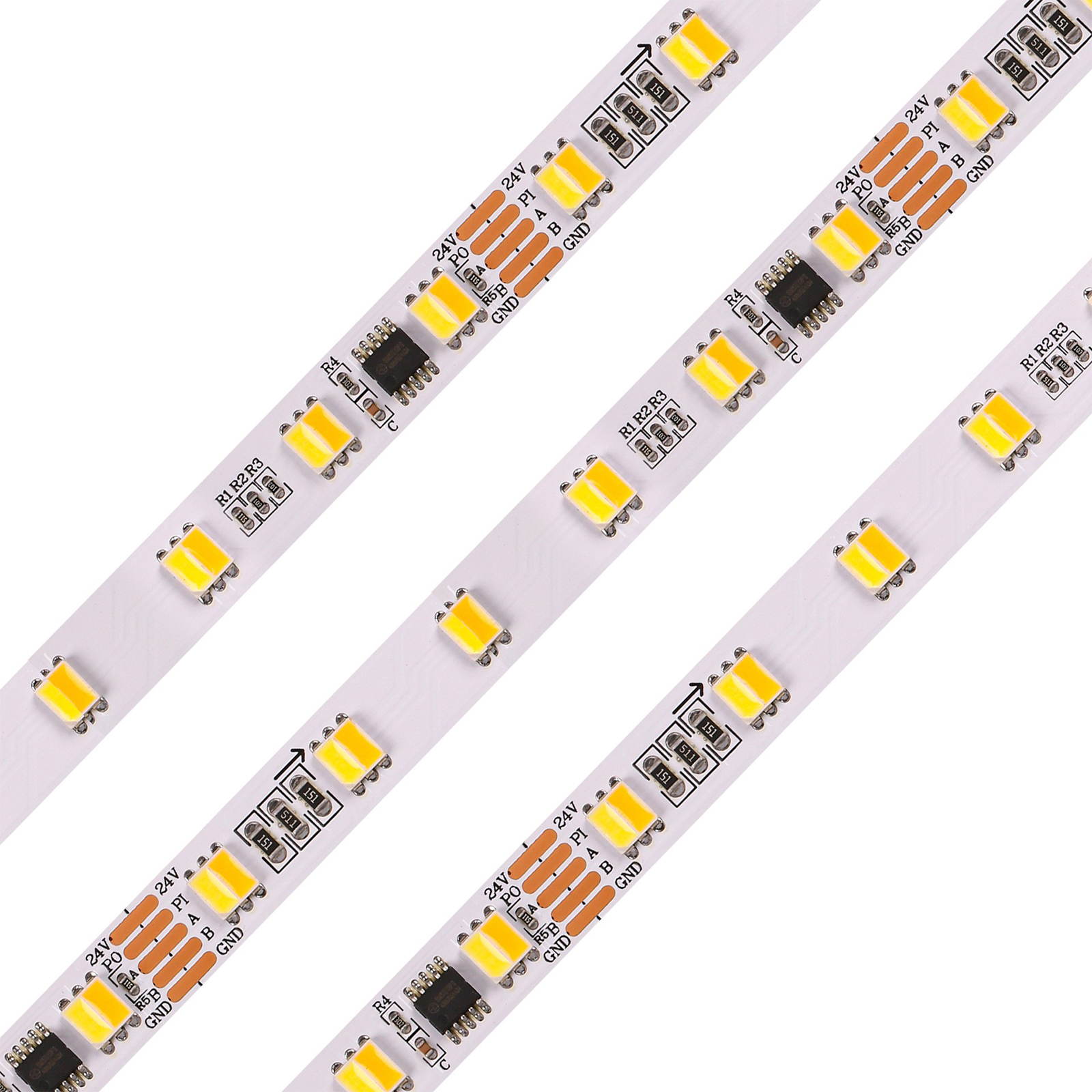

UCS512/TM512AC/SM18512/5050 CCT
DMX512 digital smart LED strip light provides parallel transmission of signals. If any chip is damaged, it will not have any impact on other pixels or LEDs.
CCT offer 3000K-6500K changeable color temperature. These are widely used in bedroom, kitchen, bathroom, office and many other places.
Specification:
- 2.88W/FT(9.6W/M)
- 6 LEDs per pixel(18leds/ft,60 LEDs/m)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with DMX512
- IP20/65/ 67/68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Qty | Voltage(V) | Max Power(w/m) | PCB Width(mm) | Grey Levels | Pixels | Cut Length(mm) | CRI |
| WP-DMX512-5050CCT-30-IP20 | 30 | 10 | 12 | 4.8 | 12 | 256 | 10 | 100.00 | 80/90/95+ |
| WP-DMX512-5050CCT-36-IP20 | 36 | 6 | 24 | 5.6 | 15 | 256 | 6 | 100.00 | 80/90/95+ |
| WP-DMX512-5050CCT-48-IP20 | 48 | 8 | 24 | 7.68 | 10/12 | 256 | 8 | 125.00 | 80/90/95+ |
| WP-DMX512-5050CCT-60-IP20 | 60 | 10 | 24 | 9.6 | 10/12 | 256 | 10 | 100.00 | 80/90/95+ |
| WP-DMX512-5050CCT-60-IP20 | 60 | 20 | 12 | 9.6 | 10/12 | 256 | 10 | 50.00 | 80/90/95+ |
| WP-DMX512-5050CCT-70-IP20 | 70 | 10 | 24 | 14.4 | 12 | 256 | 10 | 83.33 | 80/90/95+ |
