TM1824/SM16704/TM1814/UCS2904/ UCS8904/WS2814A 30-70Leds/m

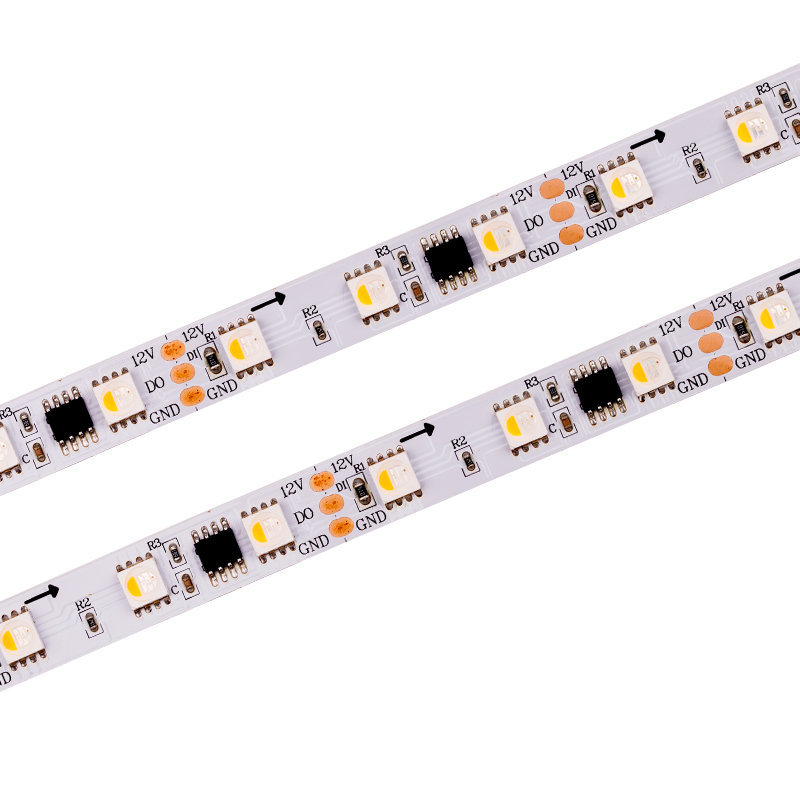

SM16704 RGBW smart LED strip light is a high-performance smart LED strip that uses SM16704 chip and supports RGBW full-color display.
It has the characteristics of high brightness, low power consumption, uniform color, and long life.
It supports addressable function to achieve a variety of dynamic effects, and is suitable for indoor and outdoor decorative lighting, stage lighting, architectural outline lights, billboards and other scenarios.
Specification:
- 4.3W/FT(14.4W/M)
- 6LEDs per pixel,60LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with TM1824/SM16704/TM1814/UCS2904/UCS8904
- IP20/65/ 67 /68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050RGBW-30D-10 | 30 | TM1824/SM16704/TM1814/UCS2904/ UCS8904/WS2814A |
30 | 12 | 9 | 10 | 100 |
| WP-H5050RGBW-60D-10 | 60 | TM1824/SM16704/TM1814/UCS2904/ UCS8904/WS2814A |
60 | 12 | 14.4 | 10 | 50 |
| WP-H5050RGBW-60D-10 | 60 | TM1824/SM16704/TM1814/UCS2904/ UCS8904/WS2814A |
60 | 24 | 14.4 | 10 | 100 |
| WP-H5050RGBW-70D-10 | 70 | TM1824/SM16704/TM1814/UCS2904/ UCS8904/WS2814A |
70 | 24 | 14.4 | 10 | 100 |
