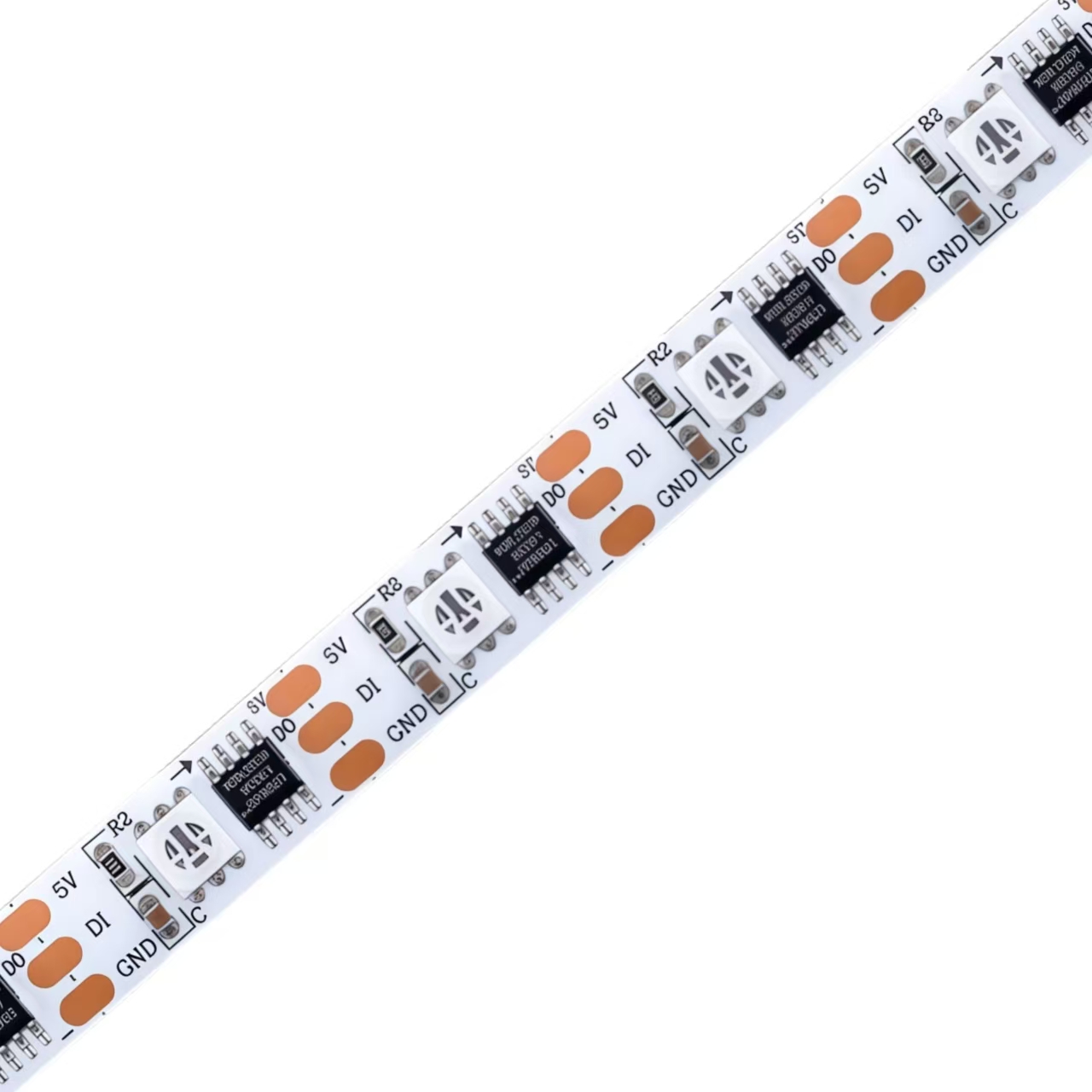

WS2811/SM16703/UCS1903/UCS8903/ UCS2903 30-42 Leds/m 5V
WS2811 5V smart LED strip light is a high-performance smart light strip that uses the WS2811 smart IC, supports 5V power supply.
Even if a single LED is damaged, it will not affect the normal operation of the others.
The light strip has rich colors, smooth dynamic effects, high brightness and low power consumption.
Suitable for smart home, advertising decoration, stage lighting, landscape lighting and other scenarios.
It is an excellent choice for realizing personalized lighting design.
Specification:
- 3.7W/FT(12.6W/M)
- 1LEDs per pixel,42 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with WS2811/SM16703/UCS1903/UCS8903/
- UCS2903
- IP20/65/ 67 /IP68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050RGB-30-10 | 30 | WS2811/SM16703/UCS1903/ UCS8903/UCS2903 |
30 | 5 | 9 | 10 | 33.3 |
| WP-H5050RGB-42-10 | 42 | WS2811/SM16703/UCS1903/ UCS8903/UCS2903 |
42 | 5 | 12.6 | 10 | 23.8 |
| WP-H020RGB-60-10 | 60 | WS2811/SM16703/UCS1903/ UCS8903/UCS2903 |
60 | 5 | 6 | 10 | 16.6 |
