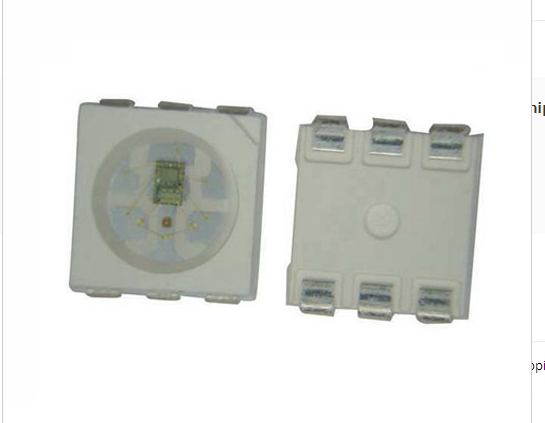

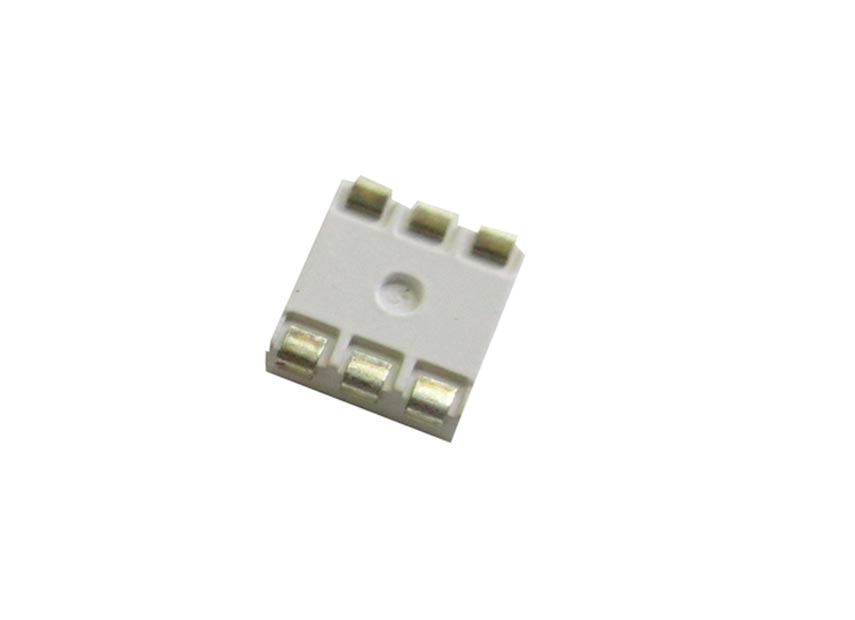

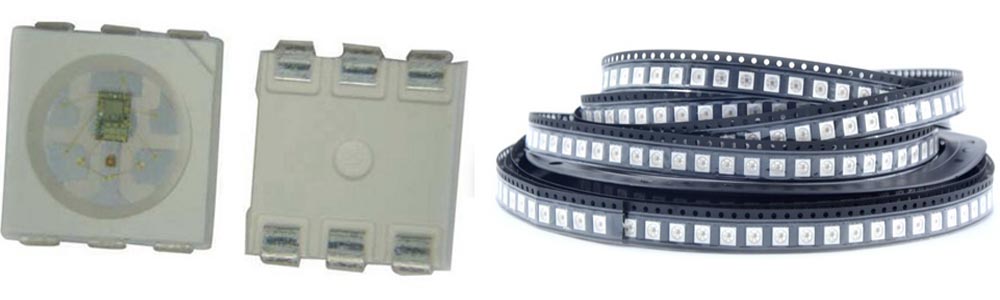

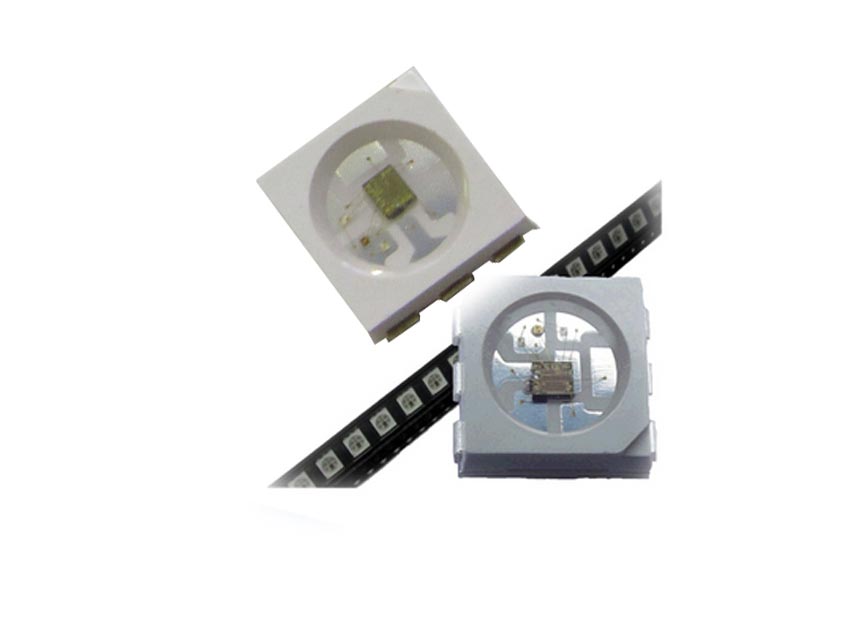

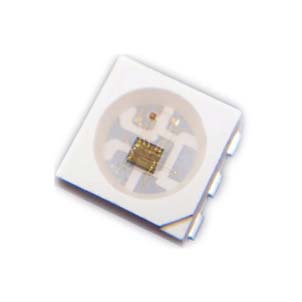

APA102C Addressable LED Chip
APA102C 5v Programmable Rgb Led Chip

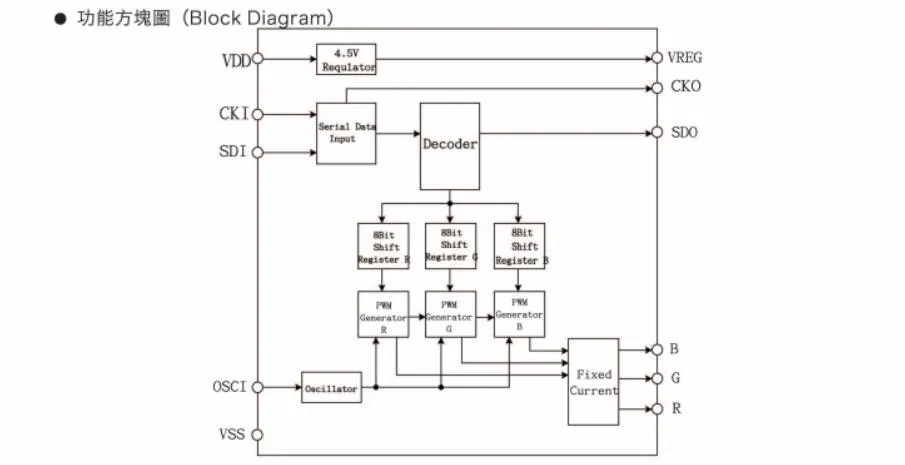

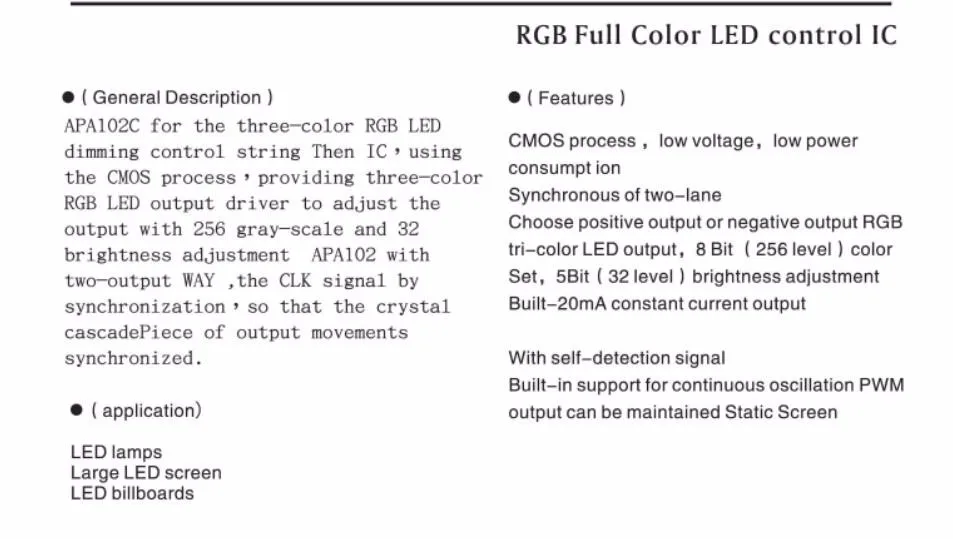

APA102C is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process
to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment
,APA with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated ,so that the
crystal cascade piece of output movement is sychronizated
Share This Product
Product Details
Features
- Feature
CMOS process,low voltage ,low consumption
Synchronization of two-lane
Choose positive output or negative RGB three-color LED output

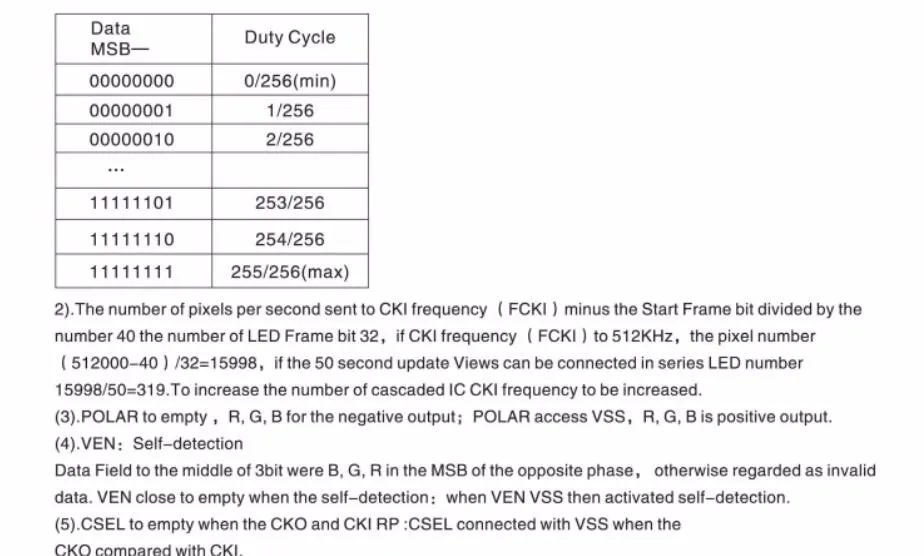

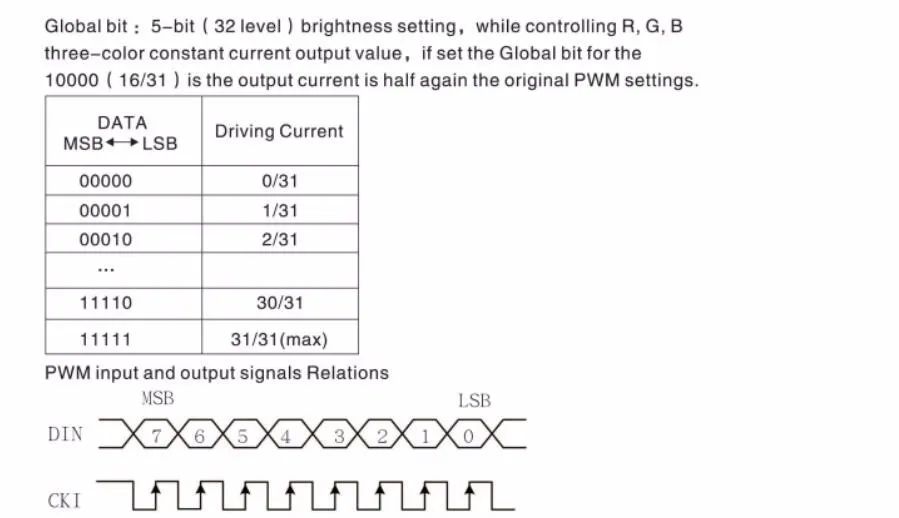

8 bit(256 level) color set ,5bit(32 level) brightness adjustment
Build-20ma constant current output
With self-detection signal build in support for continuous oscillation PWM
output ,can be maintained static screen

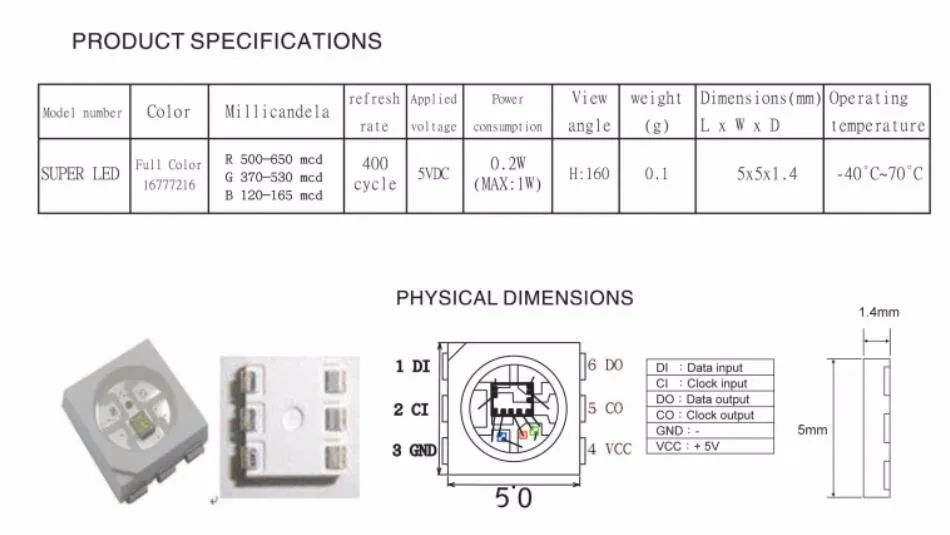

- PRODUCT SPECIFICATIONS
Color wavelength Refresh rate Voltage Power Consumption
Weight (g)
Angle Dimensions (mm)
L*W*H
Operating Temperature
Full color 1677216 R:500-650mcd G:370-530mcd
B:120-165mcd
400 cycle DC5V 0.2W (MAX:1W)
1 160 5x5x1.4 -40-70
Specifications
Package
Packaging Details

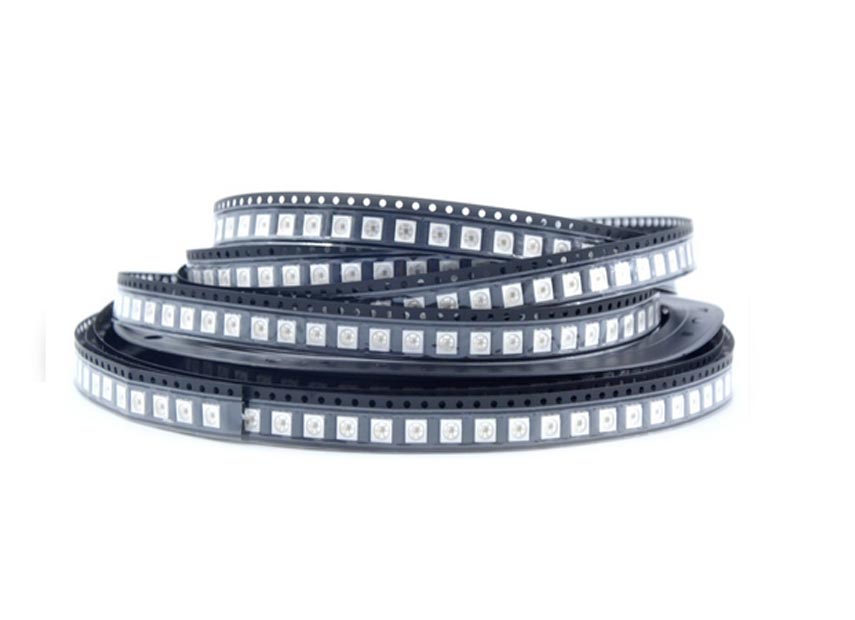

- Unit Type: lot (1000 pieces/lot)
- Package Weight: 0.1kg (0.22lb.)
Notes

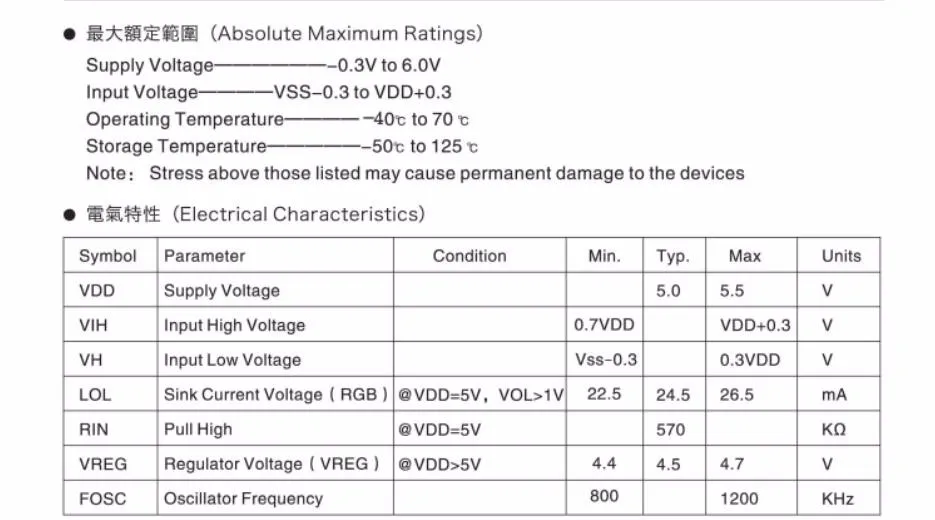

- (Absolute Maximum Rating)
Supply volage ————– -0.3-6.0V
Input voltage—————- VSS-0.3 to VDD +0.3V
Operating temperature—————- -40 to +70
Storage temperature——————- -50 to +125
Note: Stress above those listed may cause permanent damage to the device
